5

En

03

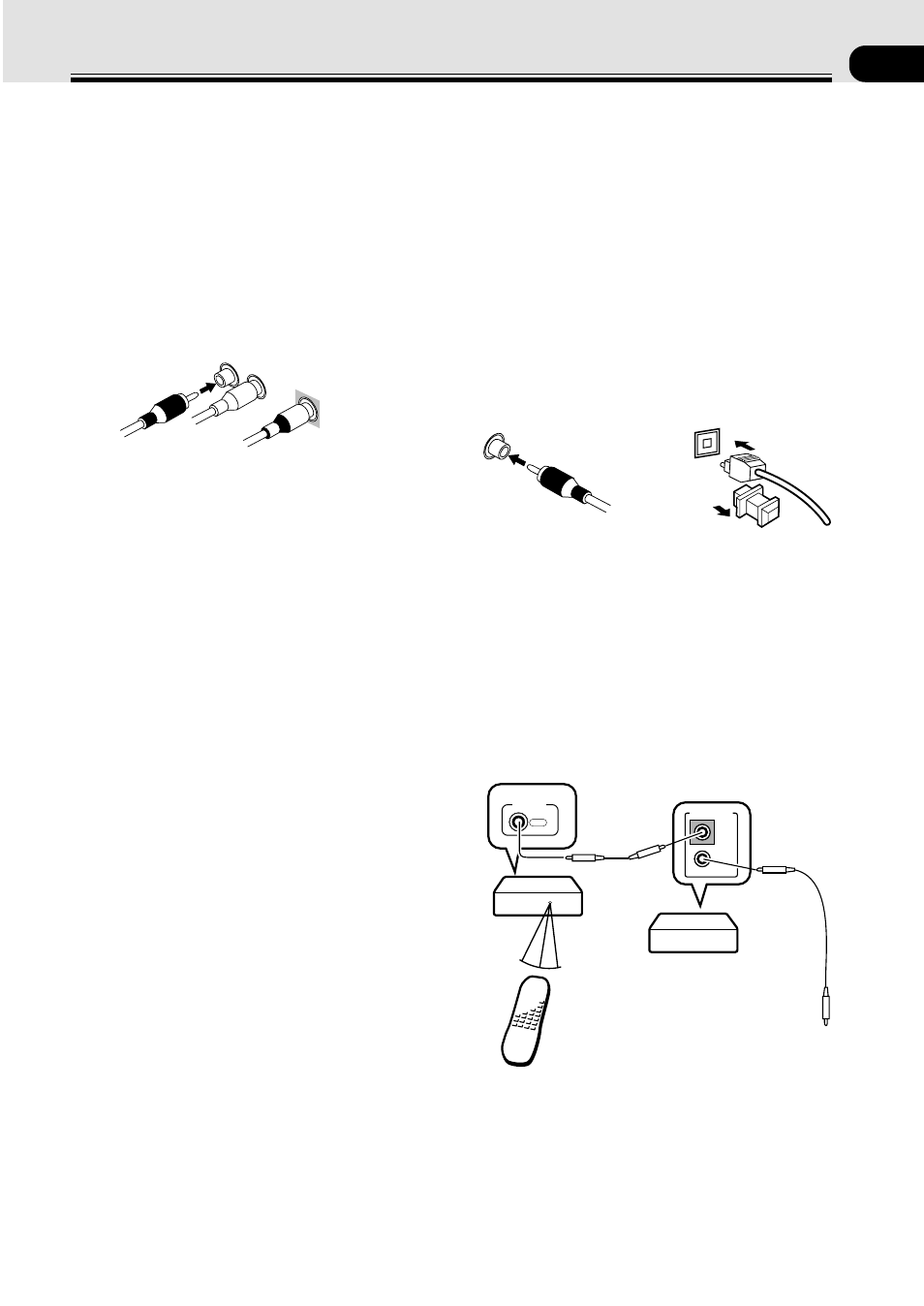

Digital Audio Cords/Optical Cables

Commercially available digital audio coaxial cords
(standard video cords can also be used) or optical cables
(not supplied) are used to connect digital components to
this receiver.
When you use optical digital input or output terminals,
pull off the caps and insert the plugs. Be sure to insert
completely.

Digital audio coaxial cord
(or standard video cord)

Optical cable

Connecting Your Equipment

Audio/Video Cords

Use audio/video cords (not supplied) to connect the
video components and a video cord to connect the
monitor TV.
Connect red plugs to

R

(right), white plugs to

L

(left),

and the yellow plugs to

VIDEO

.

Be sure to insert completely.

L

R

VIDEO

Before making or changing the connections, switch off the power and disconnect the power cord from the AC
outlet.

Connect to CONTROL IN
terminal of other Pioneer
products with

Î mark.

Remote control unit

VSX-D510

CONTROL

OUT

OUT

IN

CONTROL

Other Pioneer products
with

Î mark

Operating Other Pioneer Components

By connecting a control cord (optional), you can control
other Pioneer equipment using this remote control unit.
Point the remote control unit towards the remote sensor
of this unit, even when operating other equipment.

The remote control signals are received by the remote
sensor of this unit, and sent to the other devices via the

CONTROL OUT

terminal.

MEMO:
• When controlling as a system, be sure to make a

connection to the other equipment using an audio or
video cord, even when using only digital
components.

• You can also control Pioneer components by pointing

the receiver's remote control directly at the
component. This type of operation does not require
control cords.
