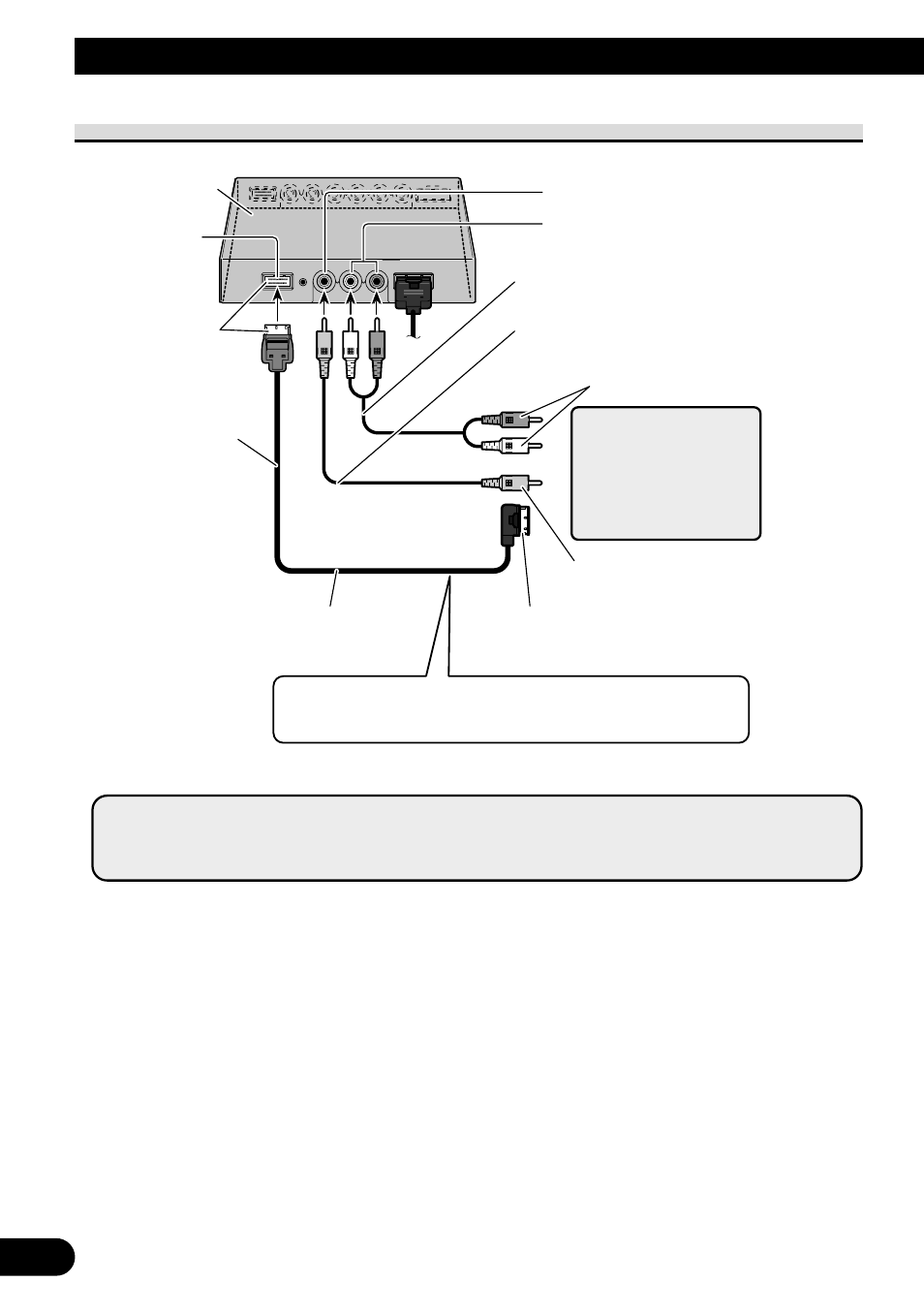

Connecting the System
Connecting the Audio and Video Output
*: Use CD-CP301E 26pin component extension cable for extension (3m).
Hide-away Unit
COMPONENT
Video output
(Blue)
26pin component cable (CD-CP300)
(sold separately)* To component video input (White)
of a second AVD-W1100V
Blue
3 m
RCA video output (Yellow)
RCA audio output (White, Red)
RCA Audio cable (commercially available)
RCA Video cable (commercially available)
To audio input
To video input
Second display, video
deck, etc.
You can connect a second AVD-W1100V with a 26pin
component cable CD-CP300 (sold separately).
Note:
• The signal from COMPONENT video and RCA audio/video is not output when the power of this
product is turned off.
