Connecting the System

Connecting the Power Cable

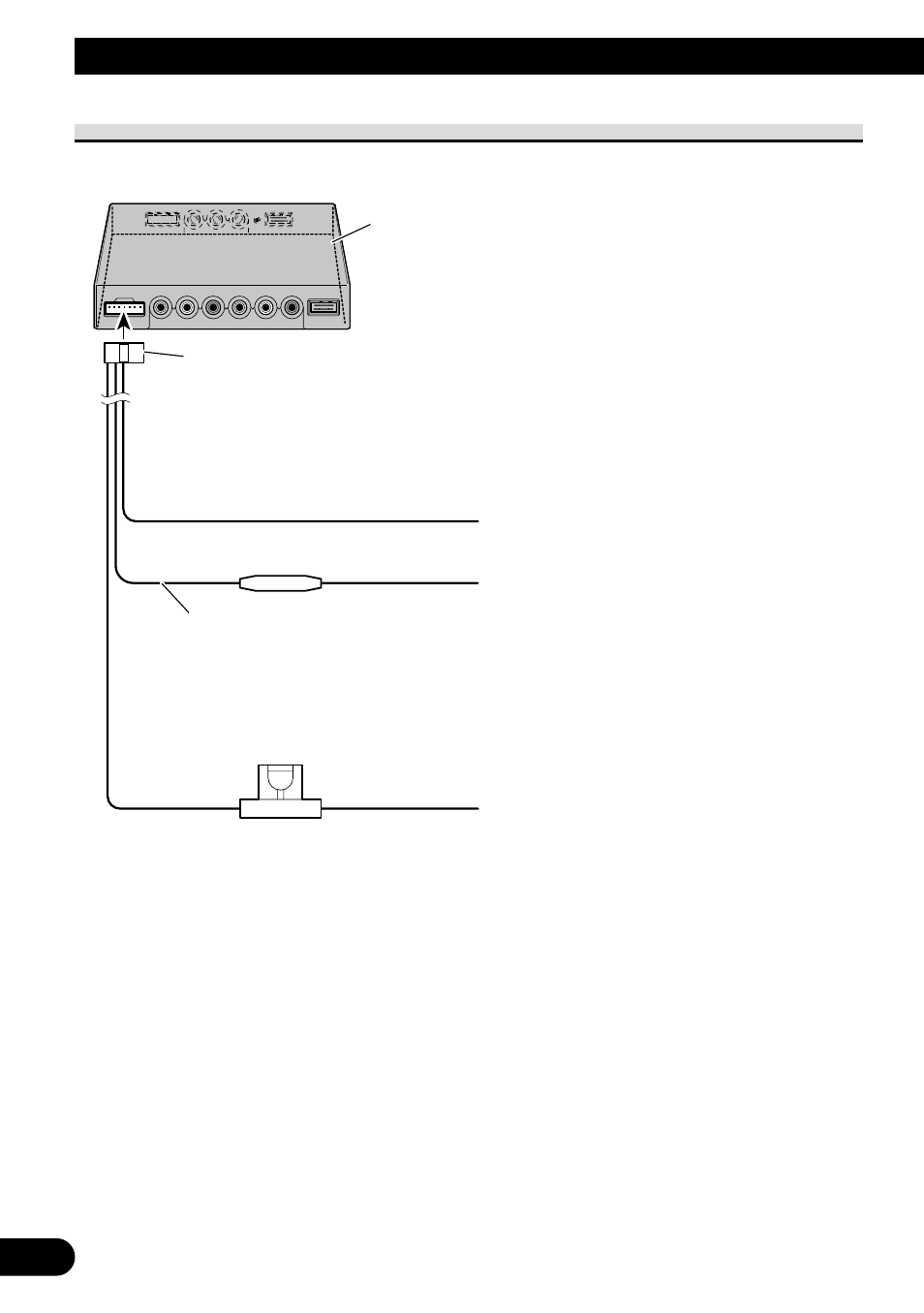

Power cable

Fuse resistor

Hide-away Unit

Yellow
To the terminal always supplied with power regard-
less of ignition switch position.

Red
To the electric terminal controlled by the ignition
switch (12 V DC) ON/OFF.

Do not connect this lead to power source terminals
to which power is continuously supplied. If the lead
is connected to such terminals, the battery may be
drained.

Black (ground)
To vehicle (metal) body.

Fuse holder (4A)

Red/Gray
