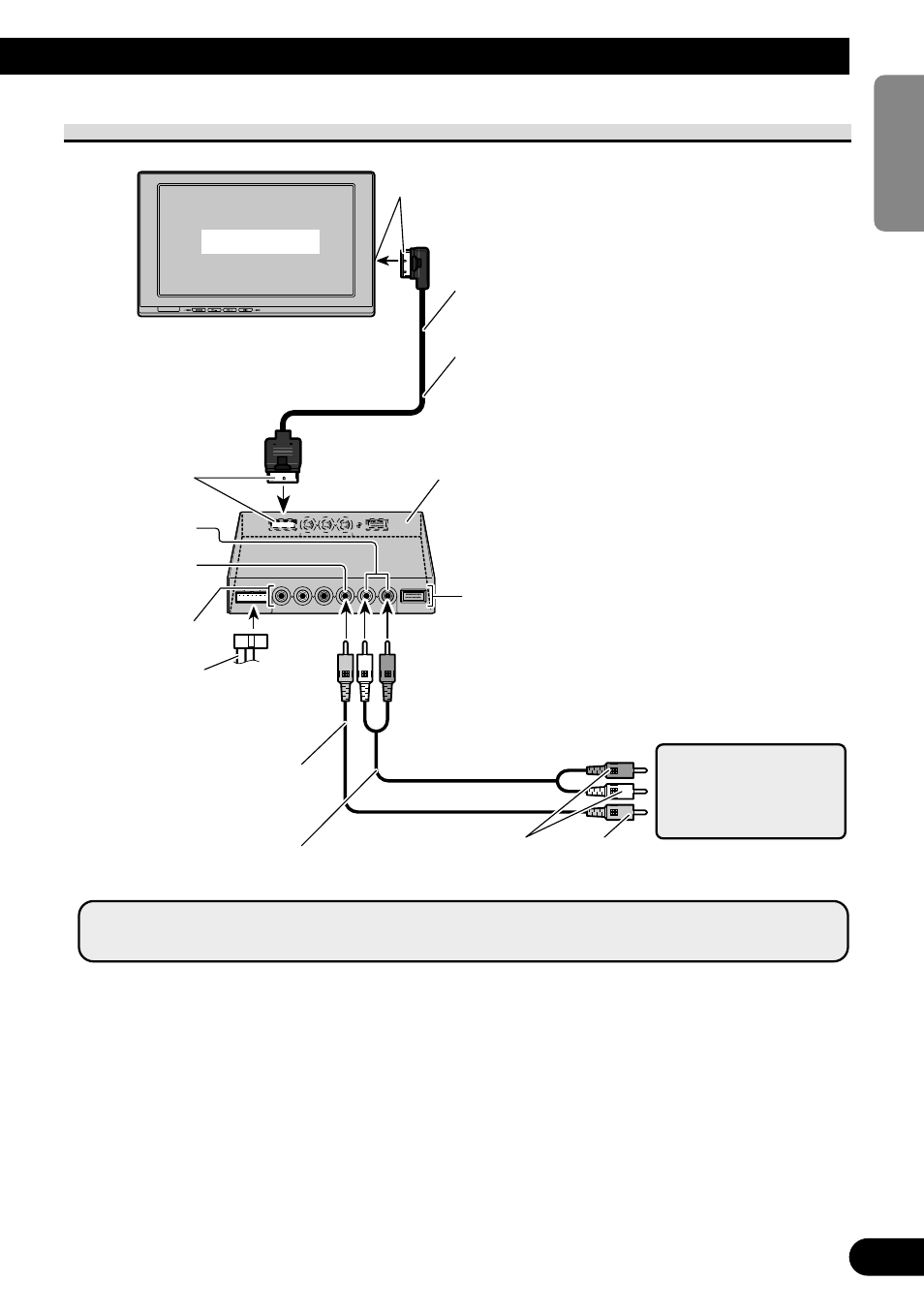

Connection Diagram (VIDEO input)

Display Unit

Note:

• Never install the display in a place where it is visible to the vehicle’s driver.

Pink

Commercially avail-
able portable video
component with RCA
output

To video output

To audio output

VCR1 INPUT

Hide-away Unit

4 m

Display cable

VCR1 RCA audio
input (white, red)
VCR1 RCA video
input (yellow)

RCA Video cable
(commercially available)

VCR2 INPUT

Power cable
(Refer to page 25.)

RCA Audio cable
(commercially available)
