Page 9: Part names 05, Chapter 5
Part names
05
9
En
English
Chapter 5
Part names

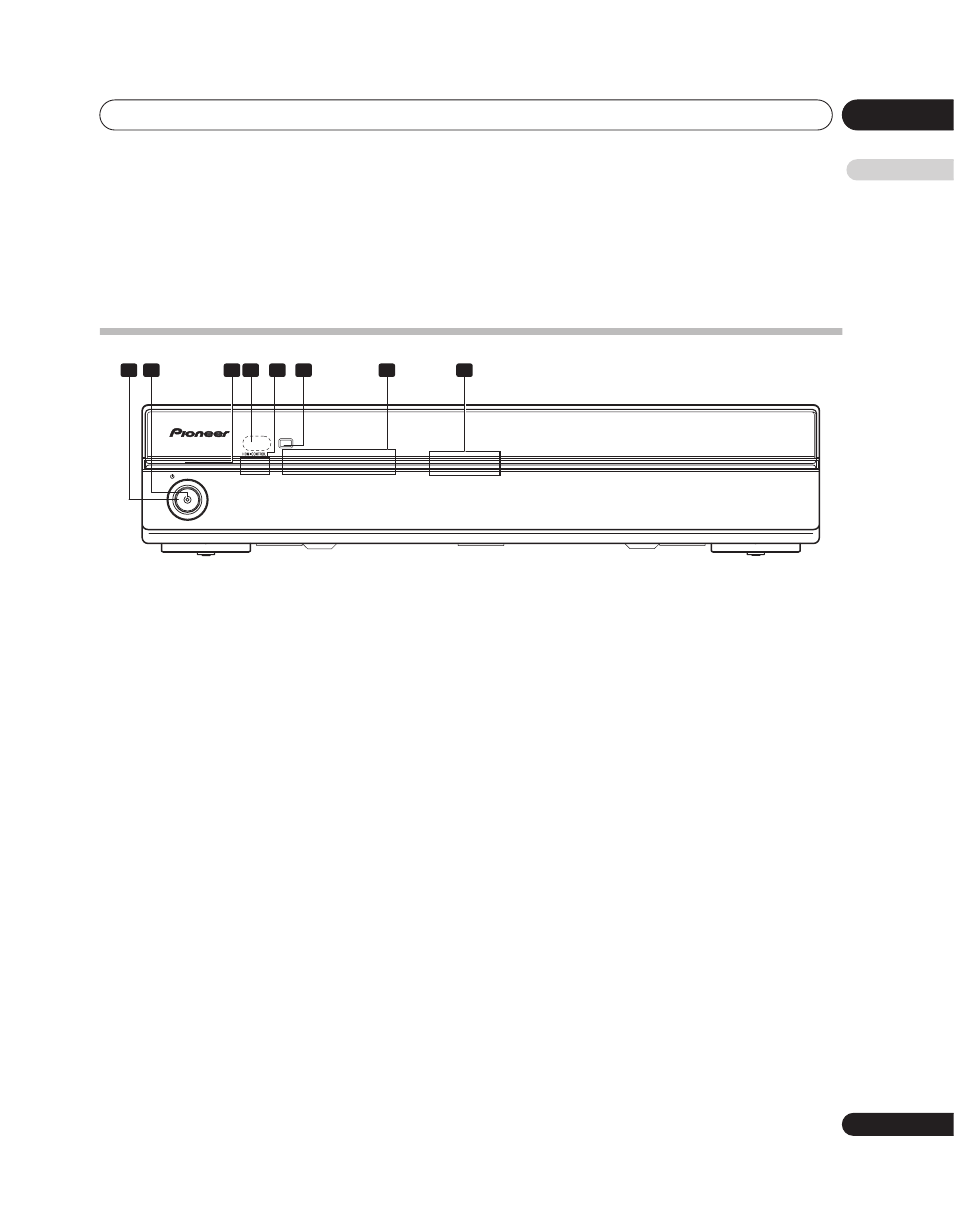

Front
1
STANDBY/ON button
Press to set power to ON/STANDBY.
2
Power ON indicator (blue)
Lights blue when unit power is turned ON.
3
STANDBY indicator (red)
Lights red when unit power is set to STANDBY.
4
Remote control unit sensor
Point the remote control unit at this sensor when
operating.
5
HDMI CONTROL indicators
(Left: orange/ Right: green)
When this unit is connected to a plasma television,
these indicators light under the following conditions:
a. PDP combination mode:
Lights green when
HDMI CONTROL
switch is set to
ON
, and the unit’s connected plasma television can
be operated using the latter’s remote control unit.
(See page 10.)
b. Independent 1 mode:
Lights orange when the
HDMI CONTROL
switch is
set to
ON
. (See page 10.)
c. Independent 2 mode:
Do not light when the
HDMI CONTROL
switch is
stet to
OFF
. (See page 10.)
6
INPUT button
Use to select the unit’s source INPUT 1 to INPUT 6.
7
Input indicators
Notifies user of currently selected input and currently
set mode.
8
Blue illumination
Lights blue when unit power is turned ON. Flashes blue
during setting mode.
PDA-V100HD
STANDBY
STANDBY/ON
1
2
3
4
5
6
INPUT
INPUT
1
2
3 4
5
6
7
8
