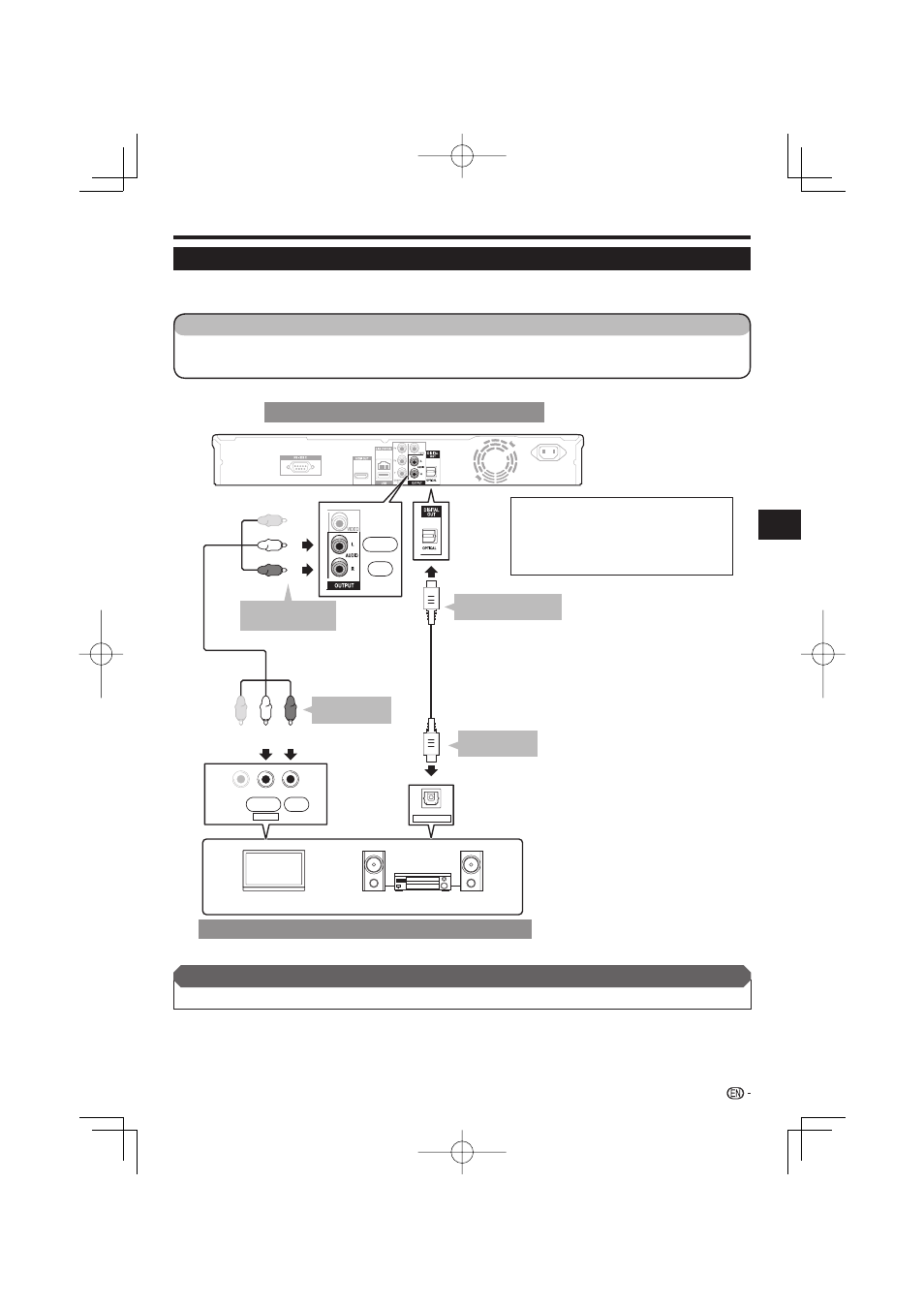

Connecting to the Digital Audio Terminal or Audio Jacks
You can connect audio equipment or the TV to the DIGITAL OUT OPTICAL terminal or AUDIO OUTPUT jacks.
See page 52 for information on the output of next generation audio formats. •
•
USB
BDP-LX53
USB
AC IN
OPTICAL
DIGITAL AUDIO IN
VIDEO L - AUDIO -R
AV INPUT
Rear panel of this Player
Audio equipment with a digital audio input terminal
Connections
19
Connection
STEPS
Be sure to turn off this Player and the equipment before making any connections.
Firmly connect an optical digital cable (commercially available) or AV cable (supplied) to the optical digital
audio terminals or audio jacks (
 and , or  and ).
1
2
After connecting
Load a disc and start playback. (Page 27) •
To DIGITAL OUT
OPTICAL terminal
Optical digital cable
(commercially available)

To OPTICAL
input terminal 
Amplifier
When using OPTICAL output,
5.1 ch Digital Output is available.
7.1 ch Digital Output is not available.
NOTE:
7.1 ch Audio is available via the HDMI terminal.
•
TV
To AUDIO OUTPUT
jacks
To AUDIO input
jacks
(Red)
Video/audio cable
(supplied)

(White)

(White) (Red)
Red
White
Red White
