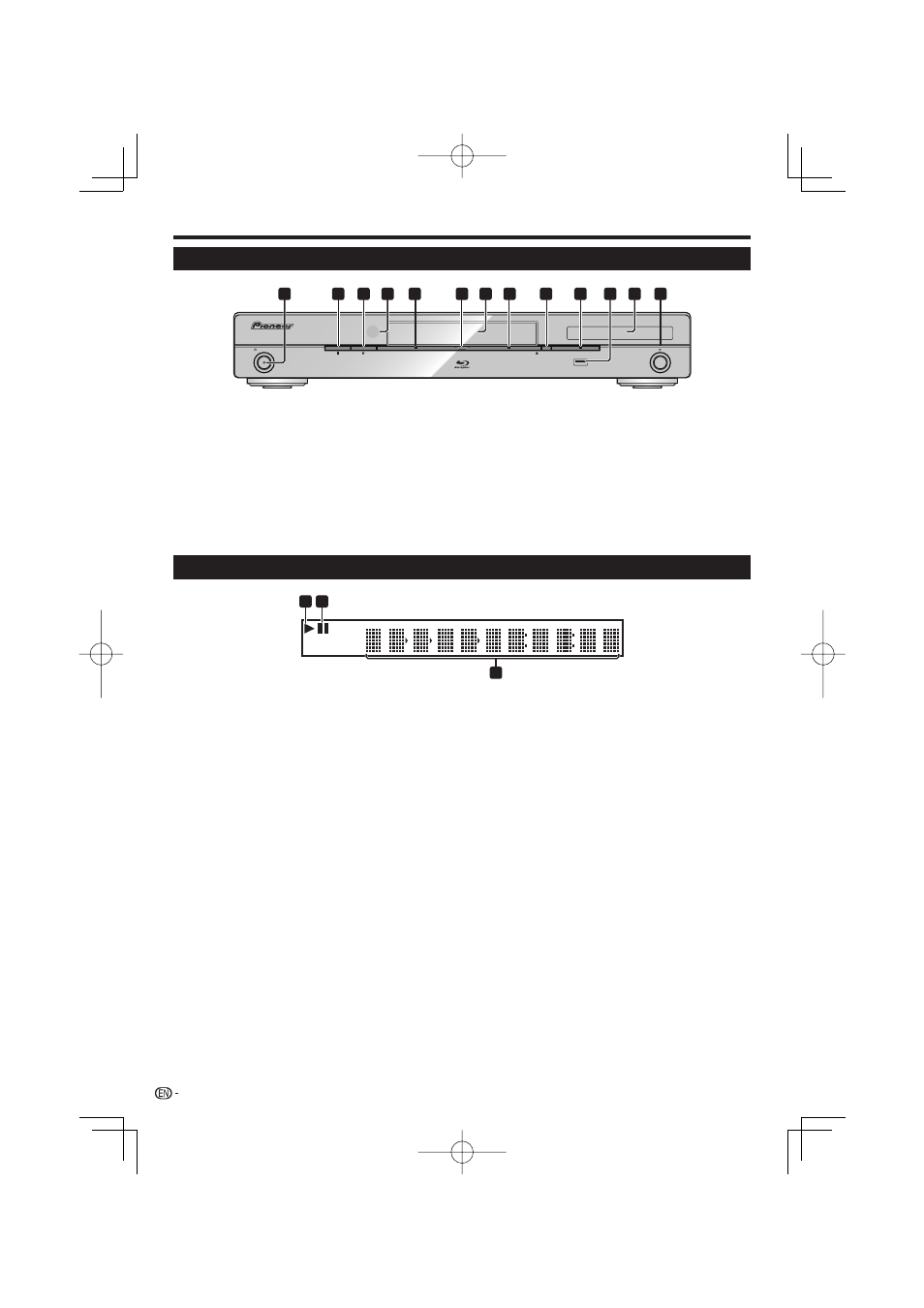

Main Unit (Front)
STANDBY/ON
PQLS
USB
FL OFF
HDMI
OPEN/CLOSE
4
6
11
5
12
10
13
3
7
8
2
1
9
Front Panel Display
Lights during playback.
Lights when in the pause mode.
1
2
Counter display
Displays the title, chapter, track number,
elapsed time, etc.
3
1
3
6
2
Names and Functions of Parts
12
STANDBY/ON(page 22)
The indicator lights when the power is on.
(BDP-LX53 only)
(STOP) (page 27)
(PAUSE) (page 36)
Remote control sensor (page 21)
PQLS indicator (page 25)
Blu-ray indicator
Lights when the power is on.
1
2
3
4
5
6
Disc tray (page 27)
HDMI indicator (page 25)
OPEN/CLOSE (page 27)
FL OFF indicator (page 24)
USB port (pages 20 and 48)
(BDP-LX53/BDP-330 only)
Front panel display (See below.)
(PLAY) (page 27)
7
8
9
10
11
12
13
