USB
BDP-LX53
USB
AC IN

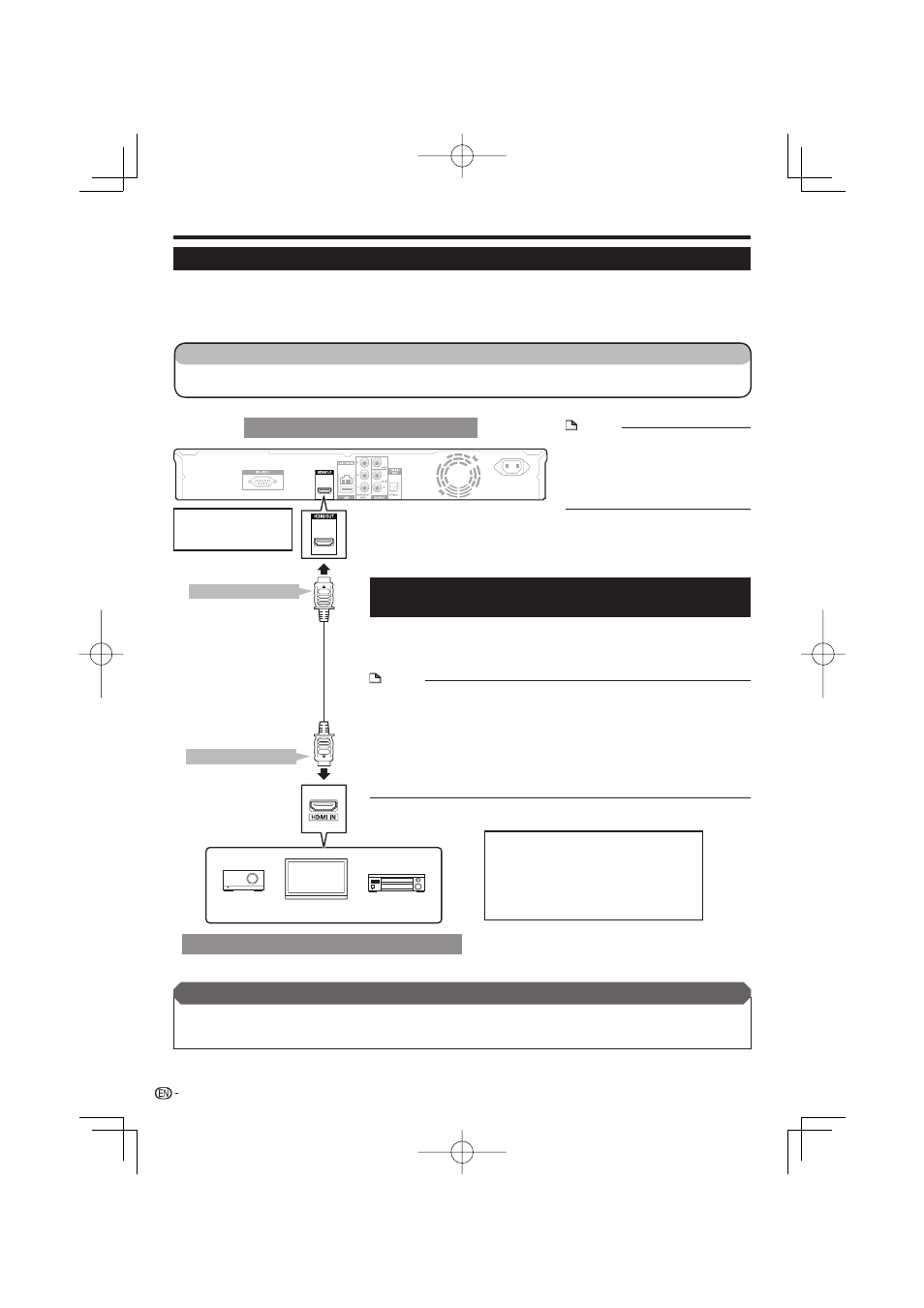

Connecting to the HDMI Terminal
You can enjoy high quality digital picture and sound through the HDMI terminal.
See page 42 for information on the output of next generation audio formats.
Use High Speed HDMI
® Cables when using the control function with HDMI. The control function with HDMI may
not operate properly if other HDMI cables are used.
•
•
•
Rear panel of this Player
Equipment with an HDMI terminal
NOTE
Audio transmitted in DTS-HD High
Resolution Audio and DTS-HD Master
Audio formats is output from the
HDMI terminal as Bitstream. Connect
an amplifier with a built-in decoder to
enjoy the fine sound quality. •
Selecting the priority video output when connecting
HDMI and Component video
When you connect both an HDMI cable and a component cable to this
player, you need to select the priority video output in “Settings” – “Audio
Video Settings” – “Video Out Select”. (See page 42.)
NOTE
When you connect the player to a Pioneer TV with an HDMI cable only and the TV
is turned on, the video output switches to HDMI automatically. (The above setting
is unnecessary.)
When you connect the player to a TV with an HDMI cable, “HDMI Video Out” is set
to “Auto”. If you don’t get a stable image, select the desired resolution.
When you set “HDMI Video Out” to a setting other than “Auto”, you can only
select resolutions that are compatible with the connected TV.
Refer to “HDMI Video Out” on page 42 regarding the resolutions of the HDMI
video output. •
•
•
Connections
16
When using an HDMI
output, 7.1 ch Digital
Output is available. •
HDMI cable
(commercially available)


To HDMI OUT terminal
To HDMI IN terminal
TV Projector AV receiver
STEPS
Be sure to turn off this Player and the equipment before making any connections.
Firmly connect an HDMI cable (commercially available) to the HDMI terminals (
 and ).
1
2
After connecting
If desired, connect audio equipment. (Page 19)
Load a disc and start playback. (Page 27)
Refer to control function with HDMI. (Pages 25 and 43) •
•
•
Video signal outputs:
1080p 24 Hz 720p 50 Hz/60 Hz
1080p 50 Hz/60 Hz 576p 50 Hz
1080i 50 Hz/60 Hz 480p 60 Hz
For example;
1080p: 1080 progressive scan
1080i: 1080 interlace scan
