Pioneer BDP-LX53 - Manual (Page 17)

USB
BDP-LX53
USB
AC IN
(CR)
(CB)

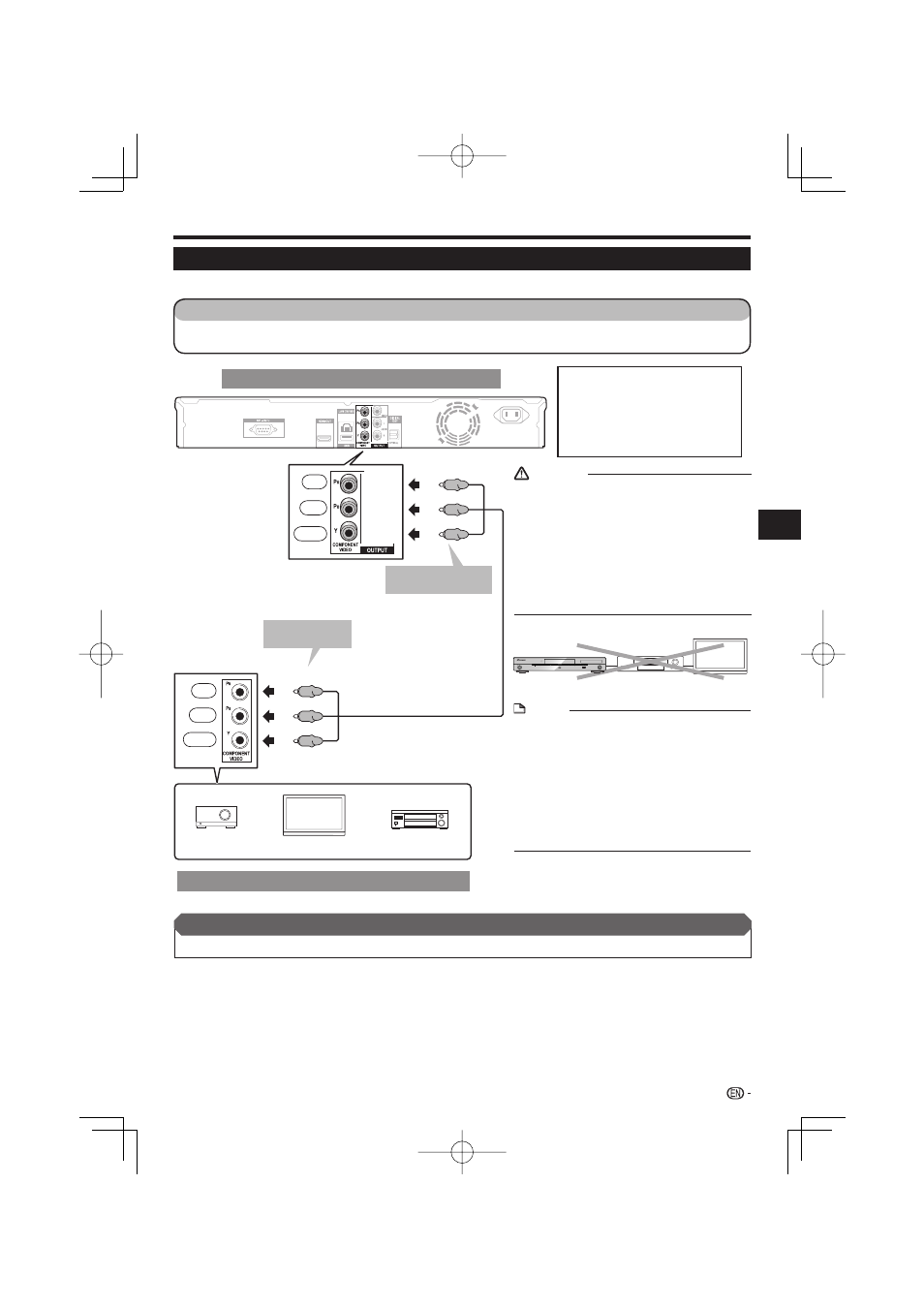

Connecting to the Component Jacks
You can enjoy accurate color reproduction and high quality images through the component jacks.
Rear panel of this Player
STANDBY/ON PQLS USB FL OFF HDMI OPEN/CLOSE
Video equipment with component jacks
NOTE
Connect the Blu-ray disc player to TV
directly.
When you record the program where copyright
is protected, the copy guard function is activated
automatically; the program can not be recorded
correctly. Also, the playback image via VCR may
deteriorate due to this function. However, this is
not a malfunction. When you watch the program
where copyright is protected, we recommend
that the Blu-ray disc player be connected to TV
directly. •
•
CAUTION
You need to select the priority video output in
“Settings” – “Audio Video Settings” – “Video Out
Select”. (See page 42.)
When the priority video output is set to “HDMI” in
“Video Out Select”, the video resolution which is
output from the COMPONENT VIDEO OUTPUT
jacks is the one set in “HDMI Video Out”. (See
page 42.)
When the output from the COMPONENT VIDEO
OUTPUT jacks is prioritized, set the priority video
to “Component”. •
•
•
Connections
17
Connection
TV Projector AV receiver
To COMPONENT
VIDEO OUTPUT jacks
VCR This Player TV
(Red)
(Blue)
(Green)
(Red)
(Blue)
(Green)
Component video cable
(commercially available)

 To COMPONENT
VIDEO input jacks
STEPS
Be sure to turn off this Player and the equipment before making any connections.
Firmly connect a component video cable (commercially available) to the component jacks (
 and ).
1
2
After connecting
Connect audio equipment or the audio terminals of the TV. (Page 19) •
Red
Blue
Green
Red
Blue
Green
Video signal outputs:
1080i 50 Hz/60 Hz 576i 50 Hz
720p 50 Hz/60 Hz 480p 60 Hz
576p 50 Hz
480i 60 Hz
For example;
480p: 480 progressive scan
480i: 480 interlace scan
