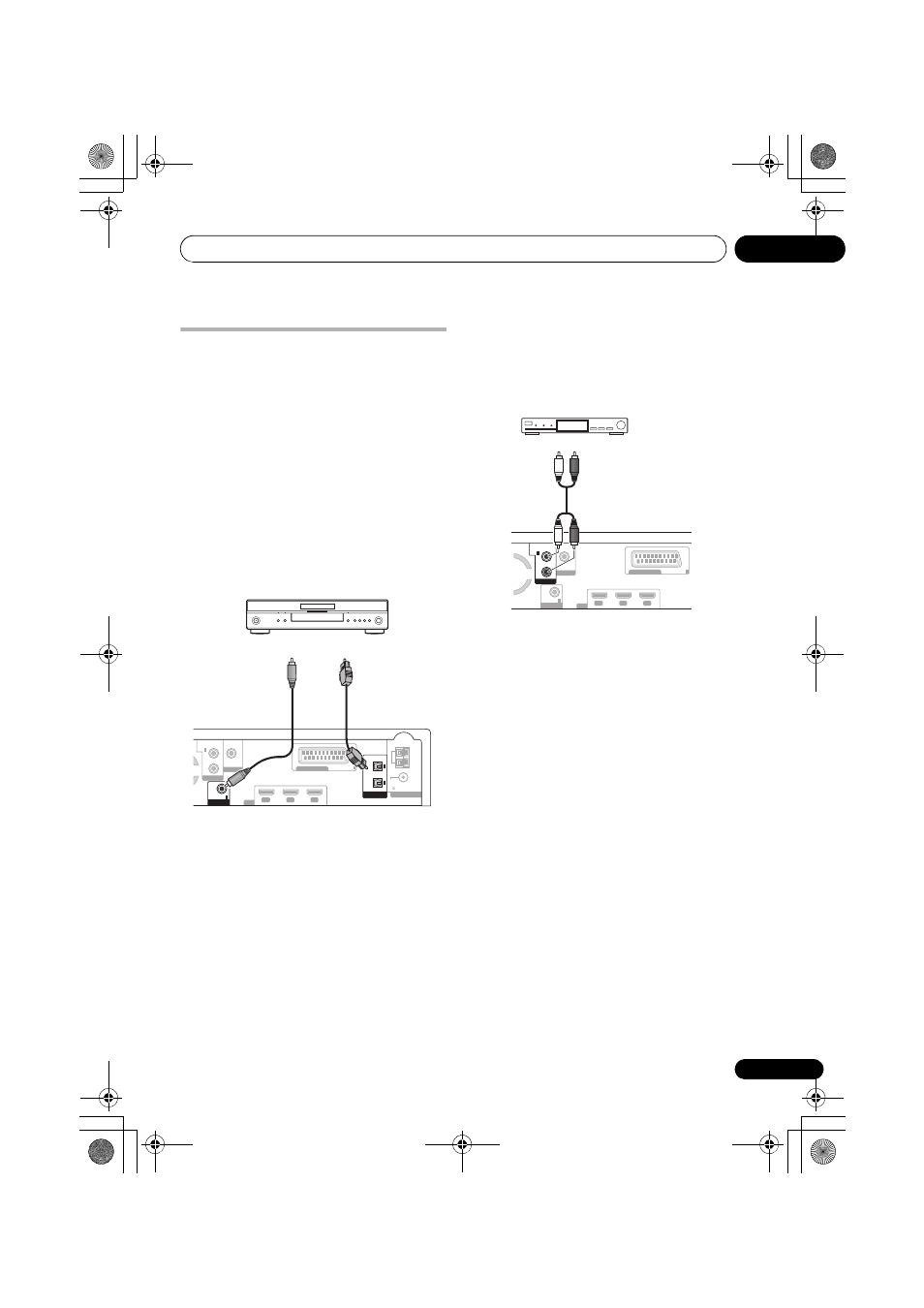

Connecting auxiliary
components
You can connect both analog and digital
external audio sources to this system. Digital
audio sources include digital satellite
receivers, CD recorders, etc.
We recommend using an HDMI cable to
connect sources that have HDMI terminals.
For more information see Connecting using
HDMI on page 62.
Connecting for digital audio
This system has several digital inputs for digital
playback components, such as your MD or CD
recorder.
• Connect the digital output jack on CD
recorder, etc. to one of the DIGITAL input
jacks on this unit.
Use a commercially available optical cable or
coaxial cable to make this connection.
These include digital components such as an
MD player, digital satellite, or a game system.
• When digital connections are used, it may be
necessary to adjust the digital audio output
settings on the connected component. For
details, consult the operating instructions for
the component involved.
Connecting an analog audio
component
You can use the ANALOG AUDIO IN jacks to
connect an analog audio component, such as
a tape player.
