3 What’s What
13

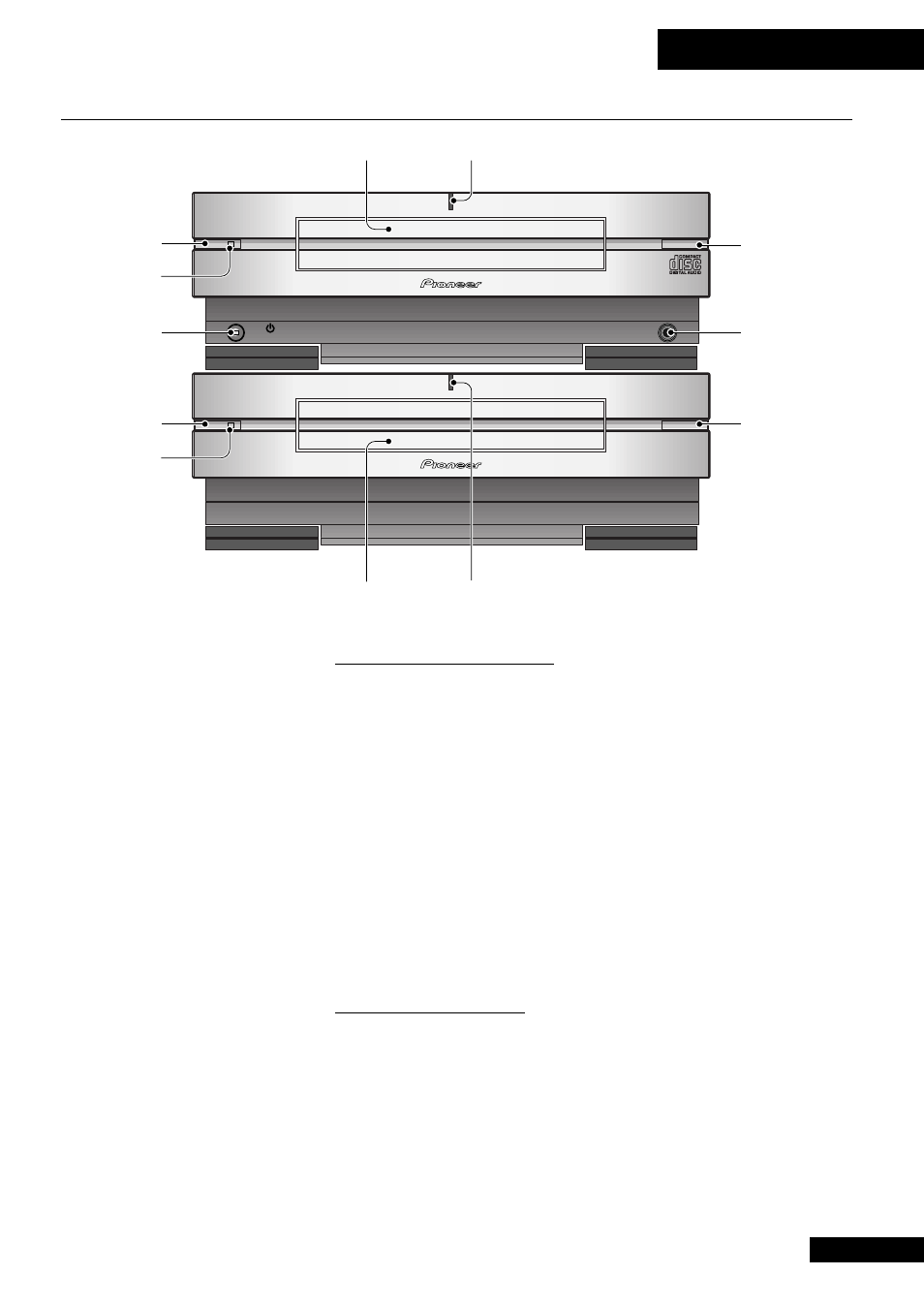

Front Panel
CD Receiver
1 CD tray
2 Power light – Lights when the unit is switched on.
3
^ button – Press to play a disc, or pause a disc that’s already playing
(press again to restart playback).
4
) button – Press to open or close the CD tray.
5 Play light – Lights when a CD is playing
6 Standby/On button – Press to switch the unit between standby and on
modes. Indicator lights in standby mode. Note: this unit consumes a small
amount of electricity in standby mode (1W).
7 Phones socket – Connect a pair of headphones for private listening.
When plugged in, the speakers are automatically switched off.
Tape deck
8
@# button – Press to play a tape in the current direction, or reverse the
direction of a tape that’s already playing.
9
) button – Press to open or close the cassette tape tray.
10 Play light – Lights when a tape is playing
11 Cassette tape tray
12 Power light – Lights when the unit is switched on.
@# )
^ )
STANDBY/ON
PHONES
!
1 2
3 4
5
6
10
9 8
7
11 12
