STANDARD – Press for Standard decoding and to
switch various modes (
2 Pro Logic, Neo:6, etc.)
(page 47).
ADV SURR – Use to switch between the various
surround modes (page 48).
THX – Press to select a Home THX listening mode
(page 48).
PHASE CTRL – Press to switch on/off Phase Control
(page 50).
STATUS – Press to check selected receiver settings
(page 59).
PQLS – Press to select the PQLS setting (page 53).
HDMI OUT – Switch the HDMI output terminal
(page 59).
SIGNAL SEL – Use to select an input signal (page 50).
MCACC – Press to switch between MCACC presets
(page 50).
SLEEP – Use to put the receiver in sleep mode and
select the amount of time before sleep (page 58).
CH LEVEL – Press repeatedly to select a channel,
then use
/ to adjust the level (page 79).
A.ATT – Attenuates (lowers) the level of an analog
input signal to prevent distortion (page 58).
DIMMER – Dims or brightens the display (page 58).
9 MULTI-ZONE select buttons
Switch to perform operations in ZONE 2 and ZONE 3
(page 58).
10 Remote control LED
Lights when a command is sent from the remote control
(page 61).
11
Switches the remote to control the receiver (used to
select the white commands).
Switch to perform operations in the main zone.
Also use this button to set up surround sound.
12 MASTER VOLUME +/–
Use to set the listening volume.
13 MUTE
Mutes the sound or restores the sound if it has been
muted (adjusting the volume also restores the sound).
14
Press to turn on/off the illumination for the buttons. The
way the buttons light can be selected from four modes
(page 63).

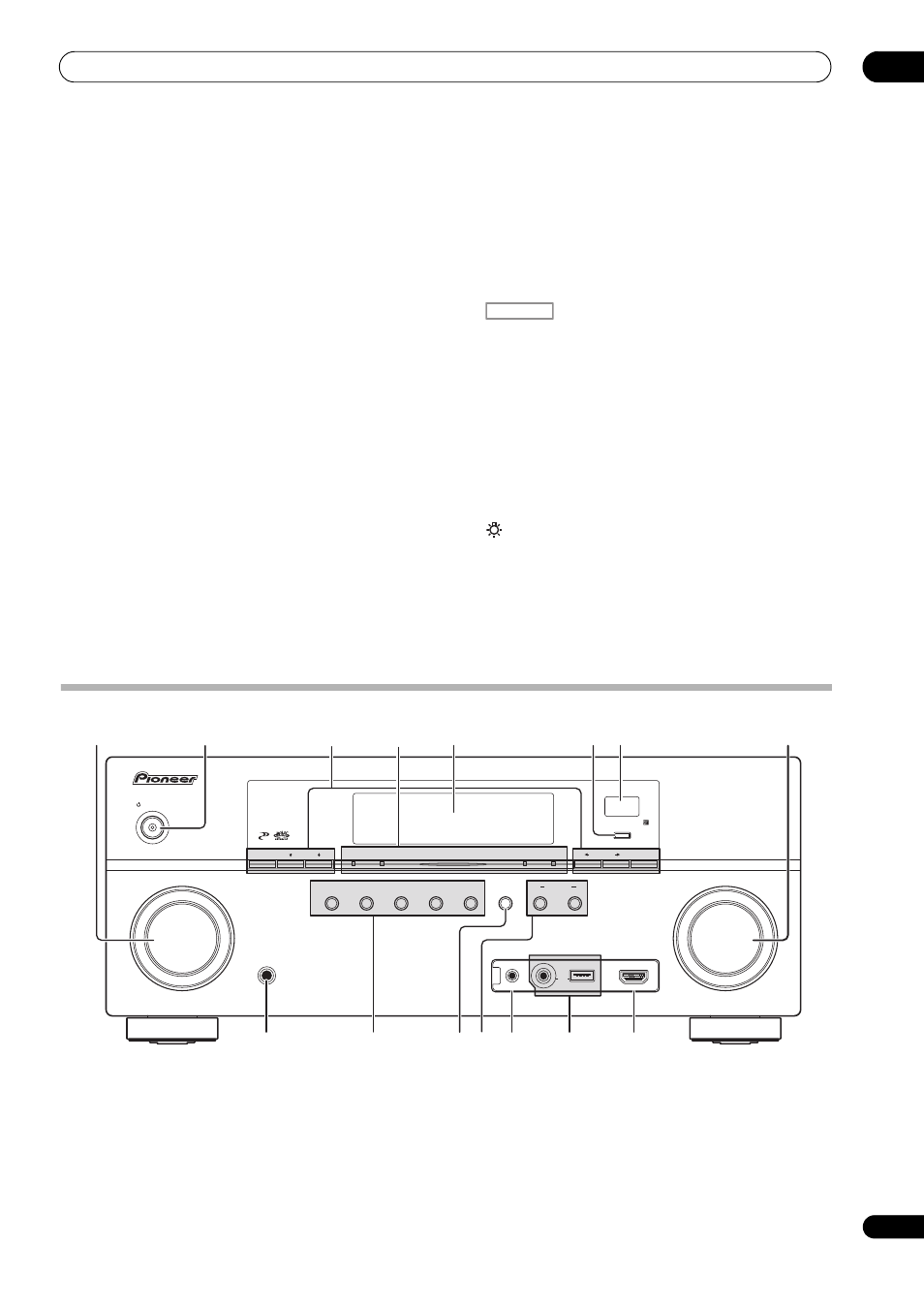

Front panel
1 INPUT SELECTOR dial
Use to select an input function.
2  STANDBY/ON
Switches the receiver between on and standby.
3 Tuner controls
BAND – Switches between the AM and FM radio
bands (page 42).
TUNE
/ – Use to find radio frequencies (page 45).
PRESET
/ – Use to find preset stations (page 42).
TUNER EDIT – Use with TUNE
/, PRESET /
and ENTER to memorize and name stations for recall
(page 42).
RECEIVER
MASTER
VOLUME INPUT
SELECTOR
STANDBY/ON
VSX-LX53
PHONES
BAND TUNE PQLS
AUTO SURR /ALC/
STREAM DIRECT
ADVANCED
SURROUND
STANDARD
SURROUND
MCACC SETUP MIC
STEREO SPEAKERS HOME THX
USB
CONTROL
MULTI-ZONE
ON / OFF
ADVANCED
MCACC
iPod
iPhone HDMI PRESET TUNER EDIT
ENTER
iPod
iPhone
VIDEO CAMERA
HDMI 5
1 2 3 4 5
9 10 14 12 11 13 15
7 8 6
