Chapter 2:
Controls and displays

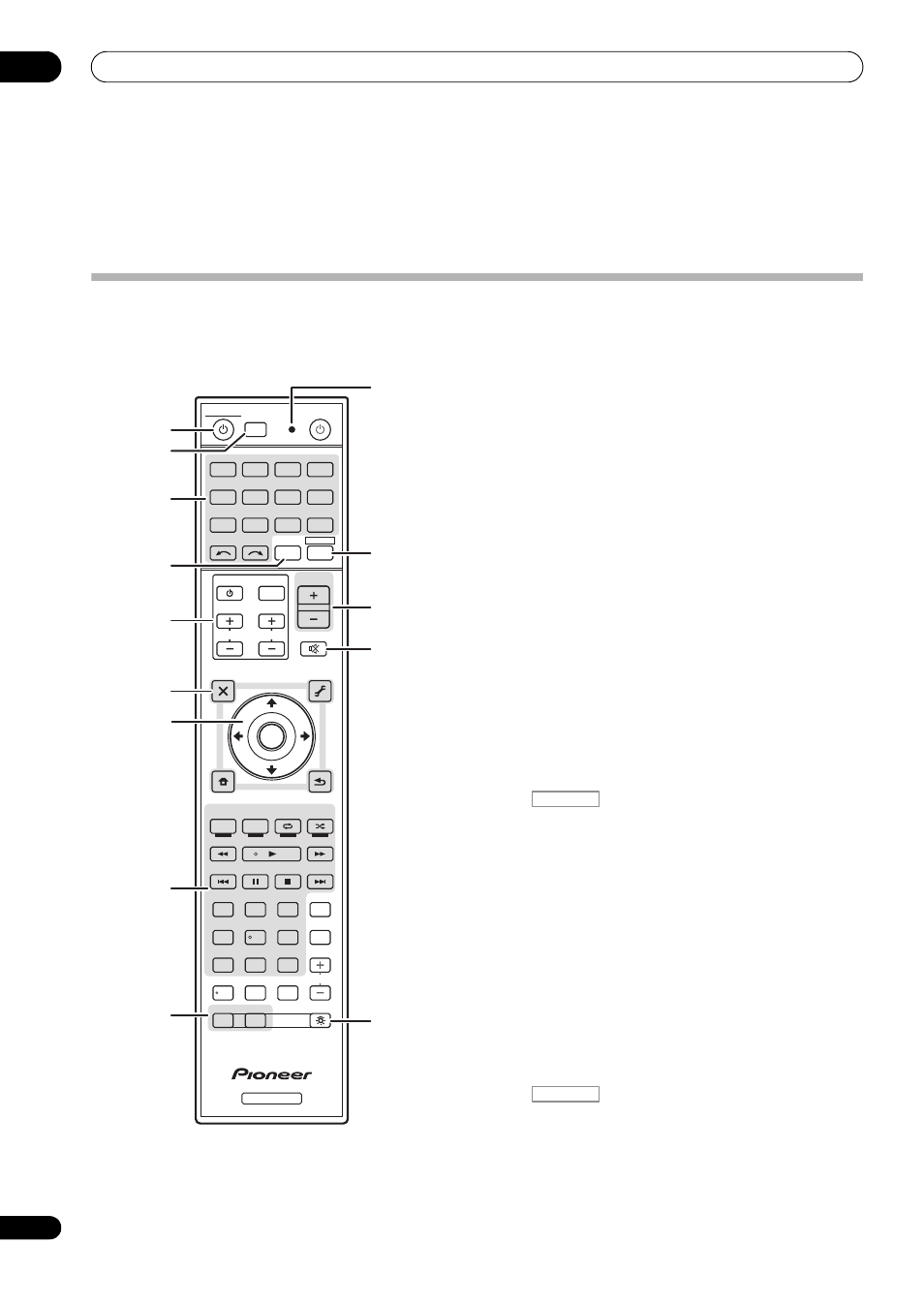

Remote control
This section explains how to operate the remote control
for the receiver.
The remote has been conveniently color-coded according
to component control using the following system:
•
White – Receiver control, TV control
•
Blue – Other controls (See page 38, 39, 42, 43, 45 and
65.)
1
RECEIVER
This switches between standby and on for this receiver.
2
MULTI OPERATION – Use to perform multi
operations (page 63).
R.SETUP – Use to input the preset code when making
remote control settings and to set the remote control
mode (page 61).
3
Input function buttons
Press to select control of other components (page 61).
Use
INPUT SELECT to select the input function (page 38).
4
TV CTRL
Set the preset code of your TV’s manufacturer when
controlling the TV (page 61).
5
TV CONTROL buttons
These buttons are dedicated to control the TV assigned to
the
TV CTRL button.
6
Receiver setting buttons
Press
first to access:
AUDIO PARAMETER – Use to access the Audio
options (page 54).
VIDEO PARAMETER – Use to access the Video
options (page 56).
HOME MENU – Use to access the Home Menu
(pages 34, 36, 51, 68, 77 and 80).
RETURN – Press to confirm and exit the current
menu screen.
7
////ENTER
Use the arrow buttons when setting up your surround
sound system (see page 68) and the Audio or Video
options (page 54 or 56).
8
Receiver Control buttons
Press
first to access:
AUTO/ALC/DIRECT – Switches between Auto
Surround (page 47), Auto Level Control mode and
Stream Direct mode (page 49).
STEREO – Switches between stereo playback and
Front Stage Surround Advance modes (page 49).
RECEIVER
ZONE 2
ZONE 3
LIGHT
AUTO / ALC /
DIRECT
D.ACCESS
CH LEVEL A.ATT
DIMMER
SIGNAL SEL MCACC
SLEEP
HDMI OUT
TV / DTV
MPX
PQLS
PHASE CTRL
STATUS
THX
PGM
STEREO
iPod CTRL
HOME
MENU
TUNE
TUNE TOOLS
LIST
CH
TV CONTROL
INPUT
INPUT SELECT
TV CTRL
iPod USB TUNER
VIDEO
CD-R
ADAPTER
NET RADIO
CD
TV
BD
DVD
R.SETUP
SOURCE
RECEIVER MULTI
OPERATION
DVR/BDR
HDMI
RECEIVER
MUTE
MASTER
VOLUME
VOL
PRESET
TOP MENU
BAND
GUIDE
T.EDIT
VIDEO
PARAMETER
AUDIO
PARAMETER
ENTER
PRESET
RETURN
PTY
SEARCH
MEMORY
STANDARD
MENU
ADV SURR
AUDIO
INFO
CLASS
ENTER
DISP
HDD
DVD
5
4
6
8
0
7
9
2
1
3
/ CLR
CH
1
2
3
4
8
9
5
6
7
10
11
12
13
14
