Pioneer DEH-P80MP - Manual (Page 9)

8
ENGLISH
ESPAÑOL
DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
ENG/MASTER 96 INST
9
≠
+
≠
+
+
≠
+
≠
≠
+
≠
+

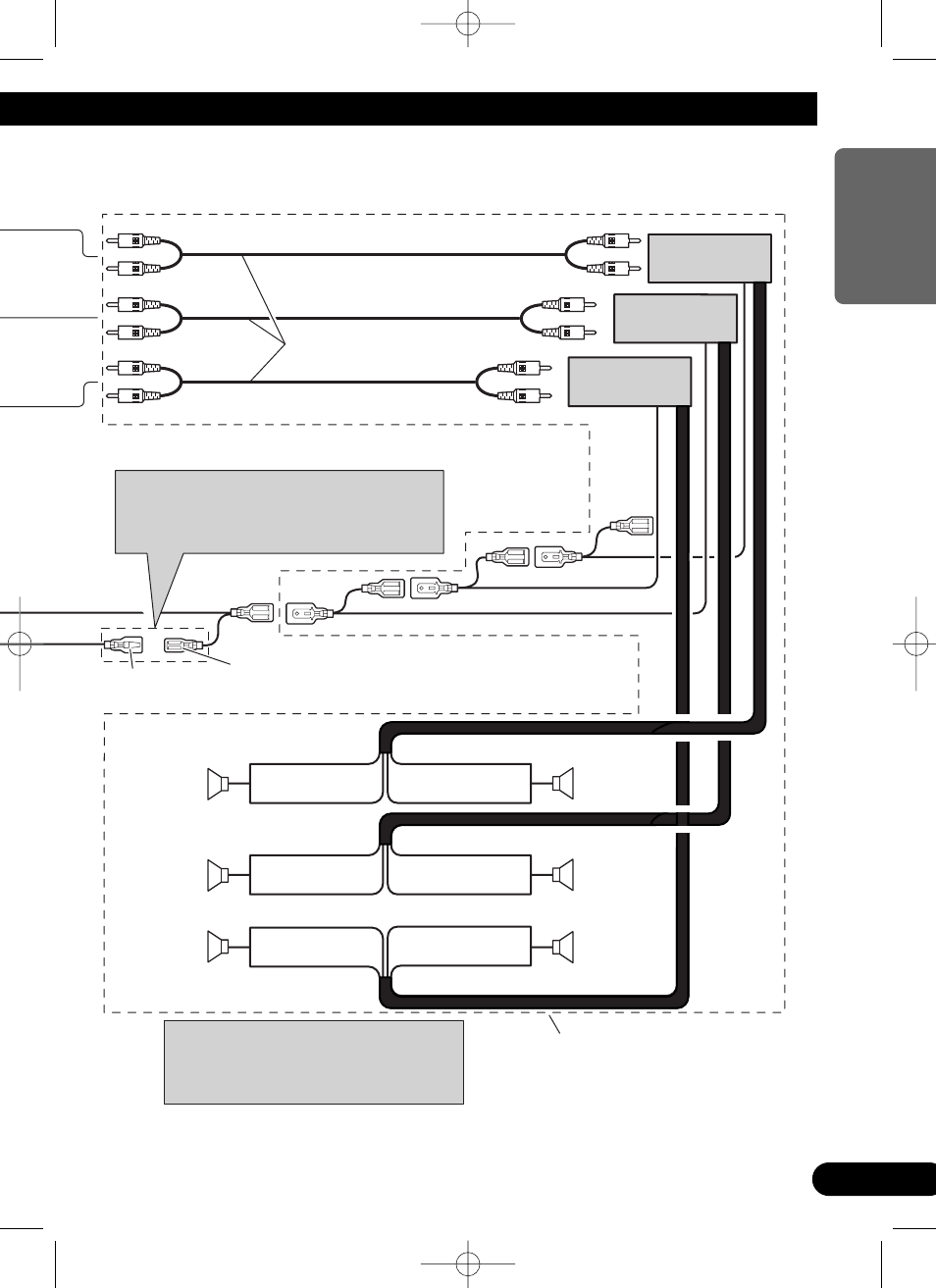

Perform these connections when using the
optional amplifier.
Blue/white (7*)
To Auto-antenna relay control terminal
(max. 300 mA 12 V DC).
Blue/white (6*)
Connecting cords
with RCA pin plugs
(sold separately)
System remote control
Power amp
(sold separately)
Rear speaker
Subwoofer Subwoofer
Rear speaker
Front speaker Front speaker
Power amp
(sold separately)
Power amp
(sold separately)
Left Right
The pin position of the ISO connector will differ
depends on the type of vehicle. Connect 6* and
7* when Pin 5 is an antenna control type. In
another type of vehicle, never connect 6* and 7*.
Note:
Change the initial setting of this unit (refer
to the Operation Manual). The subwoofer
output of this unit is monaural.
Fig. 5
CRD3843A.Eng 1/23/04 18:41 Page 9
