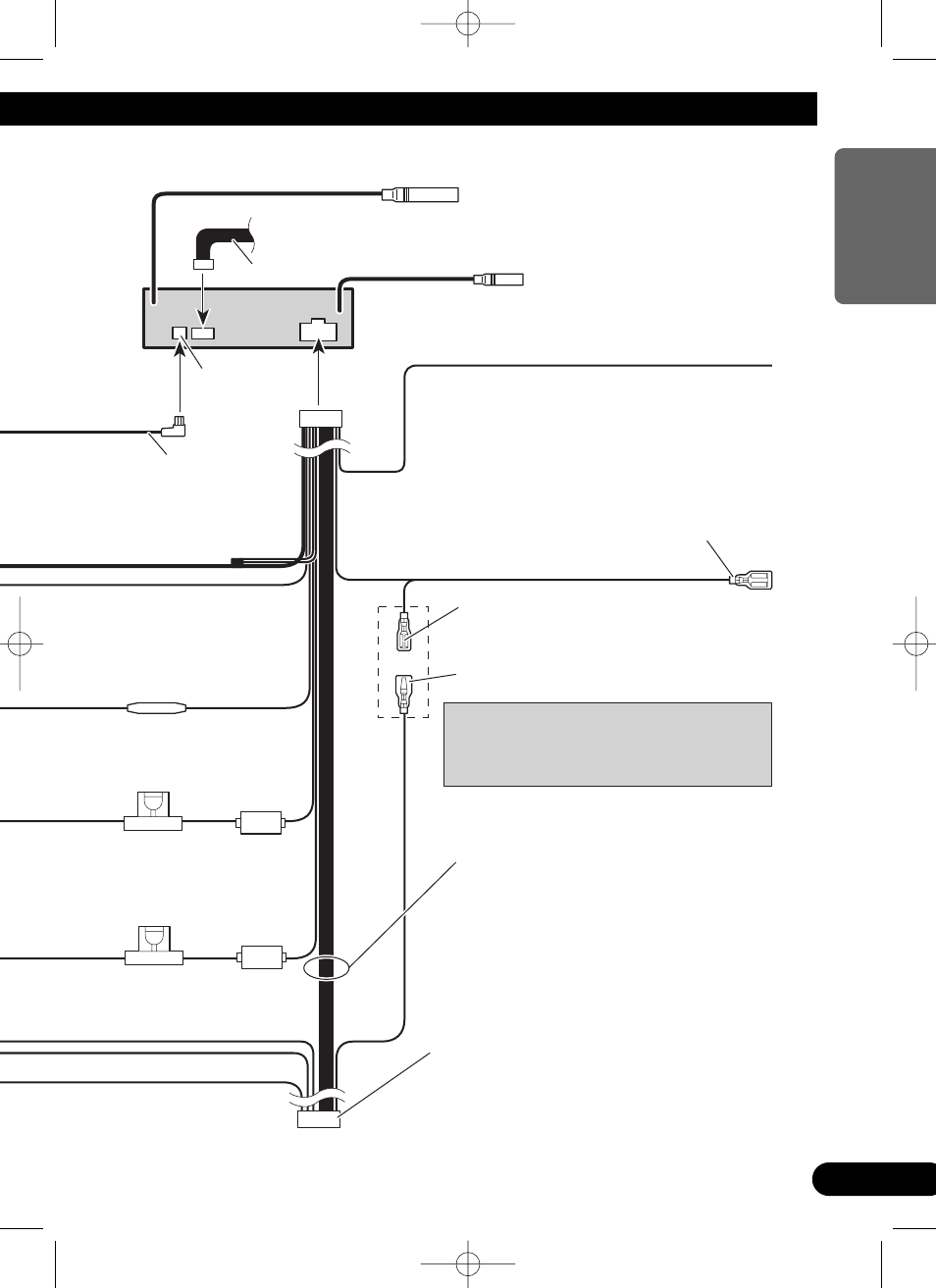

IP-BUS input
(Blue)
ISO connector
Note:
In some vehicles, the ISO connector may be
divided into two. In this case, be sure to connect
to both connectors.
Yellow/black
If you use a cellular telephone, connect it via the
Audio Mute lead on the cellular telephone. If not,
keep the Audio Mute lead free of any connections.
Speaker leads
White
: Front left +
White/black : Front left ≠
Gray : Front right +
Gray/black : Front right ≠
Green : Rear left + or Subwoofer +
Green/black : Rear left ≠ or Subwoofer ≠
Violet : Rear right + or Subwoofer +
Violet/black : Rear right ≠ or Subwoofer ≠
Blue/white (7*)
To Auto-antenna relay control terminal
(max. 300 mA 12 V DC).
Blue/white (6*)
Blue/white
To system control terminal of the
power amp (max. 300 mA 12 V DC).
IP-BUS cable
Antenna jack
Refer to page 7 - 8.
This product
15 cm
Fuse resistor
Fuse holder
Fuse holder
The pin position of the ISO connector will differ
depends on the type of vehicle. Connect 6* and
7* when Pin 5 is an antenna control type. In
another type of vehicle, never connect 6* and 7*.
Jack for Wired Remote Control
Please see the Instruction Manual for the
Wired Remote Control (sold separately).
15 cm
4
ENGLISH
ESPAÑOL
DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
ENG/MASTER 96 INST
5
Fig. 3
