Connecting your equipment 03
19
En
English
Français
Italiano
Español
Nederlands
Deutsch
Connecting your component with no HDMI terminal

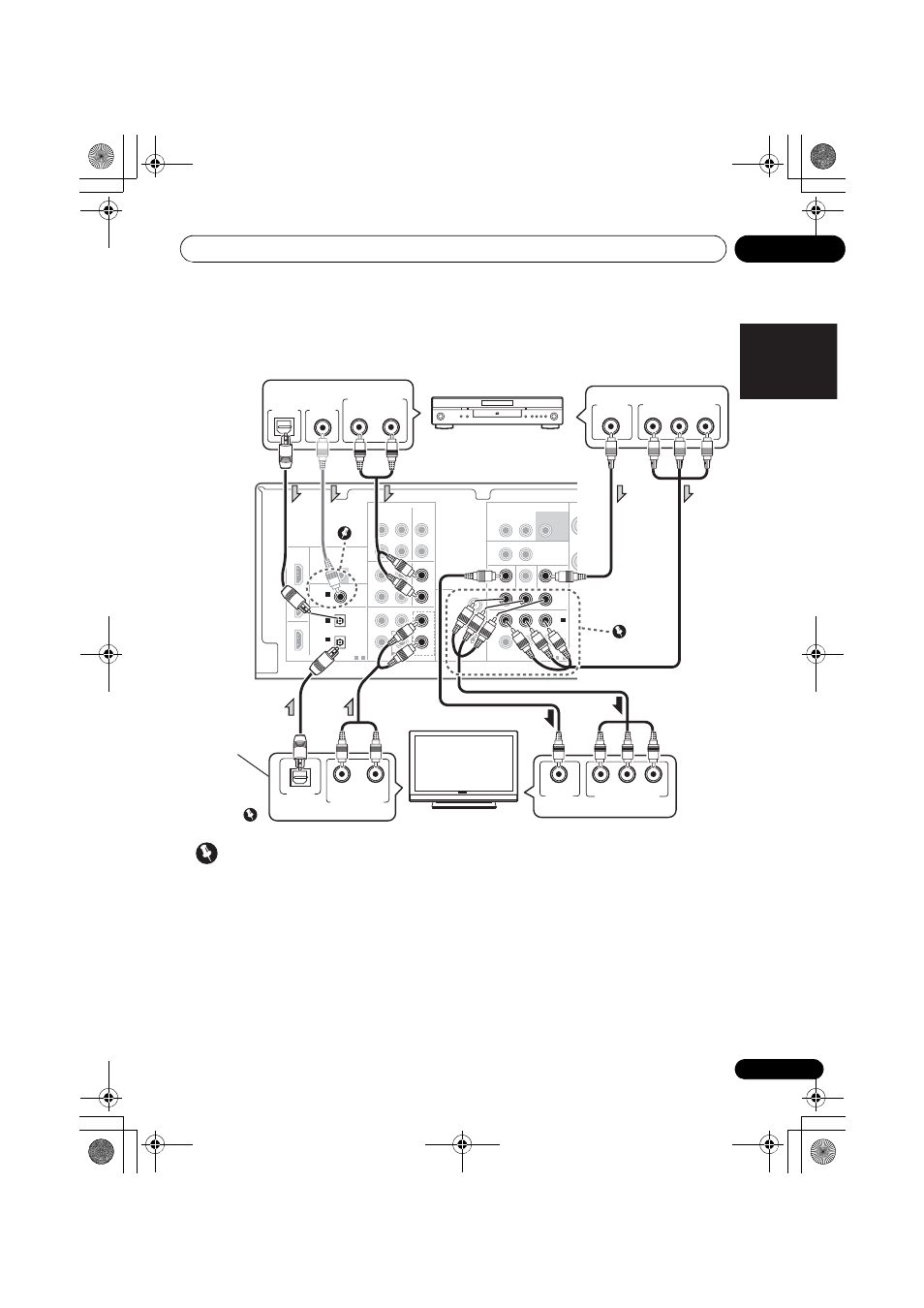

This diagram shows connections of a TV and DVD player (or other playback component) with no
HDMI terminal to the receiver.
Important
1 If you use component video cables for
connecting to the DVD player, the same cables
should be used for connecting to the TV
2 If necessary, assign the component video
inputs to the input source you’ve connected.
This only needs to be done if you didn’t connect
according to the following defaults:
• COMPONENT VIDEO IN 1 – BD/TV
• COMPONENT VIDEO IN 2 – DVD/SAT
See The Input Assign menu on page 35.
3 If the connection was made using a coaxial
cable, press SIGNAL SEL repeatedly to select
C1 (see page 26).
4 If you connected the TV (as shown above)
and there is still no sound, press BD then press
SIGNAL SEL repeatedly to select O1 or A (see
page 26).
AUDIO AUDIO
DIGITAL COMPONENT VIDEO BD/TV MULTI CH IN
BD/TV IN
HDMI
ANTENNA
FM
UNBAL
75 Ω
AM
LOOP
FRONT
L
R
L
R
CENTER SURROUND
COAXIAL
(CD)
IN 1
1 - 2
IN 1
(DVD/SAT)
IN 2
OPTICAL
ASSIGNABLE
IR
ASSIGNABLE
1 - 2
ASSIGNABLE
OUT
OUT
Y P B P R
IN
ZONE2 OUT
MONITOR OUT BD/TV IN DVD/SAT IN
SUBWOOFER
PRE OUT
L R
DVR/VCR DVD/SAT
OUT IN DVR/VCR VIDEO
L
R
OUT
BD/TV
IN
DVD/SAT
IN
OUT
IN IN
IN
CD-R/TAPE CD
SUBWOOFER
IN
(BD/TV)
IN 1
(DVD/SAT)
IN 2
COMPONENT VIDEO
(BD/TV)
IN 1
1 - 2
ASSIGNABLE
OUT
MONITOR Y P B P R
DIGITAL AUDIO OUT
OPTICAL R L
ANALOG AUDIO OUT
DIGITAL AUDIO OUT
COAXIAL OPTICAL R L
ANALOG AUDIO OUT
VIDEO OUT COMPONENT VIDEO OUT
P R Y P B
VIDEO IN COMPONENT VIDEO IN
P R Y P B
1,2
3
4
Select one
Select one
Select one Select one
DVD player, etc.
TV
This connection is
required in order to
listen to the sound of
the TV over the
receiver.
