37
03
Connecting your equipment

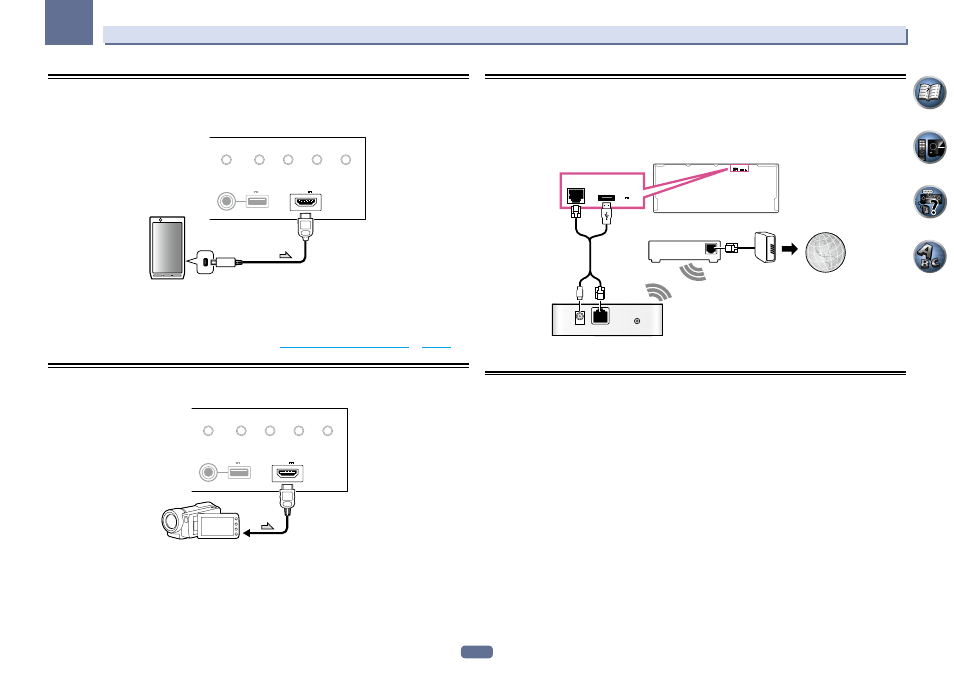

Connecting an MHL-compatible device
An MHL-compatible mobile device can be connected to enjoy full-HD videos, high quality multi-channel audio,
and photos etc., with charge the battery on the receiver. Use the MHL cable included with the receiver to connect
the device.
MHL-compatible
device
USB
iPod iPhone iPad
AUTO SURR/ALC/
STREAM DIRECT
STANDARD
SURROUND
ADVANCED
SURROUND
iPod iPhone iPad
DIRECT CONTROL
5V 2.1 A
HOME THX
HDMI 5 INPUT/ MHL ( ) 5V 1 A
MHL cable (supplied)
% Switch the receiver into standby then use the supplied MHL cable to connect your MHL
enabled device to the MHL terminal on the front panel of this receiver.
! The MHL-compatible device is recharged whenever it is connected to this unit. (Recharging is enabled only
when the unit’s power is turned on.)
! For instructions on playing the MHL-compatible device, see Playing an MHL-compatible device on page 48 .
Connecting an HDMI-equipped component to the front panel
input
Video camera (etc.)
USB
iPod iPhone iPad
AUTO SURR/ALC/ STREAM DIRECT STANDARD SURROUND ADVANCED SURROUND iPod iPhone iPad DIRECT CONTROL
5V 2.1 A
HOME THX
HDMI 5 INPUT/ MHL ( ) 5V 1 A
Connecting to a wireless LAN
Wireless connection to the network is possible through a wireless LAN connection. Use the AS-WL300 for
connection.
! Use only the furnished accessory connecting cable.
! Certain settings are required to use a wireless LAN converter (AS-WL300). For instructions on making these
settings, see the operating instructions included with the wireless LAN converter (AS-WL300).
WAN
DC 5V WPS Ethernet
LAN (10/100) DC OUTPUT for WIRELESS LAN (OUTPUT 5 V 0.6 A MAX)
LAN (10/100) DC OUTPUT
for WIRELESS LAN
(OUTPUT
5 V
0.6 A MAX)
Internet Modem
Wireless LAN converter (AS-WL300)
Router
Connecting an IR receiver
If you keep your stereo components in a closed cabinet or shelving unit, or you wish to use the sub zone remote
control in another zone, you can use an optional IR receiver (such as a Niles or Xantech unit) to control your
system instead of the remote sensor on the front panel of this receiver.
! Remote operation may not be possible if direct light from a strong fluorescent lamp is shining on the IR
receiver remote sensor window.
! Note that other manufacturers may not use the IR terminology. Refer to the manual that came with your com-
ponent to check for IR compatibility.
! If using two remote controls (at the same time), the IR receiver’s remote sensor takes priority over the remote
sensor on the front panel.
