Connecting your equipment

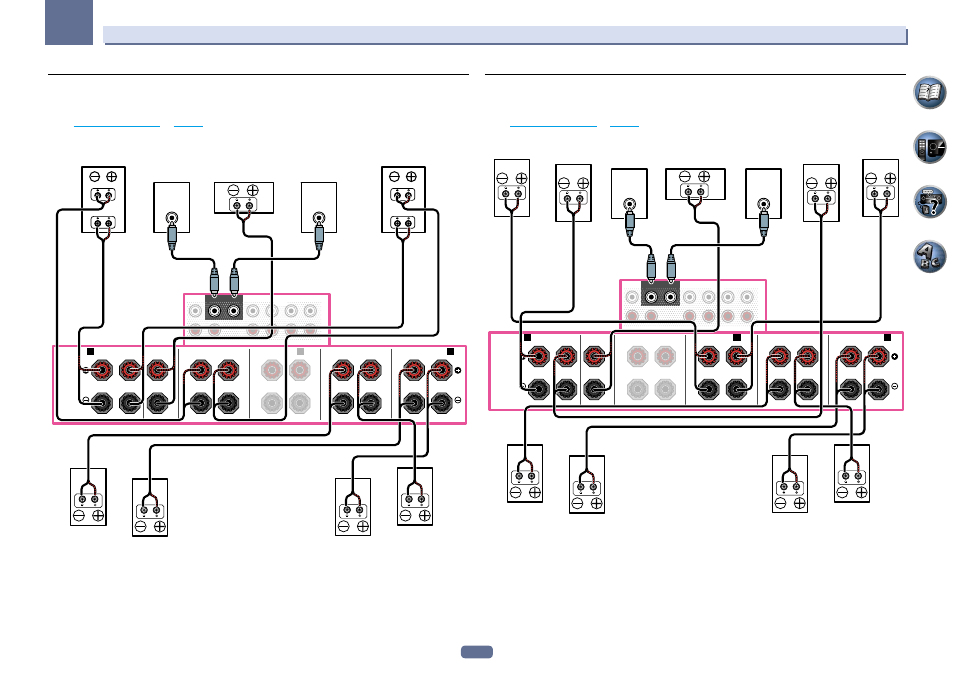

[C] 7.2 channel surround system & Front Bi-amping connection (High quality
surround)
! Select ‘7.1ch Front Bi-Amp’ from the Speaker System menu.
See
Speaker system setting on page 90 to do this.
! When only connecting one surround back speaker, connect it to the SURROUND BACK L (Single) terminals.
(Single)
SPEAKERS
FRONT CENTER A A
R L
SURROUND
R L
SURROUND BACK
R L
FRONT HEIGHT FRONT WIDE / B
R L R L
SUBWOOFER 1 2 SURROUND SURR BACK F HEIGHT
(Single)
FRONT
CENTER PRE OUT
F WIDE
L
R
LINE LEVEL
INPUT
LINE LEVEL
INPUT
High
Low
High
Low
Bi-amp compatible speaker
Front right
Bi-amp compatible speaker
Front left
Center Subwoofer 2 Subwoofer 1
Surround left
Surround back right Surround back left
Surround right
[D] 7.2 channel surround system (Surround back) & ZONE 2 connection (Multi
Zone)
! Select ‘7.1ch + ZONE 2’ from the Speaker System menu.
See
Speaker system setting on page 90 to do this.
! When only connecting one surround back speaker, connect it to the SURROUND BACK L (Single) terminals.
(Single)
SPEAKERS
FRONT CENTER A A
R L
SURROUND
R L
SURROUND BACK
R L
FRONT HEIGHT FRONT WIDE / B
R L R L
SUBWOOFER 1 2 SURROUND SURR BACK F HEIGHT
(Single)
FRONT
CENTER PRE OUT
F WIDE
L
R
LINE LEVEL
INPUT
LINE LEVEL
INPUT
ZONE 2 - left ZONE 2 - right
Front left Front right
Center Subwoofer 2 Subwoofer 1
Surround left Surround back right Surround back left Surround right
