Connecting your equipment
3 Connect a TV monitor to the VIDEO ZONE 2 OUT jack on this receiver.
ZONE 2
OUT
SUBWOOFER
ZONE 2 OUT
SUBWOOFER
R L
AUDIO IN LINE LEVEL
INPUT
VIDEO IN
Sub zone (ZONE 2) Main zone 3
2 1

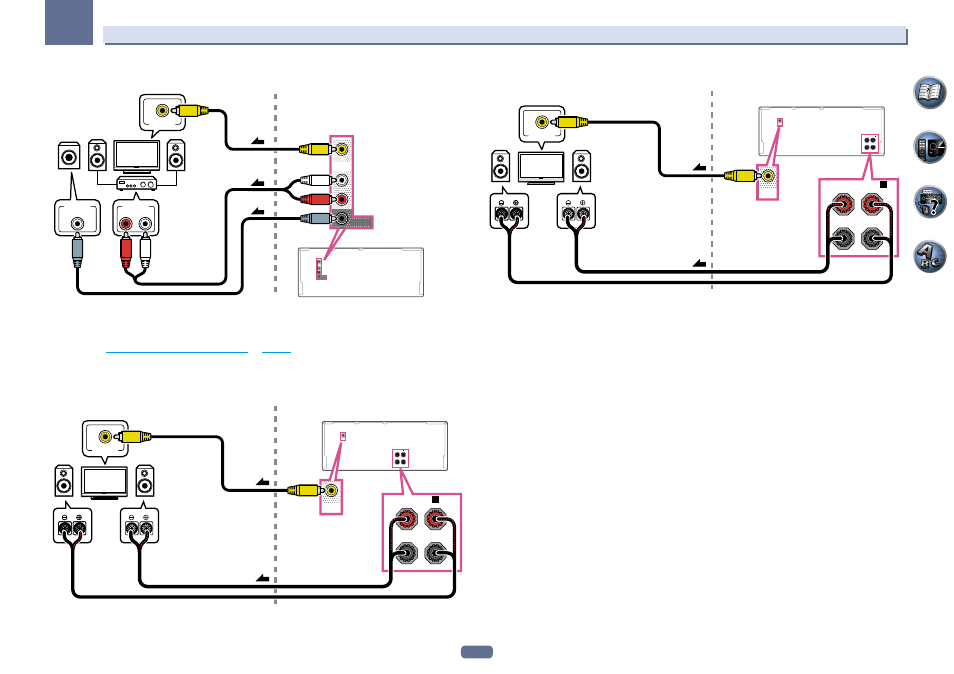

MULTI-ZONE setup using speaker terminals (ZONE 2)
Either the surround back or the front wide speaker terminals can be used as the speaker terminals for ZONE 2.
For details, see
Determining the speakers’ application on page 18 .
1 Connect a pair of speakers to the surround back or front wide speaker terminals.
2 Connect a TV monitor to the VIDEO ZONE 2 OUT jack on this receiver.
To use the front wide speaker terminals for ZONE 2:
R
Sub zone (ZONE 2) Main zone
VIDEO IN
(Single)
R L ZONE 2
OUT
(Single) R L
ZONE 2 OUT
L
FRONT WIDE / B
FRONT WIDE / B
2
1
To use the surround back speaker terminals for ZONE 2:
R
Sub zone (ZONE 2) Main zone
VIDEO IN
(Single)
SURROUND BACK
R L ZONE 2
OUT
(Single) SURROUND BACK R L
ZONE 2 OUT
L
