Connecting your equipment

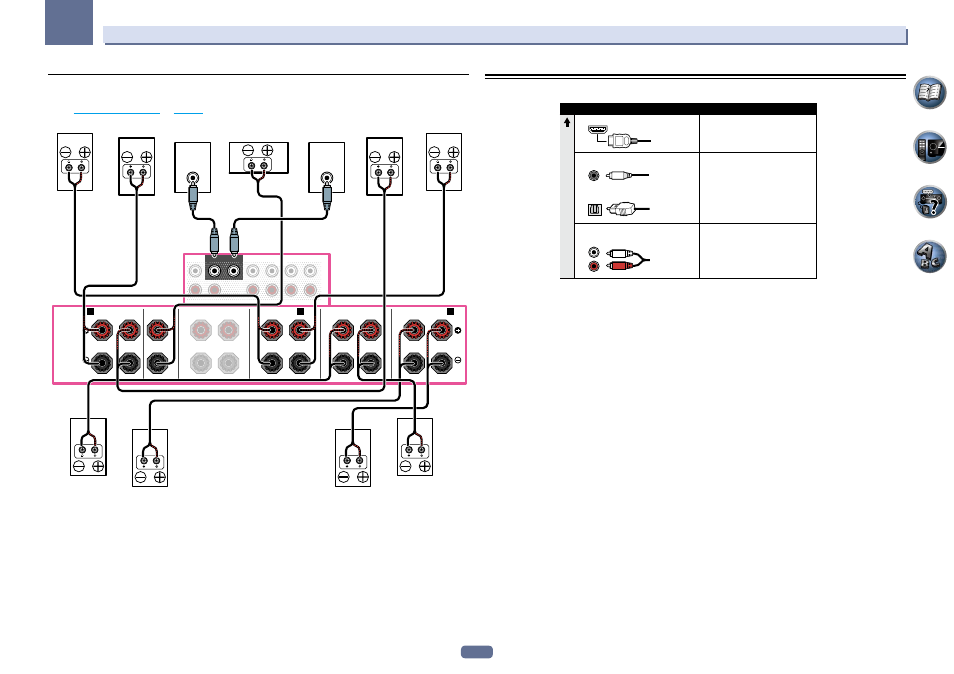

[G] 5.2 channel surround system & ZONE 2/ZONE 3 connection (Multi Zone)
! Select ‘5.1ch + ZONE 2+3’ from the Speaker System menu.
See
Speaker system setting on page 90 to do this.
(Single)
SPEAKERS
FRONT CENTER A A
R L
SURROUND
R L
SURROUND BACK
R L
FRONT HEIGHT FRONT WIDE / B
R L R L
SUBWOOFER 1 2 SURROUND SURR BACK F HEIGHT
(Single)
FRONT
CENTER PRE OUT
F WIDE
L
R
LINE LEVEL
INPUT
LINE LEVEL
INPUT
ZONE 3 - left ZONE 3 - right
Front left Front right
Center Subwoofer 2 Subwoofer 1
Surround left ZONE 2 - right ZONE 2 - left Surround right
About the audio connection
Transferable audio signals
Sound signal priorit
y
HDMI HD audio
Digital (Coaxial) Conventional digital audio
RCA (Analog)
(White/Red)
Conventional analog audio
Digital (Optical)
Types of cables and terminals
! With an HDMI cable, video and audio signals can be transferred in high quality over a single cable.
