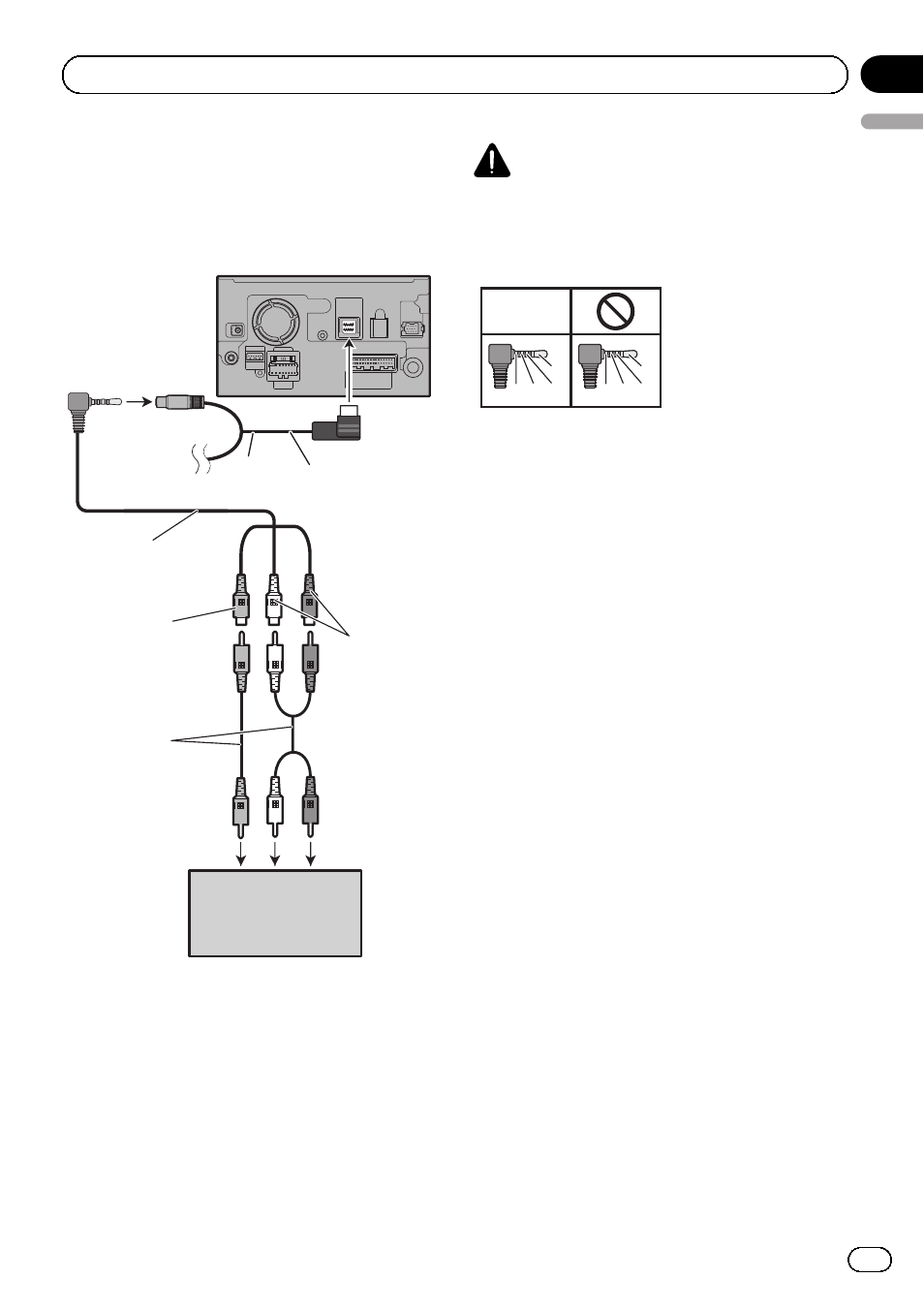

When connecting the
external video component
Using
“AV1 Input” (AV1)
The navigation unit
RCA cables
(sold separately)
Yellow
Red, white
External video
component
(sold separately)
To video output To audio outputs
CD-RM10
(sold separately)
USB and
mini-jack connector
2 m
! It is necessary to set “AV1 Input” in “AV
Settings
” to “Video” when connecting the
external video component. (For details,
refer to Operation Manual.)
CAUTION
Be sure to use a CD-RM10 (sold separately) for
wiring. If you use other cables, there is a case
where wiring position differs, images and sounds
may be disturbed.
OK
G V R
L
G R V
L
L : Left audio (White)
R : Right audio (Red)
V : Video (Yellow)
G : Earth
