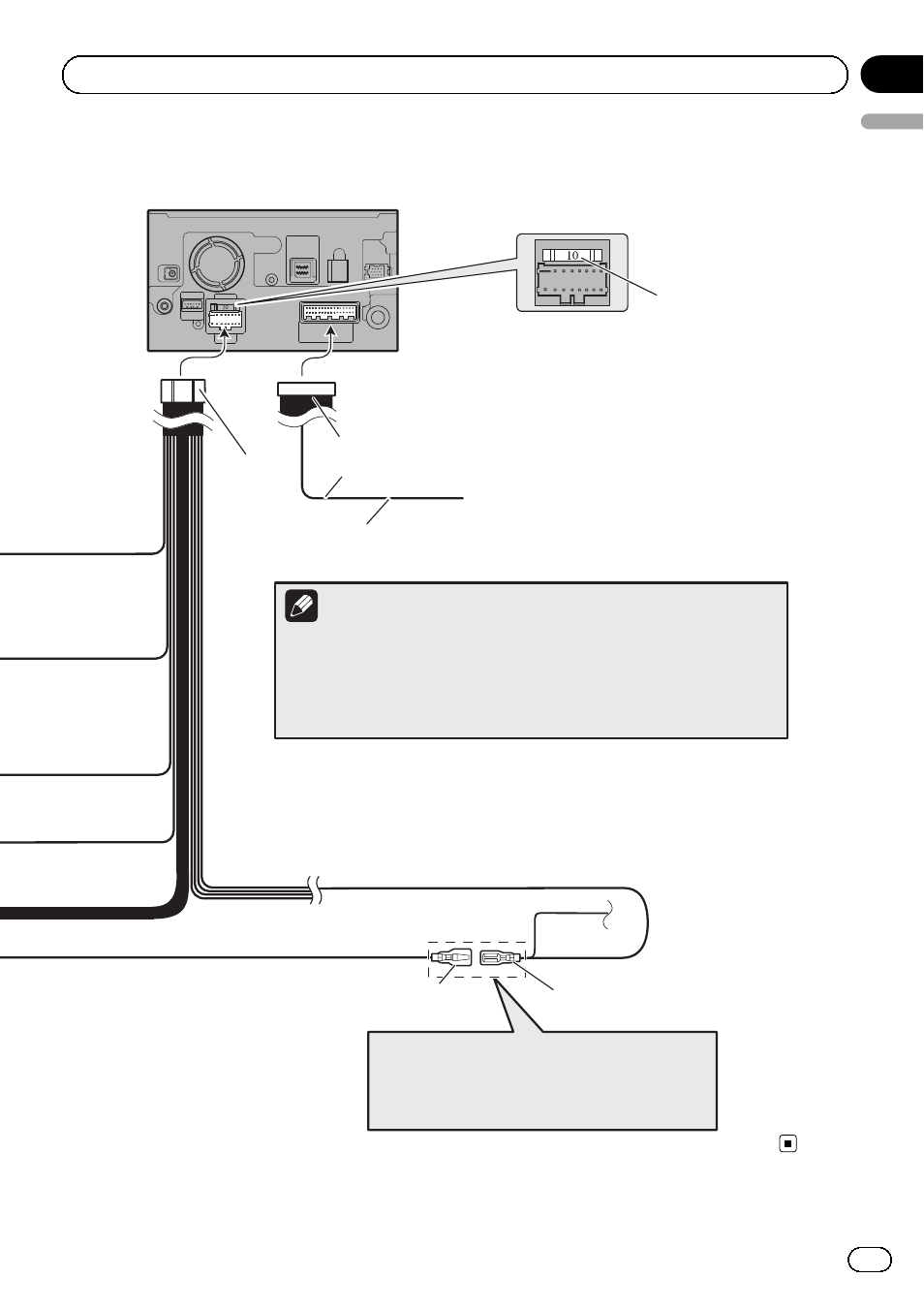

The navigation unit
Blue/white (*6)
Blue/white (*7)
To auto-aerial relay control
terminal (max. 300 mA 12 V DC).
The pin position of the ISO connector will differ
depending on the type of vehicle. Connect *6 and
*7 when Pin 5 is an aerial control type. In other
types of vehicle, never connect *6 and *7.
Yellow/black
If you use an equipment with mute function, connect that equipment to the
Audio Mute lead. If not, keep this lead free of any connections.
Power cord
Audio source will be set to mute or attenuate, while the following sounds
will not be muted or attenuated. For details, see Operation Manual.
— voice guidance of the navigation
— incoming ringtone and incoming voice of the mobile phone that is
connected to this navigation system via Bluetooth wireless technology
15 cm
Note
RCA connector
Fuse (10 A)
