24 Installation
Installation
3

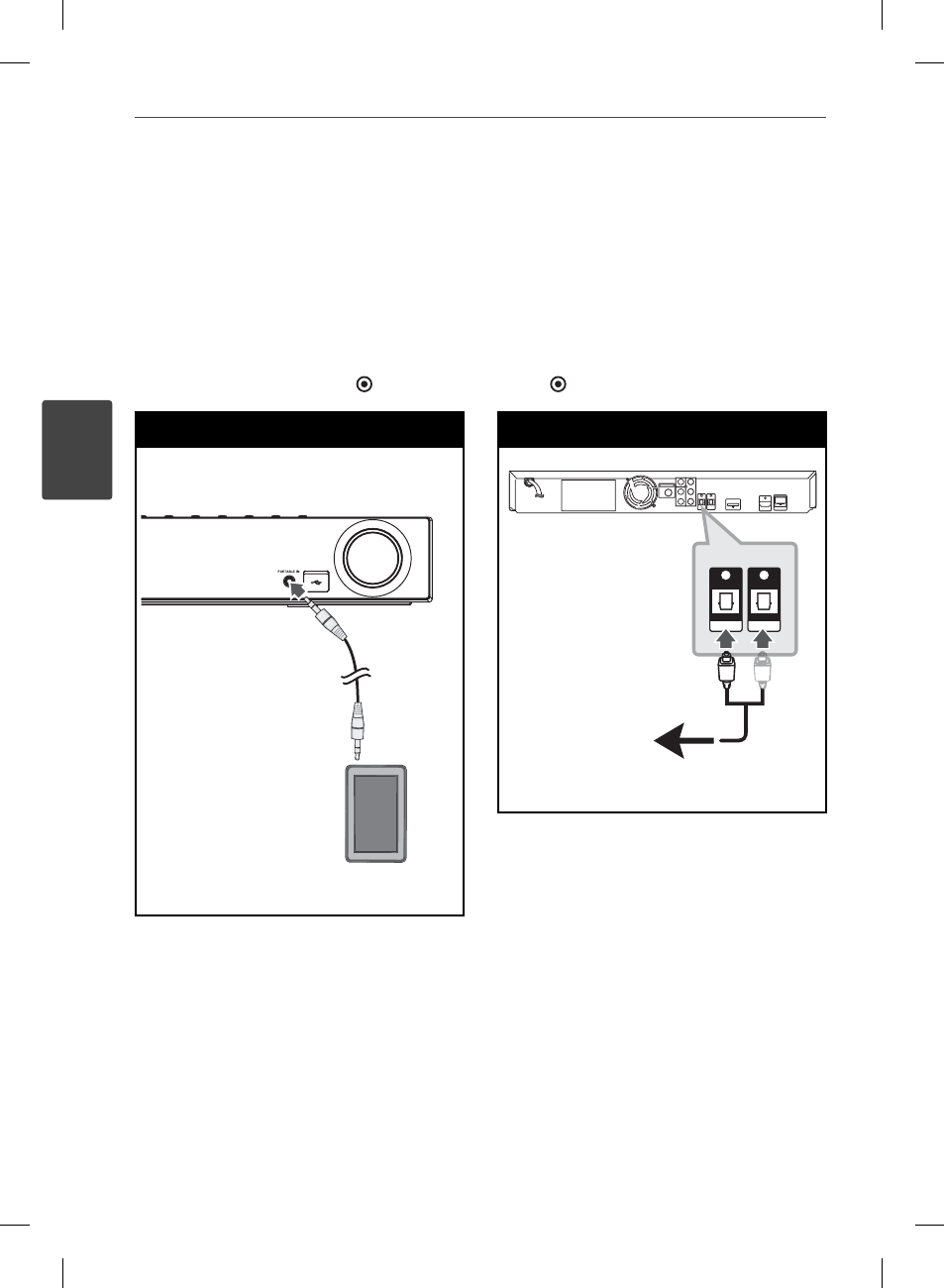

PORTABLE IN connection
You can enjoy the sound from your portable
audio player through the speakers of this
system.
Connect the headphones (or line out )
jack of the portable audio player into the
PORTABLE IN socket of this unit. And then
select the [PORTABLE] option by pressing
INPUT/TUNER,
I/i and ENTER ( ).
PORT.IN Connection
twZG—“ˆ Œ™SGŒ›ŠUUU
OPTICAL IN 1/2 connection
You can enjoy the sound from your component
with a digital optical connection through the
speakers of this system.
Connect the optical output jack of your
component into the OPTICAL IN 1/2 jacks on
the unit. And then select the [OPTICAL 1/2]
option by pressing INPUT/TUNER,
I/i and
ENTER ( ). Or press OPTICAL to select directly.
Optical Connection
To the digital
optical output jack
of your component
To the digital
optical output jack
of your component
