SET
UP
35
En

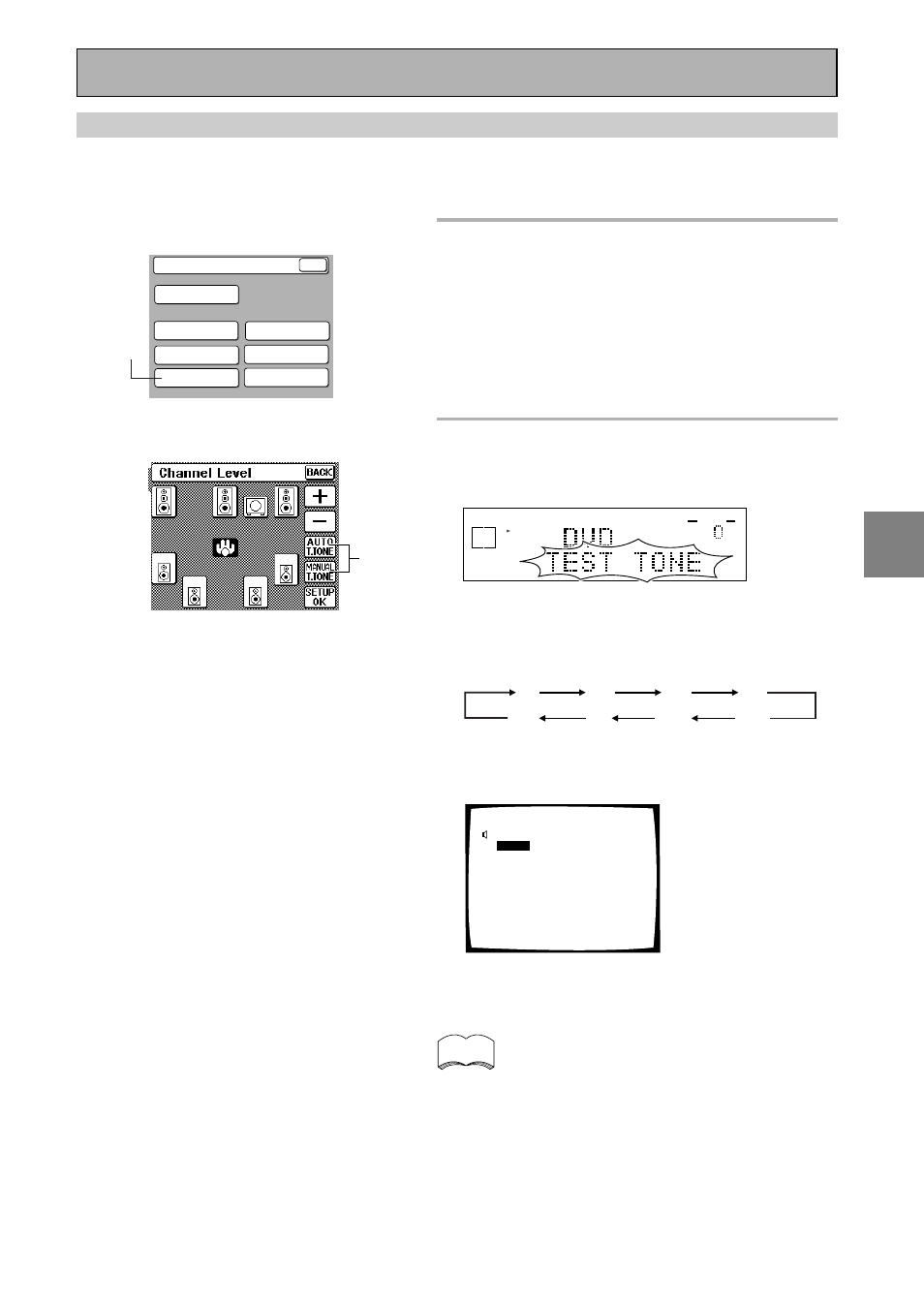

1 Press the CHANNEL LEVEL button.
The CHANNEL LEVEL settings will appear on your
remote control screen.
NOTE : Be prepared! The test tone is output at a
high volume level.
MASTER VOLUME rotates to the reference position
(0 dB) and the display on the amplifier flashes TEST
TONE. After a few seconds the test tone is output.
These settings will be displayed on your TV.
2 Select a test tone mode by pressing
one of the TEST TONE buttons.
Output the TEST TONE.
dB
STEREO SIGNAL
SELECT
ANALOG SP
A
AUTO
VOLUME
AUTO (automatic TEST TONE)
This mode switches the test tone between each
speaker automatically. The automatic test tone is
output in the following order :
MANUAL (manual TEST TONE)
This mode lets you switch the test tone between
each speaker manually.
Any time you want to exit the process
Press SETUP OK.
• Be careful, if you touch one of the speaker but-
tons by accident the TEST TONE will automati-
cally sound from each speaker.
• If your subwoofer has a volume control, set it
to the middle position before doing these
operations.
• A test tone will be output from the SURROUND
BACK speakers but your external amplifier must
be turned up at least a little in order to hear it.
Be careful that it is not turned up too much be-
cause the test tone volume is quite loud.
CHANNEL LEVEL
The following steps show you how to balance the sound output level of your speakers. Proper speaker balance
is essential for obtaining high quality surround sound. If continuing from CHANNEL DELAY go to step 1. If
starting fresh, complete steps 1-3 in “Setting Up for Surround Sound“ (p.30) first.
memo
1
System Setup
SPEAKER
SETTING
CROSSOVER
NETWORK
BASS PEAK LEVEL
MANAGER
DYNAMIC RANGE
CONTROL
DIGITAL INPUT
SELECT
CHANNEL DELAY
CHANNEL LEVEL
BACK
2
Initial Set Up
FL CT FR SR
SBL SBR SL SW
0.0 dB 0.0 dB
FL CT
0.0 dB
FR
0.0 dB
SW
0.0 dB
SL
0.0 dB SBL 0.0 dB SBR
0.0 dB
SR
