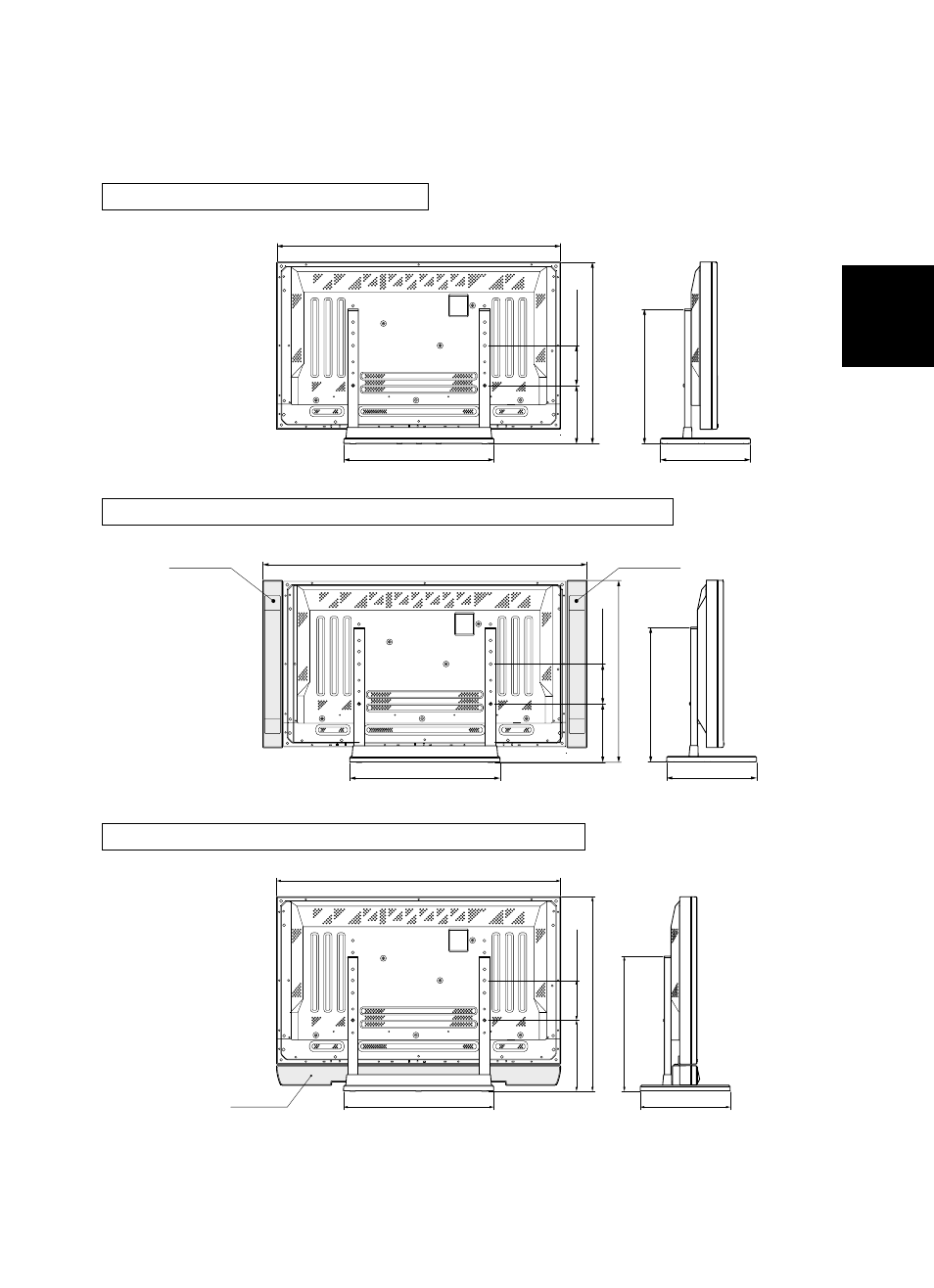

43" display with optional speakers attached to both sides of display
43" with optional speakers attached at bottom of display
43" display without optional speakers
1070 (42-1/8)
566 (22-5/16)
220 (8-21/32)
150 (5-29/32)
685 (26-31/32) 508 (20)
339 (13-3/8)
566 (22-5/16)
1220 (48-1/16)
220 (8-21/32)
150 (5-29/32)
685
(26-31/32)
Speaker Speaker
508 (20)
339 (13-3/8)
1070 (42-1/8)
566 (22-5/16)
267 (10-1/2)
150 (5-29/32)
732
(28-27/32)
Speaker
508 (20)
339 (13-3/8)
