11

English

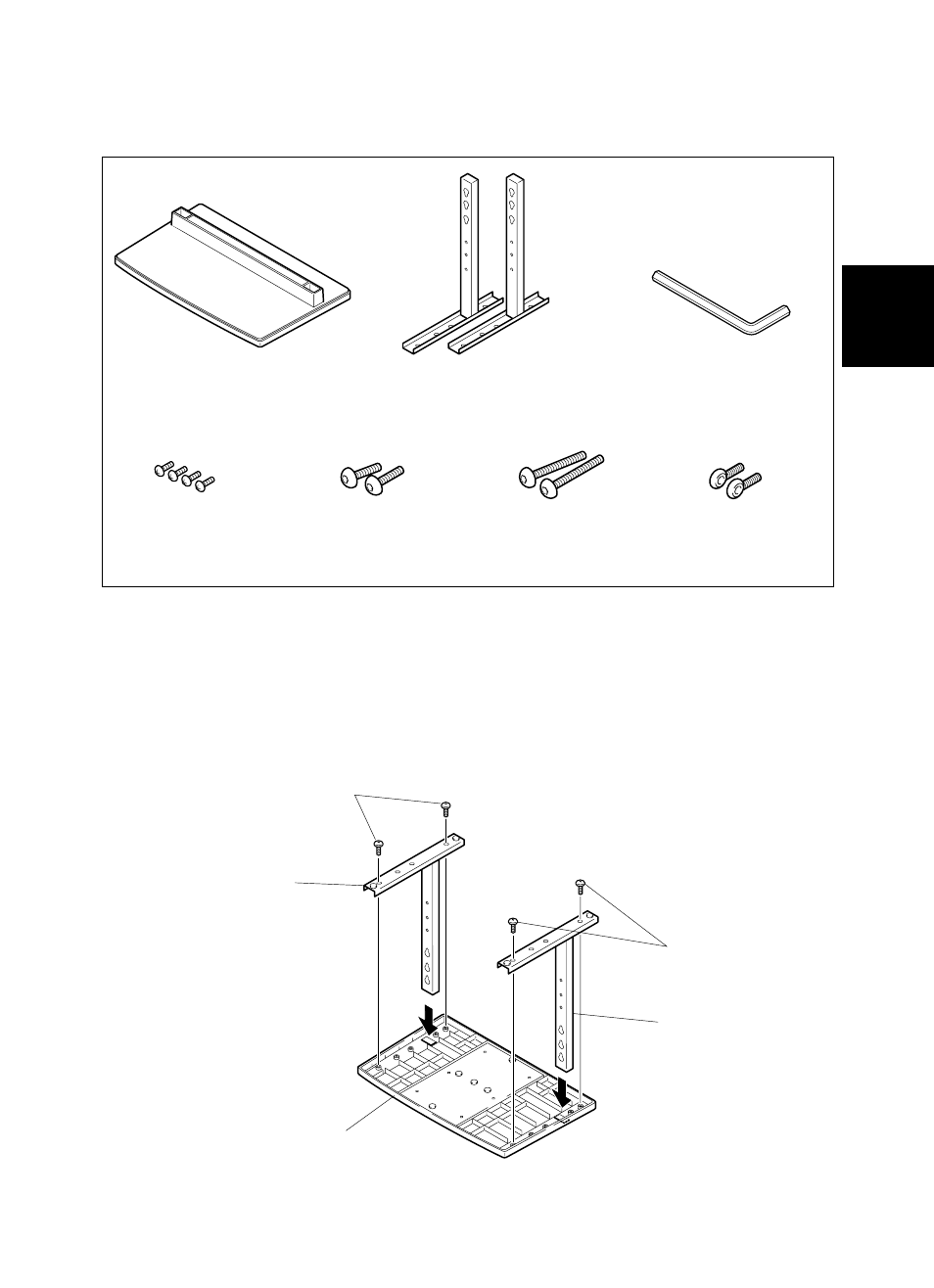

7 Check That You Have All the Parts

• Base cover .................. 1

• Stand pipes
(left and right, interchangable) .... 2

• Screws

(4 x 8)

........... 4

• Installation bolts 1

(M8 x 20)

...................... 2

• Hexagonal wrench

................................ 1

• Installation bolts 2

(M8 x 40)

........................ 2

• Stabilization bolts

................................ 2

1. Stand assembling

7 Assembling Steps

1.

Turn the base cover over so the underside is facing up.

2.

Insert the stand pipes into the base cover.

3.

Use the included screws to stabilize the stand pipes.

Base cover

Screws (4 x 8)

Stand pipe

Screws (4 x 8)

Stand pipe
