7 Instructions for using the main display packing material as a stand for
the working on the display (50” display model is shown in the figure.)

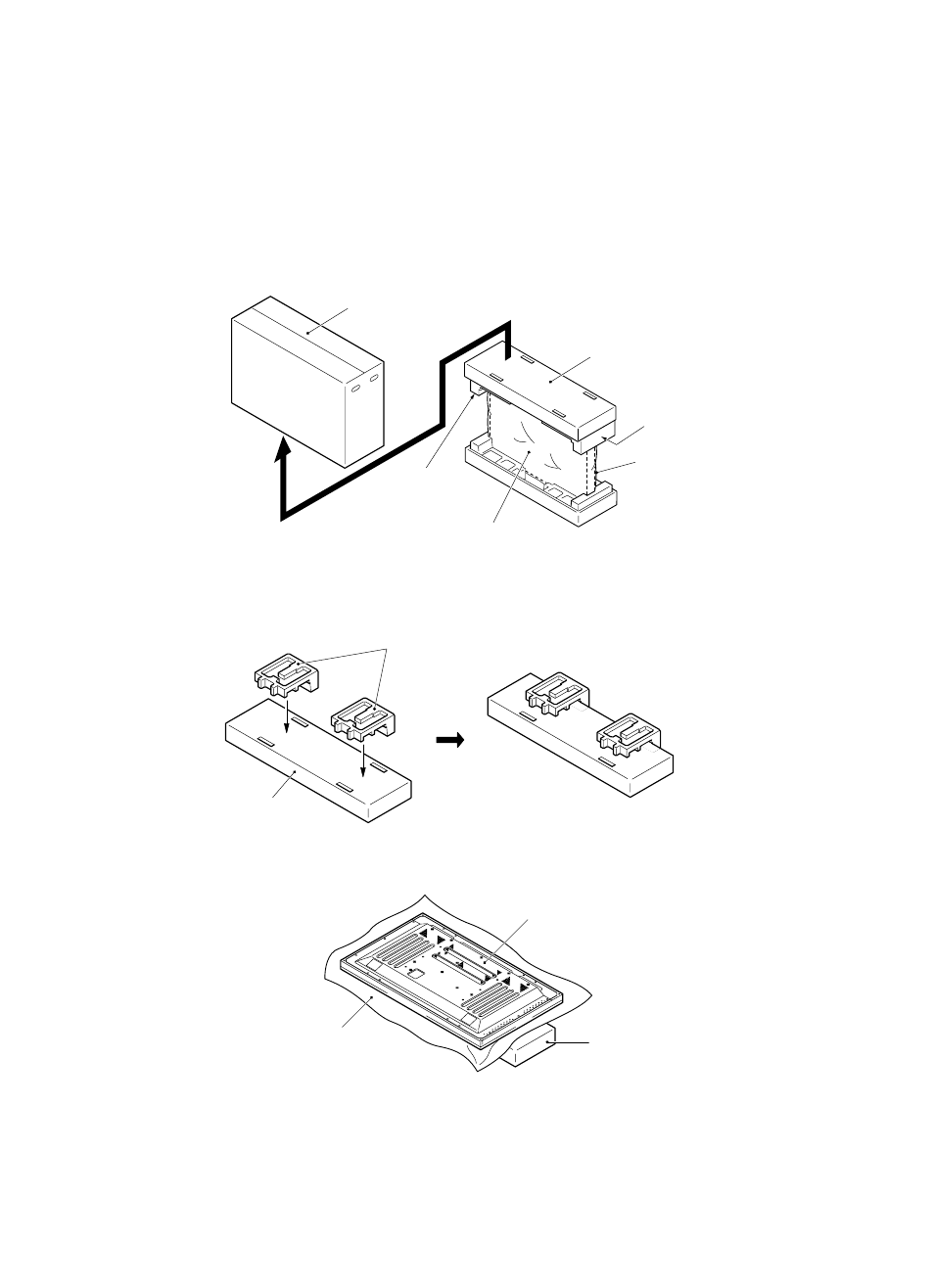

• Main plasma display packaging setup
Pads
Inner box frame
Plasma display
Mirror mat
Inner box frame topped by two pads
Step 1. Construct the stand for the plasma display using the inner box frame and pads shown in
the figure above (all pads are identical).
Step 2. Set the plasma display down on the pads as shown in the figure below.
Step 3. Follow the instructions in Steps 1-4 in "Normal Installation" to attach the stand to the
plasma display.
Mirror mat
Outer box
Inner box frame
Pad
Plasma display
Pad
