Controls and displays 01
8
En
01

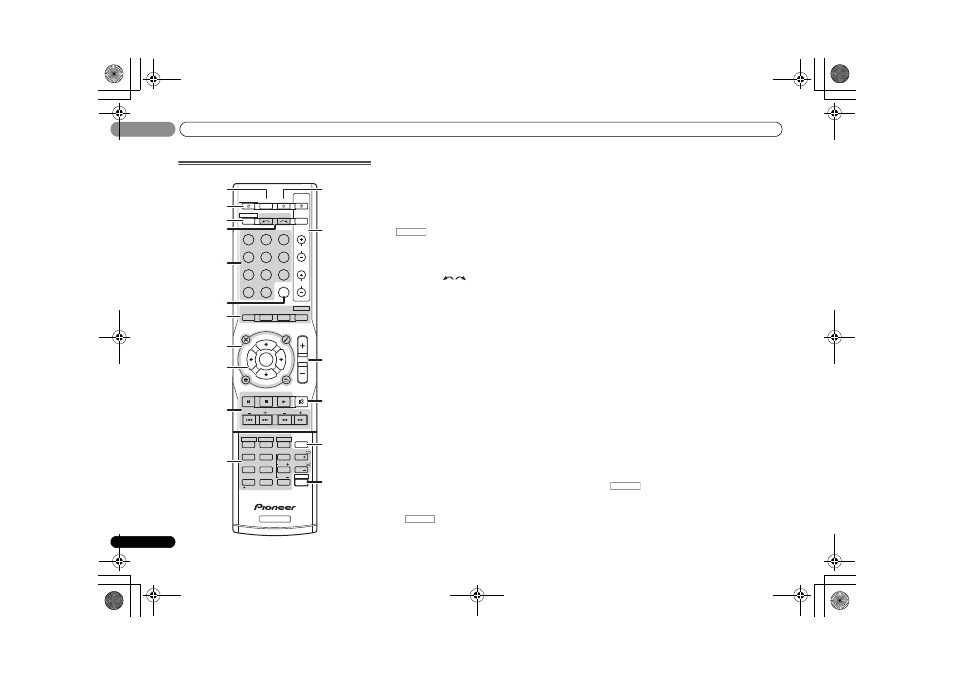

Remote control
1 SLEEP
Press to change the amount of time before the receiver
switches into standby (
30 min – 60 min – 90 min – Off). You
can check the remaining sleep time at any time by pressing
SLEEP once.
2  RECEIVER
Switches the receiver between standby and on.
3
Switches the remote to control the receiver (used to select
the white commands above the number buttons
(
MIDNIGHT, etc)). Also use this button to set up surround
sound (page 38) or Audio parameters (page 36).
4 INPUT SELECT
Use to select the input source (page 26).
5 Input function buttons
Use to select the input source to this receiver (page 26). This
will enable you to control other components with the remote
control (page 45).
6 SIGNAL SEL
Press to select the audio input signal of the component to
play back (page 26).
7 Listening mode buttons
AUTO/DIRECT – Switches between Auto surround mode
(page 33) and Stream Direct playback (page 34).
STEREO – Press to select stereo playback (page 33).
ALC/STANDARD SURR – Press for standard decoding
and to switch between the modes of
2 Pro Logic II, 2
Pro Logic IIx, 2 Pro Logic IIz and NEO:6, and the Auto
level control stereo mode (page 33).
ADV SURR – Switches between the various surround
modes (page 34).
Press BD first to access:
BD MENU* – Displays the disc menu of Blu-ray Discs.
8 System Setup and component control buttons
The following button controls can be accessed after you have
selected the corresponding input function button (
BD, DVD,
etc.).
Press first to access:
AUDIO PARAMETER – Use to access the Audio options
(page 36).
SETUP – Press to access the System Setup menu
(page 38).
RETURN – Confirm and exit the current menu screen.
Press BD, DVD or DVR/BDR first to access:
TOP MENU – Displays the disc ‘top’ menu of a Blu-ray
Disc/DVD.
HOME MENU – Displays the HOME MENU screen.
RETURN – Confirm and exit the current menu screen.
MENU – Displays the TOOLS menu of Blu-ray Disc player.
Press TUNER first to access:
TUNER EDIT – Memorizes/names stations for recall
(page 31).
BAND – Switches between AM, FM ST (stereo) and FM
MONO radio bands (page 31).
PTY SEARCH – Use to search for RDS program types
(page 32).
Press iPod USB first to access:
iPod CTRL – Switches between the iPod controls and the
receiver controls (page 28).
9 /// (TUNE /, PRESET /), ENTER
Use the arrow buttons when setting up your surround sound
system (page 38). Also used to control Blu-ray Disc/DVD
menus/options.
Use
TUNE / can be used to find radio frequencies and
PRESET / can be used to select preset radio stations
(page 31).
10 Component control buttons
The main buttons (
, , etc.) are used to control a
component after you have selected it using the input function
buttons.
The controls above these buttons can be accessed after you
have selected the corresponding input function button (
BD,
DVD, DVR/BDR and CD). These buttons also function as
described below.
Press
first to access:
BASS –/+, TRE –/+ – Use to adjust Bass or Treble.
• These controls are disabled when the listening mode is
set to DIRECT or PURE DIRECT.
BD DVD
INPUT SELECT
SOURCE SLEEP
TV
CONTROL
DIMMER
TV
INPUT
1
4
7
MIDNIGHT
S.RETRIEVER
HDD
CH
RECEIVER
DVR/BDR CD CD-R
ADAPTER iPod USB VIDEO 1
VIDEO 2 SIGNAL SEL TUNER
BD MENU
ENTER
ALC/
STANDARD ADV SURR STEREO
AUTO/
DIRECT
VOL
+10
2
5
8
SPEAKERS LEV
LEV
SB CH
DISP
CLR
EQ
PHASE
DVD
3
6
9
0 ENTER
CH
CH
CH SELECT
VCR
SHIFT
MUTE
RETURN
AUDIO
PARAMETER
TUNER EDIT
TOOLS
MASTER
VOLUME
iPod CTRL
PTY SEARCH
BAND
MENU
HOME
MENU
SETUP
DTV/ TV
/
TRE BASS
TOP MENU
RECEIVER
TUNE
TUNE
P R E S E T P R E S E T
