Connecting your equipment
21
En
02
02

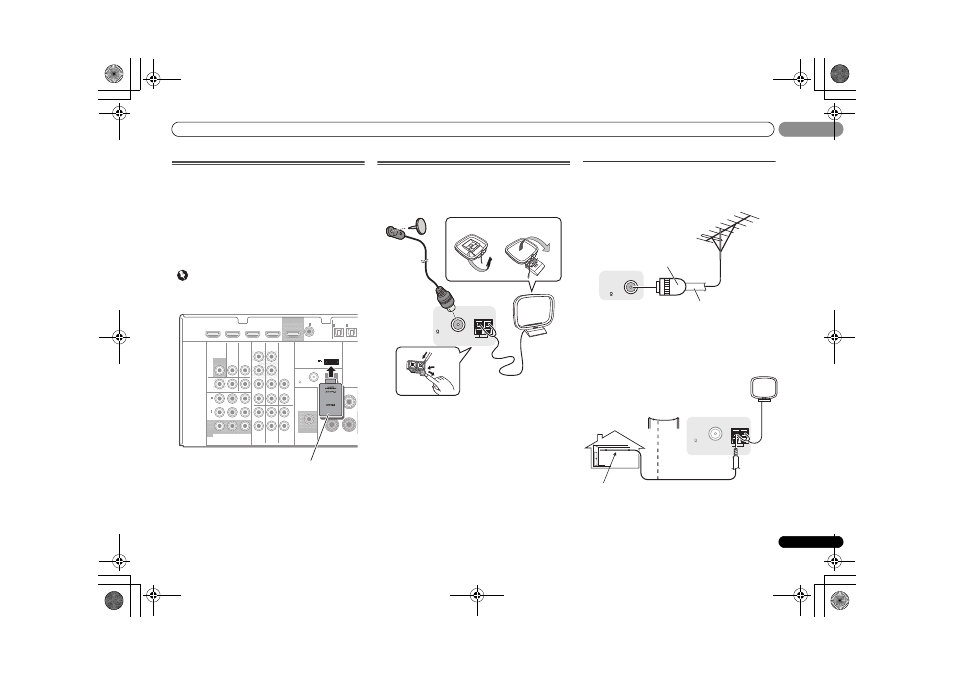

Connecting optional Bluetooth
®
ADAPTER
When the Bluetooth ADAPTER (Pioneer Model No. AS-BT100
or AS-BT200) is connected to this unit, a product equipped
with Bluetooth wireless technology (portable cell phone,
digital music player, etc.) can be used to listen to music
wirelessly.
Connect a Bluetooth ADAPTER to the ADAPTER PORT
terminal on the rear panel.
• For instructions on playing the Bluetooth wireless
technology device, see Pairing the Bluetooth ADAPTER
and Bluetooth wireless technology device on page 30.
Important
• Do not move the receiver with the Bluetooth ADAPTER
connected. Doing so could cause damage or faulty
contact.
Connecting antennas
Connect the AM loop antenna and the FM wire antenna as
shown below. To improve reception and sound quality,
connect external antennas (see Using external antennas
below).
1
Push open the tabs, then insert one wire fully into each
terminal, then release the tabs to secure the AM antenna
wires.
2
Fix the AM loop antenna to the attached stand.
To fix the stand to the antenna, bend in the direction
indicated by the arrow (fig. a) then clip the loop onto the
stand (fig. b).
3
Place the AM antenna on a flat surface and in a direction
giving the best reception.
4
Connect the FM wire antenna into the FM antenna
socket.
For best results, extend the FM antenna fully and fix to a wall
or door frame. Don’t drape loosely or leave coiled up.
Using external antennas
To improve FM reception
Use a PAL connector (not supplied) to connect an external
FM antenna.
To improve AM reception
Connect a 5 m to 6 m length of vinyl-coated wire to the AM
antenna terminal without disconnecting the supplied AM
loop antenna.
For the best possible reception, suspend horizontally
outdoors.
HDMI
VIDEO
COMPONENT VIDEO
DVR/
BDR
L
R
R
L
Y
P
B
P
R
COAXIAL
AUDIO
PRE OUT
ANTENNA
O
ASSIGNABLE
ASSIGN
ABLE
AS
OUT
A
DVR/BDR
OUT
CD-R/TAPE
L
R
IN
(
CD
)
1
SUBWOOFER
IN
IN
CD
MONITOR
OUT
TV/SAT
IN
BD
IN
OUT
IN
DVD IN
IN
TV/SAT
BD
IN
DVD
(
DVD
)
IN
1
MONITOR
OUT
(
DVR/
BDR
)
IN
2
DVR/BDR IN
DVD IN
BD IN
VIDEO 1 IN
(
TV/SAT
)
IN
1
(
CD-R/TAP
IN
2
FM UNBAL
75
(
OUTPUT 5 V
0.1 A MAX
)
ADAPTER PORT
AM LOOP
FRONT
R
L
Bluetooth
®
ADAPTER
VSX-826
ANTENNA
FM UNBAL
75
AM LOOP
2
1
3
4
fig. a
fig. b
ANTENNA
FM UNBAL
75
One-touch
PAL connector
75
Ω coaxial cable
ANTENNA
FM UNBAL
75
AM LOOP
Outdoor
antenna
5 m to 6 m
Indoor antenna
(vinyl-coated wire)
