Connecting your equipment 02
16
En
02

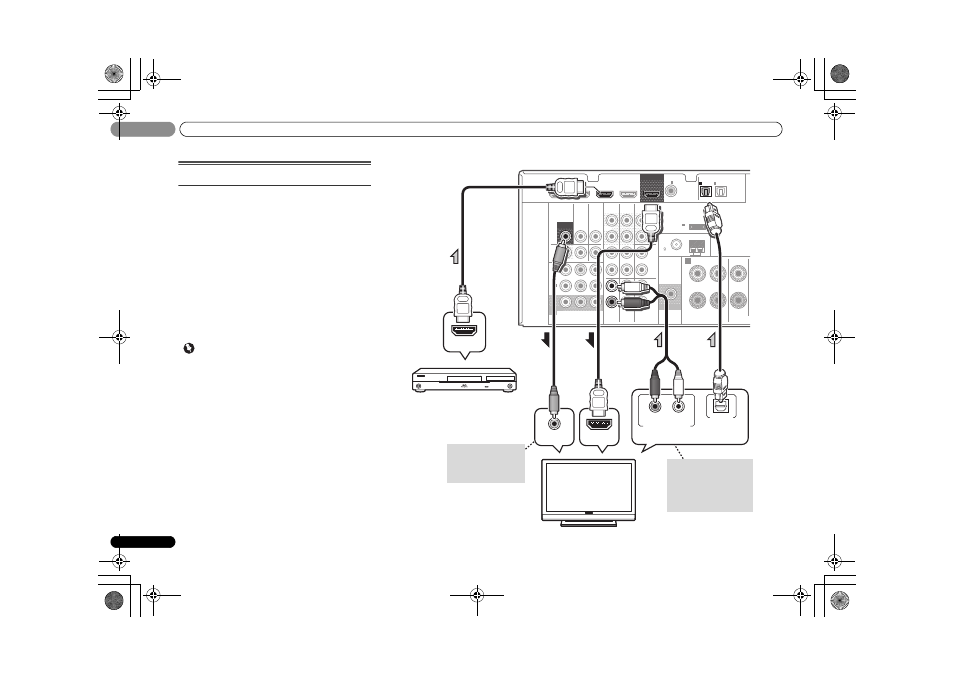

Connecting a TV and playback components
Connecting using HDMI
If you have an HDMI or DVI (with HDCP) equipped
component (Blu-ray Disc player, etc.), you can connect it to
this receiver using a commercially available HDMI cable.
If the TV and playback components support the
Control with
HDMI feature, the convenient Control with HDMI functions
can be used (see Control with HDMI function on page 43).
• The following connection/setting is required to listen to
the sound of the TV over this receiver.
- If the TV does not support the HDMI Audio Return
Channel function, connect the receiver and TV with
audio cables (as shown).
- If the TV supports the HDMI Audio Return Channel
function, the sound of the TV is input to the receiver via
the HDMI terminal, so there is no need to connect an
audio cable. In this case, set
ARC at HDMI Setup to ON
(see HDMI Setup on page 43).
Important
• VSX-821 only:
- If the receiver is connected to a TV using an HDMI cable,
the on-screen display (OSD) will not be displayed. Be
sure to use a standard RCA analog video cable to
connect. In this case, switch the TV input to analog to
see the OSD screen (for setup, etc.) on the TV.
- When the Control with HDMI function is ON and the
receiver is connected to a compatible TV with an HDMI
cable, and you switch the input of the TV to composite
or component, the input of the receiver may
automatically switch to
TV/SAT. If this happens, switch
the receiver’s input back to the original input, or turn
OFF the Control with HDMI function (see HDMI Setup
on page 43).
MONITOR
OUT
HDMI
VIDEO
COMPONENT VIDEO
DVR/
BDR
L
R
R
L
Y P B P R
COAXIAL
AUDIO
PRE OUT
ANTENNA
OPTICAL
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
OUT
A
DVR/BDR
OUT
CD-R/TAPE
SURR BACK/
FRONT HEIGHT
L
R
PRE OUT
(Single)
IN
( CD )
1
SUBWOOFER
IN IN
CD
MONITOR
OUT
TV/SAT
IN
BD
IN
OUT IN DVD IN
IN
TV/SAT BD
IN
DVD
( DVD )
IN 1
MONITOR OUT
( DVR/
BDR )
IN 2
DVR/BDR IN DVD IN BD IN VIDEO 1 IN
( TV/SAT )
IN
1
( CD-R/TAPE )
IN
2
FM
UNBAL 75
( OUTPUT 5 V
0.1 A MAX )
ADAPTER PORT
AM LOOP
FRONT R L CENTER
VIDEO IN HDMI IN
HDMI OUT
R L
DIGITAL AUDIO OUT ANALOG AUDIO OUT
OPTICAL
Select one
HDMI/DVI-compatible TV
HDMI/DVI-compatible
Blu-ray Disc player
If the TV does not support
the HDMI Audio Return
Channel function, this
connection is required to
listen to the TV sound over
the receiver.
VSX-821 only: This
connection is necessary
in order to see the OSD
of the unit on the TV.
VSX-821
