Connecting your equipment
15
En
02 02
About the video converter
(VSX-826 only)
The video converter ensures that all video sources are output
from
HDMI OUT terminal. The only exception is HDMI: since
this resolution cannot be downsampled, you must connect
your monitor/TV to the receiver’s HDMI video outputs when
connecting this video source.
Note
• If several video components are assigned to the same
input function, the converter gives priority to HDMI,
component, then composite (in that order).
• If the video signal does not appear on your TV, try
adjusting the resolution settings on your component or
display. Note that some components (such as video game
units) have resolutions that may not be converted. In this
case, try switching Video Converter
OFF (see Video
Converter on page 41).
• The signal input resolutions that can be converted from
the component video input for the HDMI output are 480i/
576i, 480p/576p, 720p and 1080i. 1080p signal cannot be
converted.

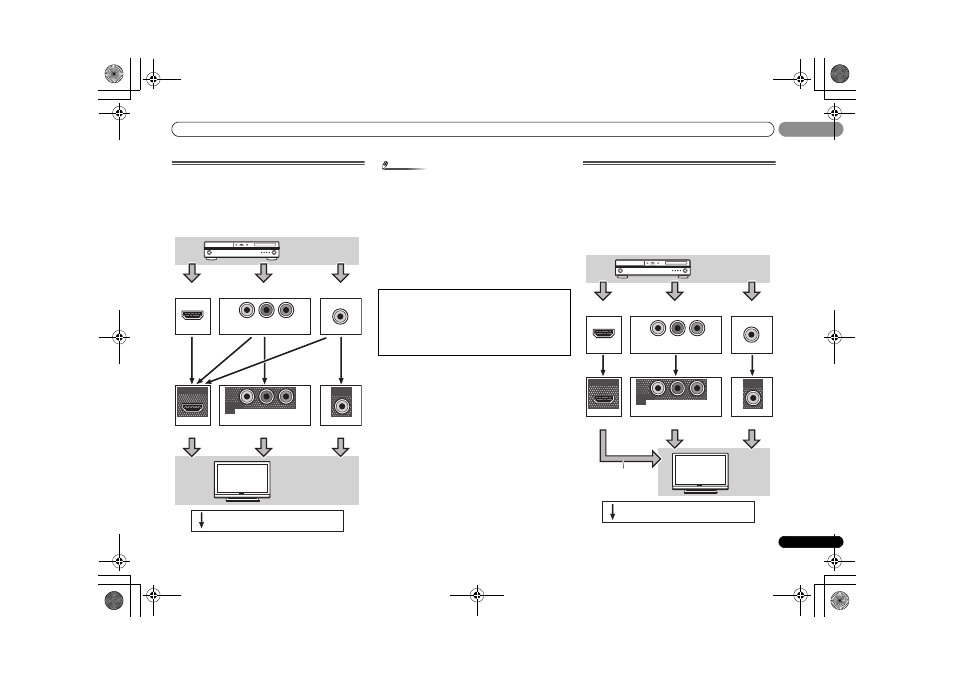

About video outputs connection
(VSX-821 only)
This receiver is not loaded with a video converter. When you
use component video cables or HDMI cables for connecting
to the input device, the same cables should be used for
connecting to the TV.
The signals input from the analog (composite and
component) video inputs of this unit will not be output from
the
HDMI OUT.
VIDEO
VIDEO
IN
IN IN
HDMI
COMPONENT VIDEO
MONITOR
OUT Y P B P R
MONITOR
OUT
COMPONENT VIDEO
Y P B P R
HDMI
OUT
Terminal for connection with source device
Terminal for connection with TV monitor
Playback
component
TV
Video signals can be output.
This product incorporates copyright protection technology
that is protected by U.S. patents and other intellectual
property rights. Use of this copyright protection technology
must be authorized by Rovi Corporation, and is intended for
home and other limited viewing uses only unless otherwise
authorized by Rovi Corporation. Reverse engineering or
disassembly is prohibited.
VIDEO
VIDEO
IN IN IN
HDMI
COMPONENT VIDEO
MONITOR
OUT Y P B P R
MONITOR
OUT
COMPONENT VIDEO
Y P B P R
HDMI
OUT
Terminal for connection with source device
Terminal for connection with TV monitor
Playback
component
TV
The OSD will
not appear.
Video signals can be output.
