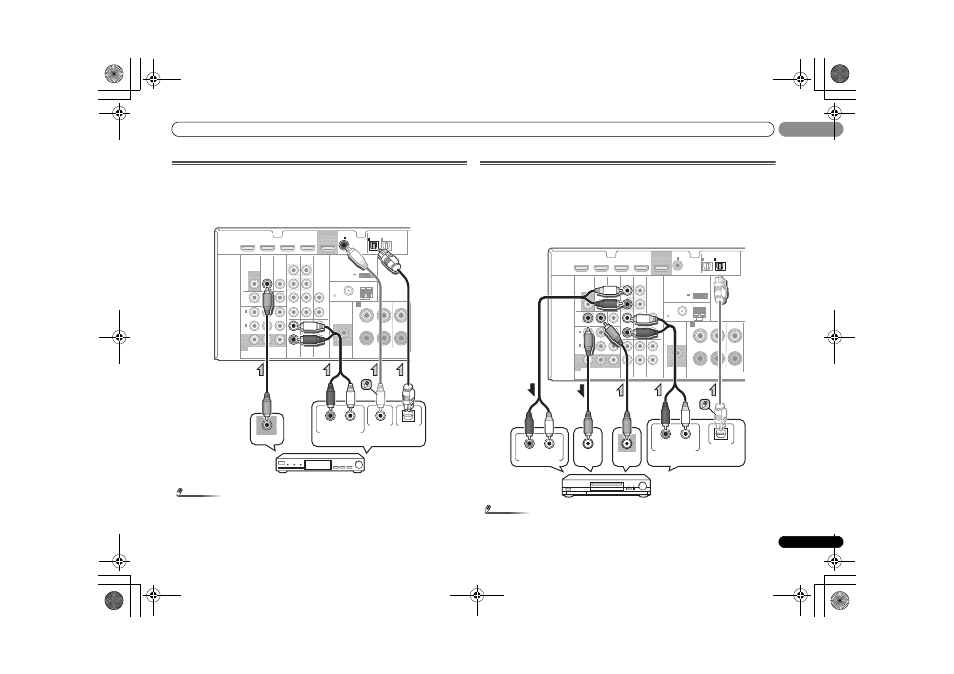

Connecting a satellite receiver or other digital set-top box
Satellite and cable receivers, and terrestrial digital TV tuners are all examples of so-called ‘set-
top boxes’.
• If the set-top box or video component also has an HDMI or a component video output, you
can connect this too. See Connecting using HDMI on page 16 or Using the component
video jacks on page 20 for more on this.
Note
• In order to listen to the audio from the source component that is connected to this receiver
using a coaxial cable, first, switch to the
TV/SAT, then press SIGNAL SEL to choose the
audio signal
C1 (COAXIAL1) (see Selecting the audio input signal on page 26).
Connecting an HDD/DVD recorder, Blu-ray Disc recorder and other
video sources
This receiver has audio/video inputs and outputs suitable for connecting analog or digital
video recorders, including HDD/DVD recorders and Blu-ray Disc recorders.
• Only the signals that are input to the VIDEO IN terminal can be output from the VIDEO OUT
terminal.
• Audio signals that are input through the digital terminal will not be output from the analog
terminal.
Note
• In order to listen to the audio from the source component that is connected to this receiver
using an optical cable, first, switch to the
DVR/BDR input, then press SIGNAL SEL to
choose the audio signal
O2 (OPTICAL2) (see Selecting the audio input signal on page 26).
