Using with other equipment 12
60
En

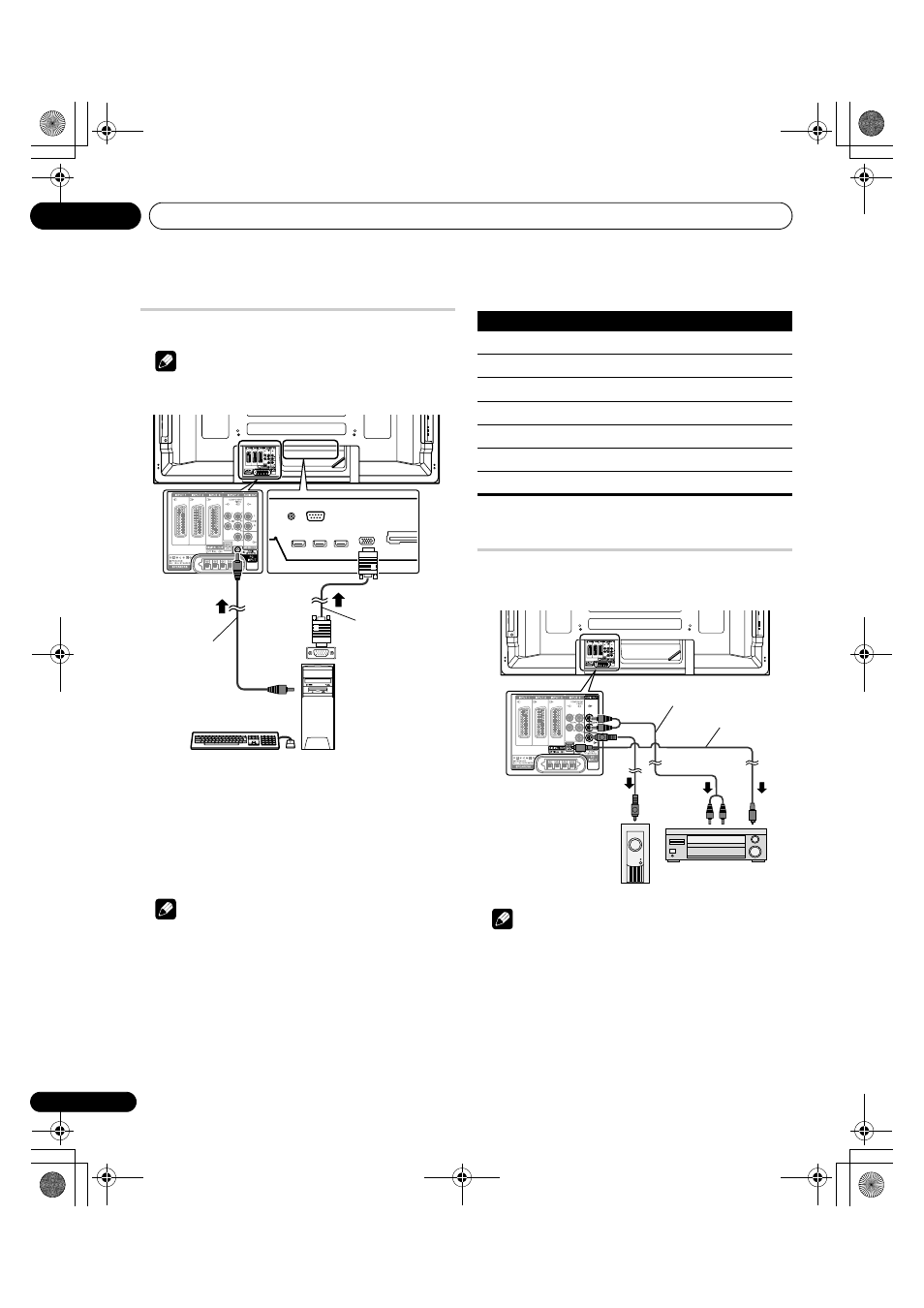

Connecting a personal computer
Use the PC terminals to connect a personal computer.
Note
• The PC input terminals are DDC2B-compatible.
Displaying an image from a personal computer
To watch an image coming from the personal computer, press PC
on the remote control unit or press INPUT on the plasma television
to select “PC”.
When connecting to a personal computer, the correct input signal
type is automatically detected. If the personal computer image does
not come in clearly, you may need to use Auto Setup menu. See
page 51.
Note
• The PC terminals cannot be used for audiovisual equipment.
Computer compatibility chart
Connecting an amplifier/AV receiver
You can enjoy more powerful sound by connecting such audio
equipment as an amplifier/AV receiver or subwoofer to the plasma
television.
Note
• For details, refer to the operation manual for the audio
equipment to be connected.
• Audio signals synchronizing with currently displayed images
are always output to the AUDIO OUT terminals.
• The audio accompanying images shown on the display is
always output to the SUBWOOFER output terminal.
• When signals are input from the HDMI terminals, no signals are
output from the DIGITAL OUT terminal.
• While in DTV mode, no signals are output if they are copy
guarded.
Rear view
Stereo
mini jack cable
RGB cable
Personal computer
Resolution Frequency
720 x 400 70 Hz
640 x 480 (VGA) 60 Hz
800 x 600 (SVGA) 60 Hz
1280 x 720 60 Hz
1024 x 768 (XGA) 60 Hz
1360 x 768 (Wide-XGA) 60 Hz
1280 x 1024 (SXGA) 60 Hz
Rear view
Subwoofer
AV receiver
Stereo audio cable
Optical digital cable
This connection is not
required when connecting
an AV amp equipped with
the surround function to a
subwoofer.
