(for PDP-428XD) Preventing the plasma television from
falling over
After installing the stand, be sure to take special care to ensure that
the plasma television will not fall over and is stabilized to both the
wall and rack.
Stabilizing on a table or rack

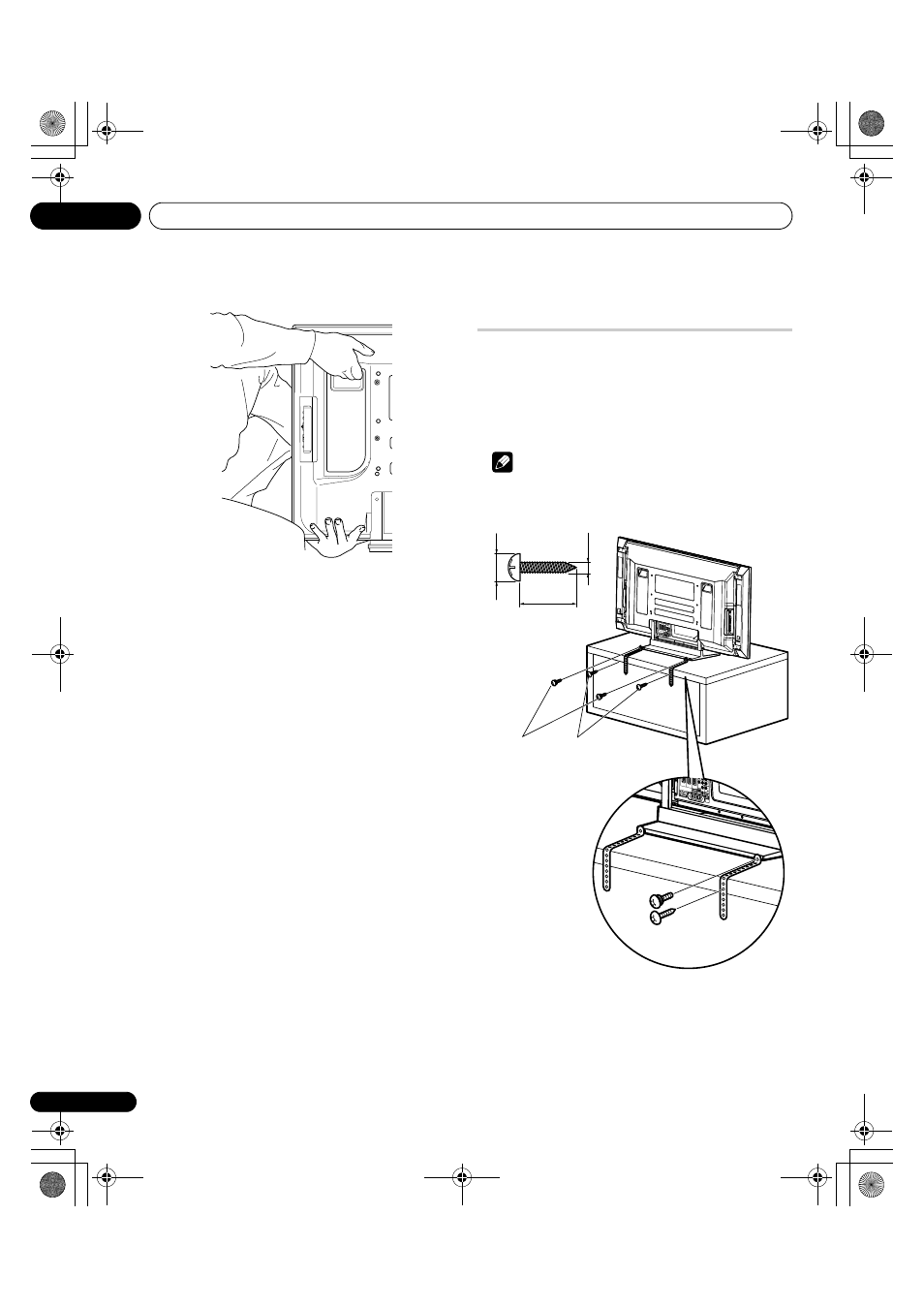

Stabilize the plasma television as shown in the diagram using the
plastic bands and screws supplied with the optional stand.
Note
• To stabilize the plasma television on a table or rack, also use
commercially available wood screws that have a nominal
diameter of 4 mm and that are at least 20 mm long.
Drill a hole in the middle at the rear of the tabletop panel before
using a wood screw. Perform this work the same way on the left and
right sides.
20 mm min.
4 mm
8 mm t
o 15 mm
Screw
(M4 x 10 mm) Wood screw
(commercially available,
4 mm x 20 mm min.)
Wood screw
Screw Screw Screw
