Component In Select setting (VSX-859RDS only)
This feature is only included on the VSX-859RDS. For most people this setting will not be necessary, if this is the
case for you go on to the next setup. If you hooked up equipment with component video you need to assign the
terminals for the devices you connected.

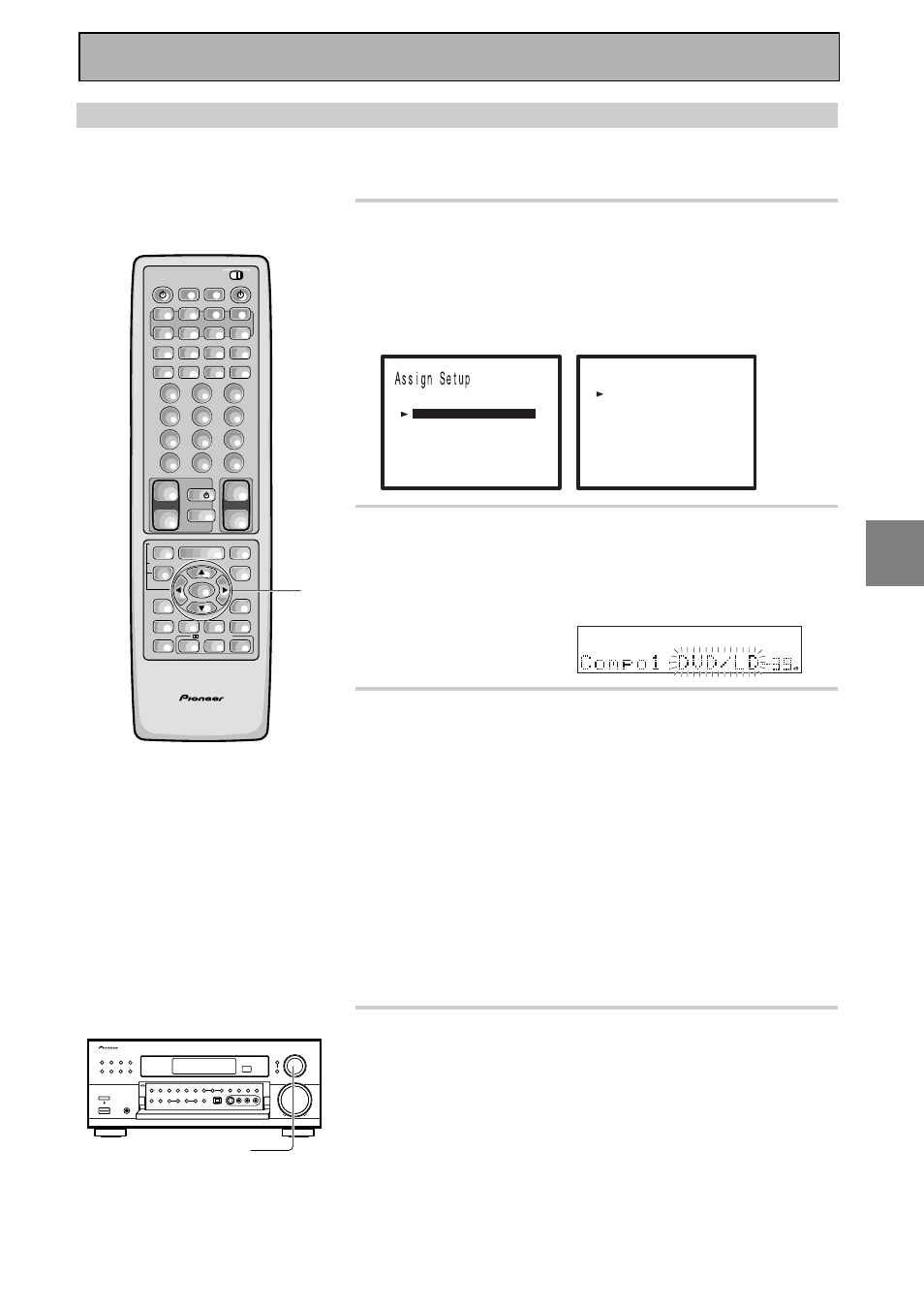

1 Select “Component In Select” using the
5¥∞ buttons (if continuing from the last set
up, it should already be selected).
See “Setting Up for Surround Sound“ on p. 30 – 31 if you need
more information.
Press the ENTER button.
2 Choose “Compo 1” or “Compo 2” using the
5/∞ buttons. To change the component
video function press ENTER and the
function will start to flash on the receiver's
display.
3 Use the
5/∞ buttons to choose the input
function that matches the component
hooked up to that terminal. Press ENTER
when you've matched the two. The receiver
will enter the information and automatically
go on to the next setting.
The possible choices include: DVD/LD, TV/SAT, VCR 1, VCR 2.
You cannot assign digital inputs to the TUNER, VIDEO, CD,
PHONO, CD-R/TAPE 1/MD, and TAPE 2 MONITOR functions.
If you assign a function (for example DVD/LD) that was previ-
ously assigned to a different Component In the second Compo-
nent In will automatically revert to an OFF setting. This is
because one function cannot be assigned twice.
4 When you’ve finished assigning component
ins select EXIT (“Comp In End” on the front
panel), if not already selected. Press ENTER
to move to the “Surround Set” set up.
If you want to change a setting before proceeding simply
use the arrow buttons (or MULTI JOG dial) to go back.
