Preparing the camera and
fl ow of operations
1
1

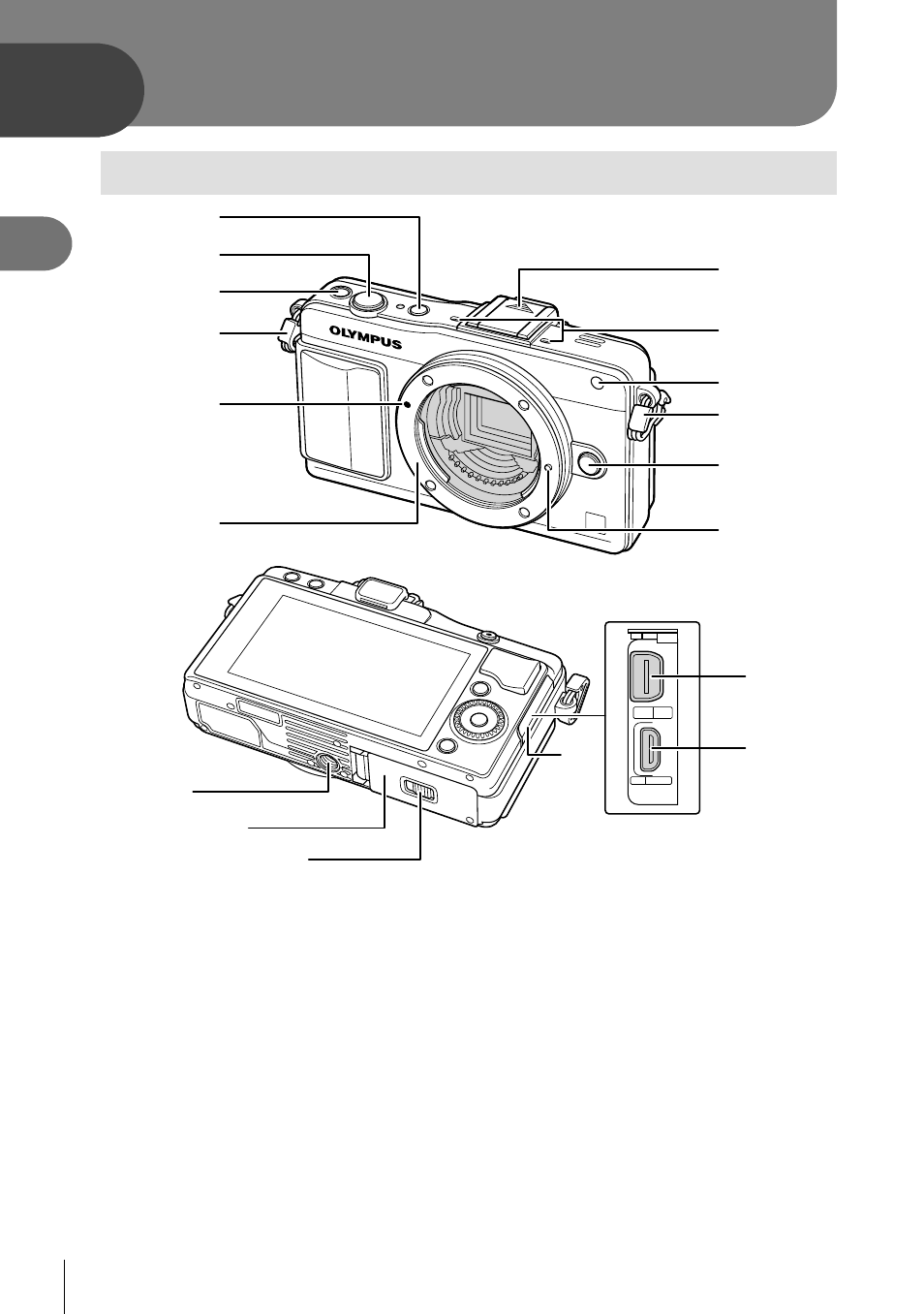

Names of parts
1
3
4
5
6
a
0
9
8
7
4
2
e
b
c
d
f
g
1 ON/OFF button ..............................P. 15
2 Shutter button ...........................P. 18, 23
3 LIVE GUIDE/Fn button ..........P. 31/P. 78
4 Strap eyelet.....................................P. 10
5 Lens attachment mark ....................P. 13
6 Mount (Remove the body cap before
attaching the lens.)
7 Hot shoe cover
8 Stereo microphone ...................P. 56, 67
9 Self-timer lamp/AF illuminator
...............................................P. 35/P. 71
0 Lens release button ........................P. 13
a Lens lock pin
b Tripod socket
c Battery/card compartment cover.....P. 11
d Battery/card compartment lock .......P. 11
e Connector cover
f Multi-connector ...................P. 80, 92, 95
g HDMI micro connector (type D) ......P. 80
