Operation
23 F232101
Located to the left of the computer keypad are 20 LED
indicator lights for the computer outputs. During the
time that a cycle is running, one or more of these lights will be on to indicate the outputs activated for a
particular step. Refer to Figure 7.

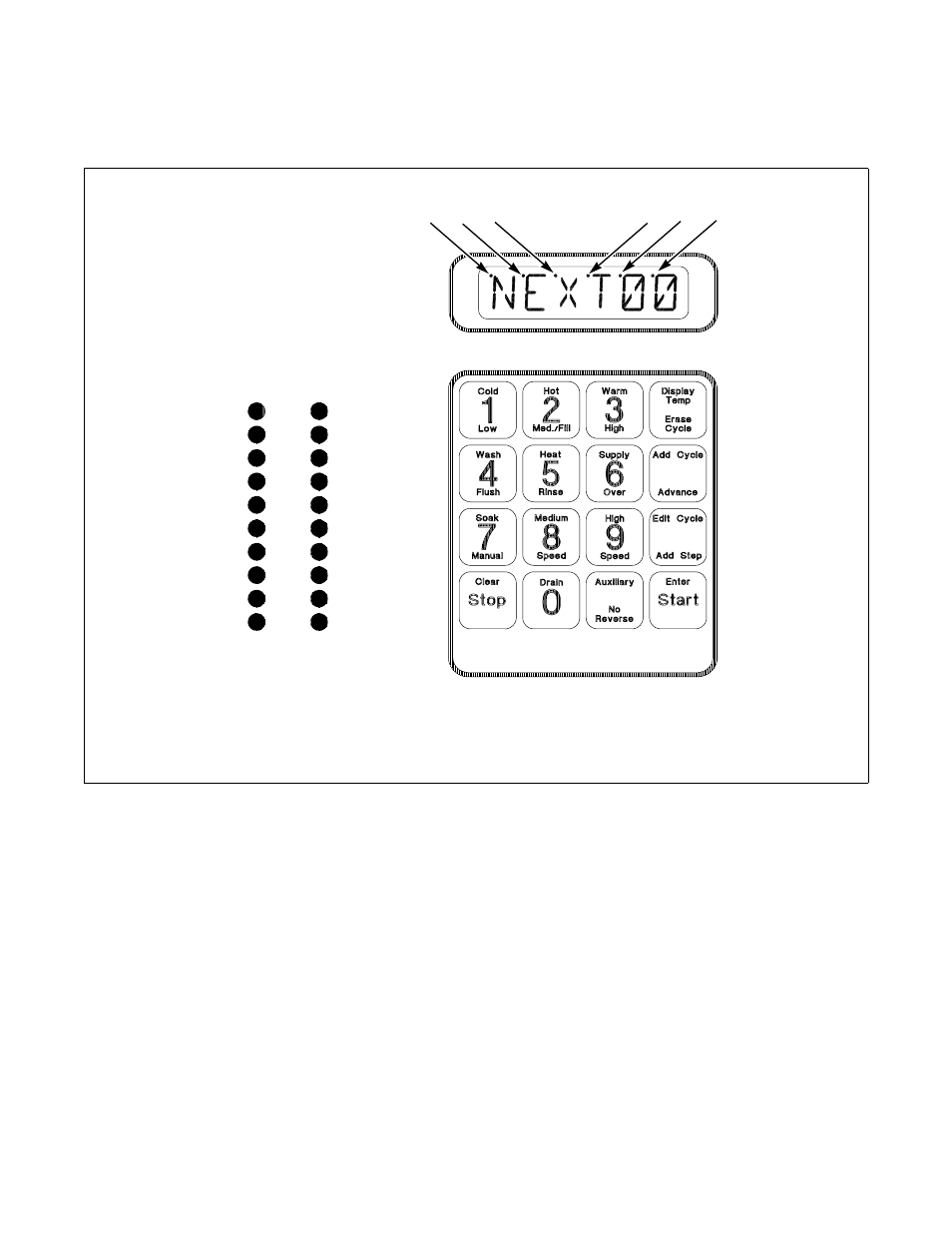

Figure 7
U152R
1 Balance Sensing Indicator 4 High Level Fill Indicator
2 Door Lock Switch 5 Medium Level Fill Indicator
3 Program Mode 6 Low Level Fill Indicator
Output Indicators
Supply 1
Supply 2
Supply 3
Supply 4
Supply 5
Cold Fill
Hot Fill
Spare
Spare
Signal
Heat
Forward
Reverse
Dist. Speed
Med. Speed
High Speed
Unlock Door
Drain Closed
Auxiliary 1
Auxiliary 2
U152R
1
2 3
4 5 6
