Operation
13 F232101

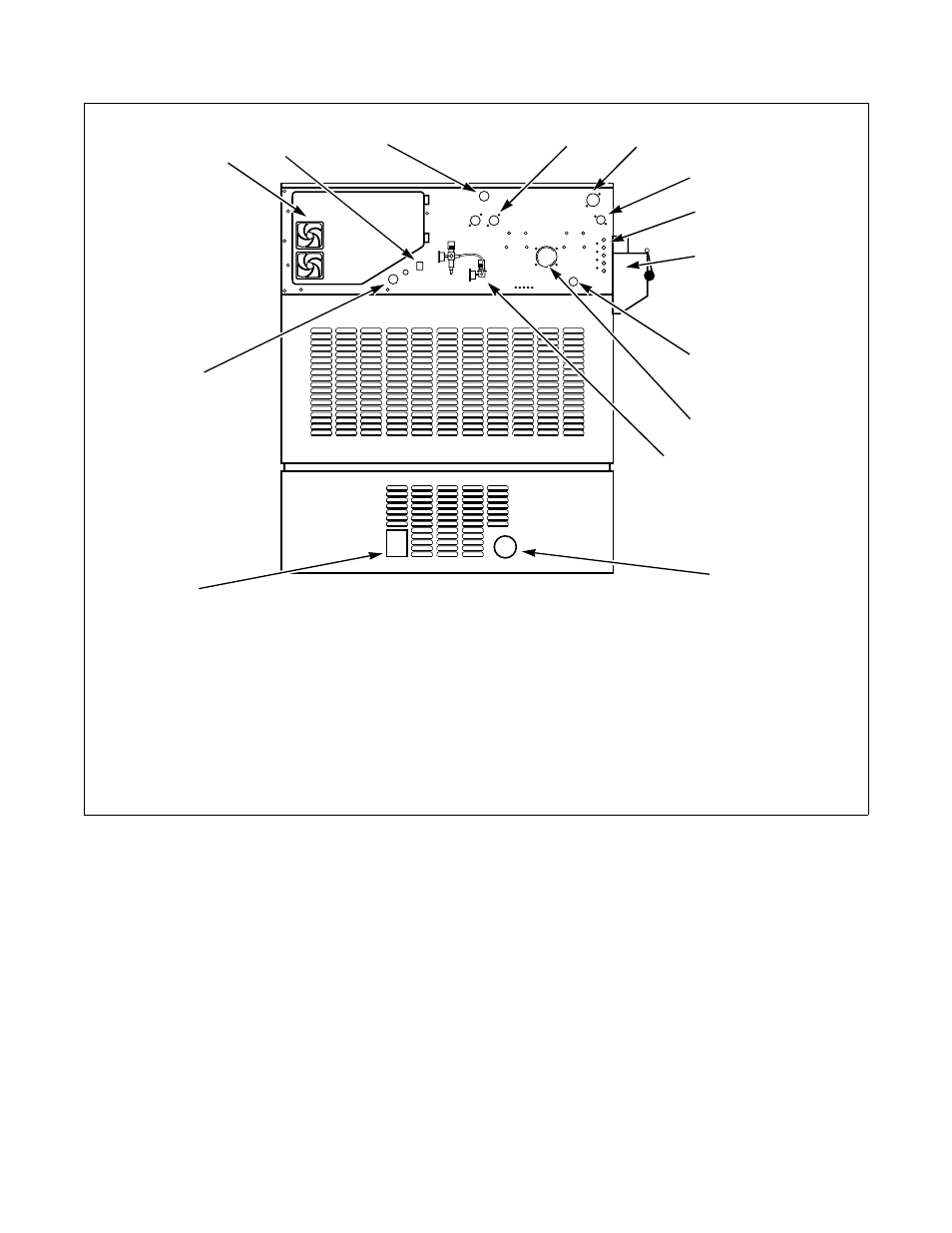

Figure 3
R078R
1 Cold Water Inlet 8 Air Inlet and Regulator
2 Vent 9 Standard Drain
3 Hot Water Inlet 10 Cover Plate for Optional Drain
4 Liquid Supply Connections 11 Power Input Cable Port
5 Supply Dispenser 12 Inverter Drive Cooling Fans
6 Steam Connection 13 Electric Heat/Steam Heat Switch
7 Vacuum Breaker 14 Wet Clean Recirculation Port
R078R 9
10
11
12
13
14 1 2
135-POUND CAPACITY REAR FAMILIARIZATION
3
4
5
6
7
8
