42 PPC-120/140 User's Manual
4.7 Installing the CD-ROM Drive
The compact CD-ROM drive used in the panel PC is not the common
5.25" CD-ROM drive seen in computer shops. It is the kind widely used
in notebook computers. Install the CD-ROM drive as follows:
1. Detach and remove the rear cover, side panel and CPU cover.
2. Fasten the retaining clip on the CD-ROM drive with the two screws.
3. Slide the slim CD-ROM drive into the CD-ROM slot. (See Fig. 4-6.)
4. Attach the two screws on the side panel of the CD-ROM slot.
5. Connect the 40-pin CD-ROM cable (which has a small converting
PCB at its end) to the CD-ROM drive. The other end of the cable is
connected to CD-ROM connector J9 on the motherboard.
6. Rotate the retaining spring, to secure the CD-ROM connector (with
converting PCB) in place.

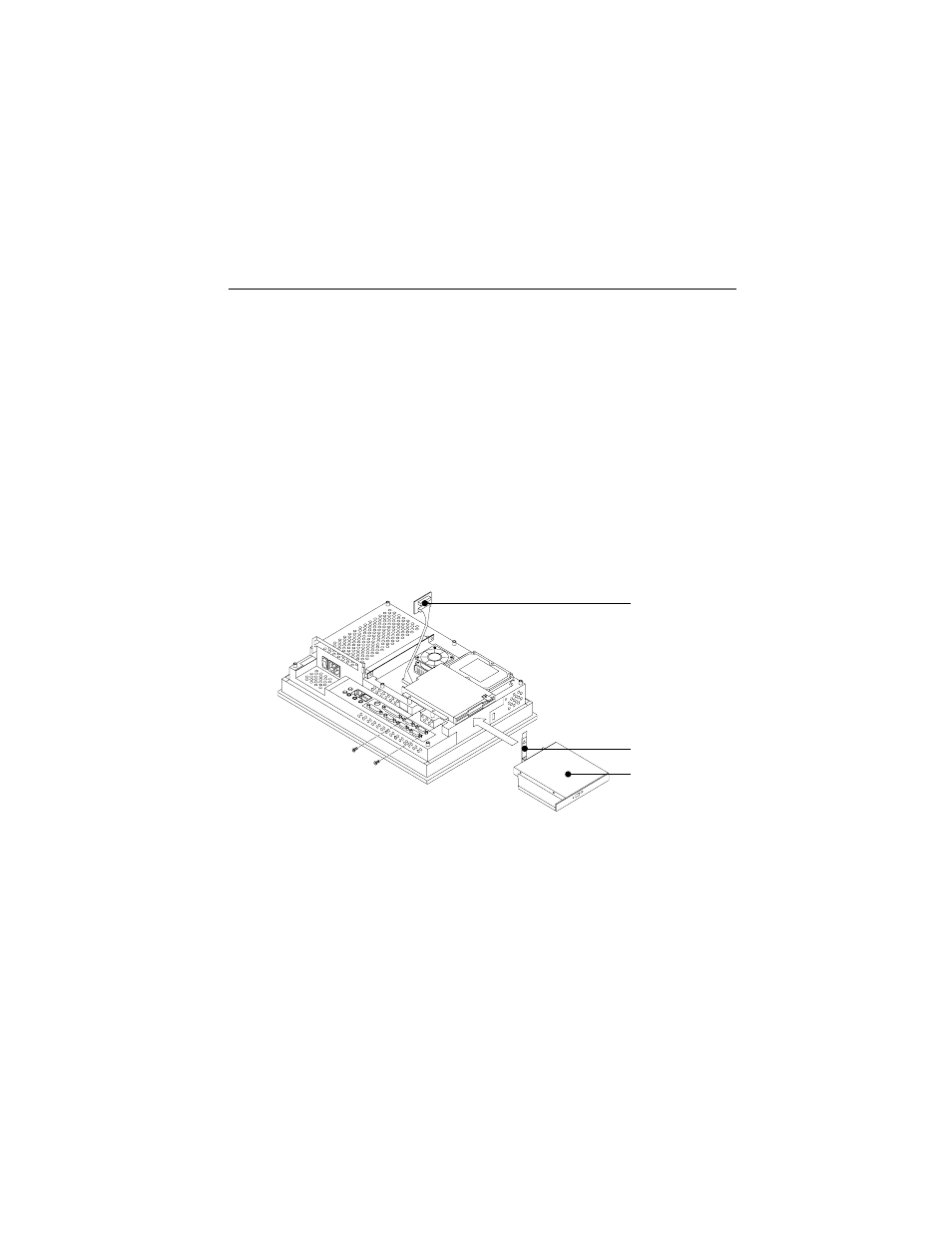

Figure 4-6: Installing the CD-ROM drive
CD-ROM
connector
Compact
CD-ROM drive
Retaining
spring
