156 PPC-120/140 User’s Manual

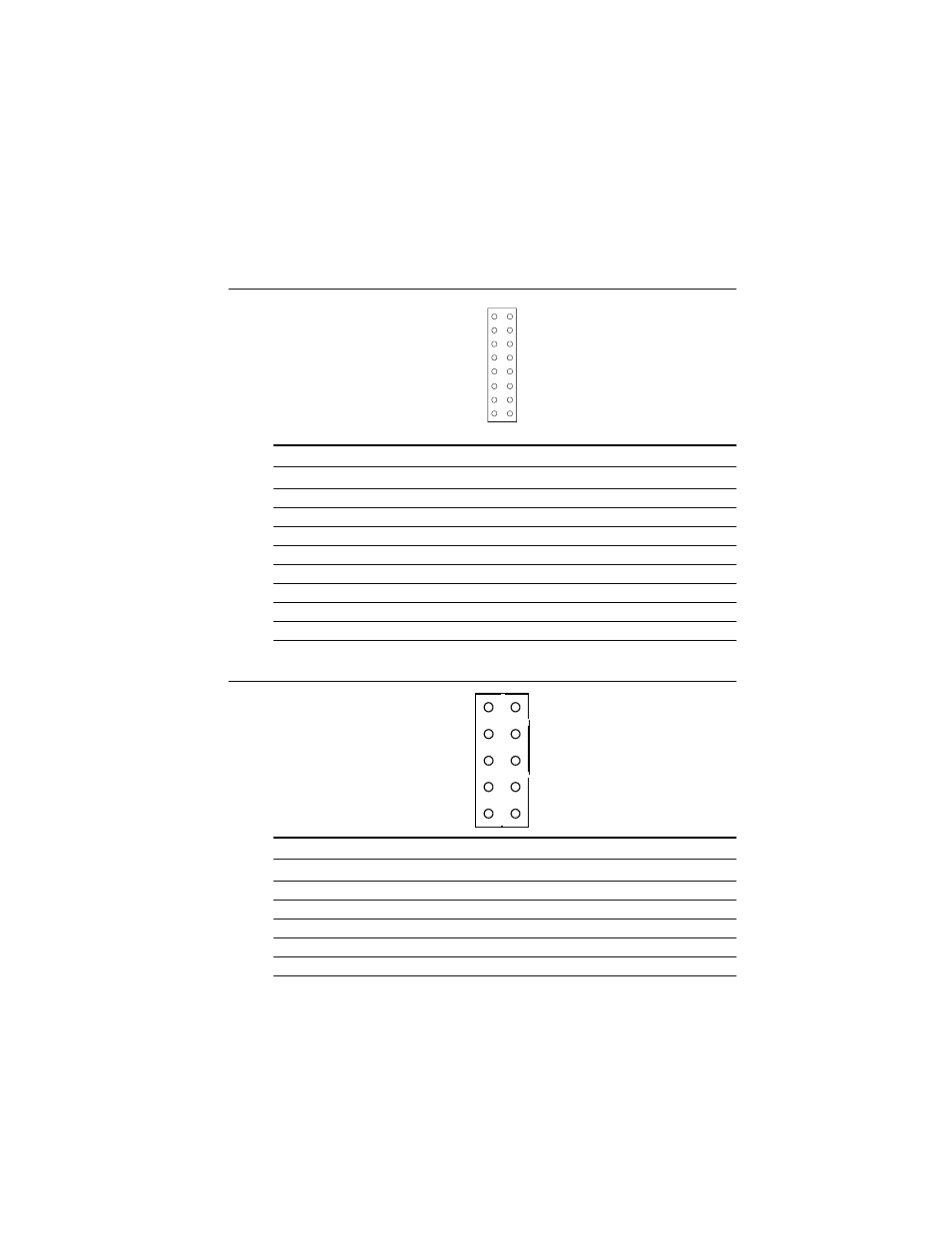

Flat Panel Display Connector (J3)
Table D-3: Flat Panel Display (J3)
Pin Signal Pin Signal
1 V
DD
SAFE 2 +5 V
3 P24 4 P25
5 P26 6 P27
7 P28 8 P29
9 P30 10 P31
11 P32 12 P33
13 P34 14 P35
15 GND 16 GND
Internal COM4 Connector (J4)
Table D-4: Internal COM4 Connector (J4)
Pin Signal Pin Signal
1 DCD 2 DSR
3 RX 4 RTS
5 TX 6 CTS
7 DTR 8 RI
9 GND 10 GND
16
14
12
10
8
6
4
2
15
13
11
9
7
5
3
1
1
3
5
7
9
2
4
6
8
10
