168 PPC-120/140 User’s Manual

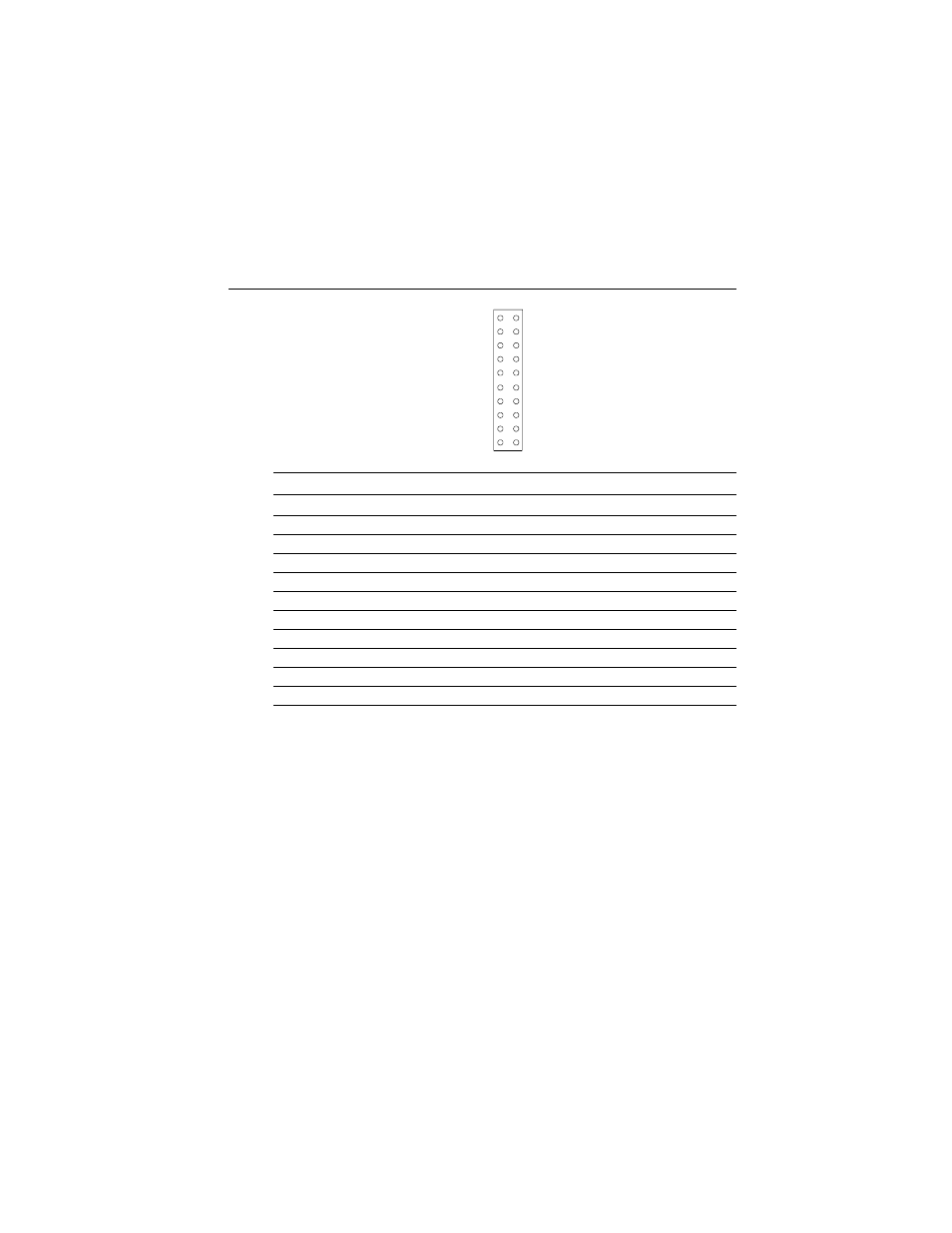

ATX Power Connector (J14) (*Reserved)
Table D-17: ATX Power Connector (J14)
Pin Signal Pin Signal
1 +3.3 V 11 +3.3 V
2 +3.3 V 12 -12 V
3 GND 13 GND
4 +5 V 14 PS -ON
5 GND 15 GND
6 +5 V 16 GND
7 GND 17 GND
8 NC 18 -5 V
9 5VSB 19 +5 V
10 +12 v 20 +5 V
* Reserved for future expansion. There is no connector on the PC
board.
10
9
8
7
6
5
4
3
2
1
20
19
18
17
16
15
14
13
12
11
