When you turn the panel PC around and look at its rear cover, you will
find the PCI/ISA expansion slot located on the left side. This slot is
covered by a side panel cover. The sunken I/O section is at the bottom of
the panel PC, as shown in Fig. 2-3. (The I/O section includes various I/O
ports, including serial ports, parallel port, the Ethernet port, USB ports,
the microphone jack, and so on.)

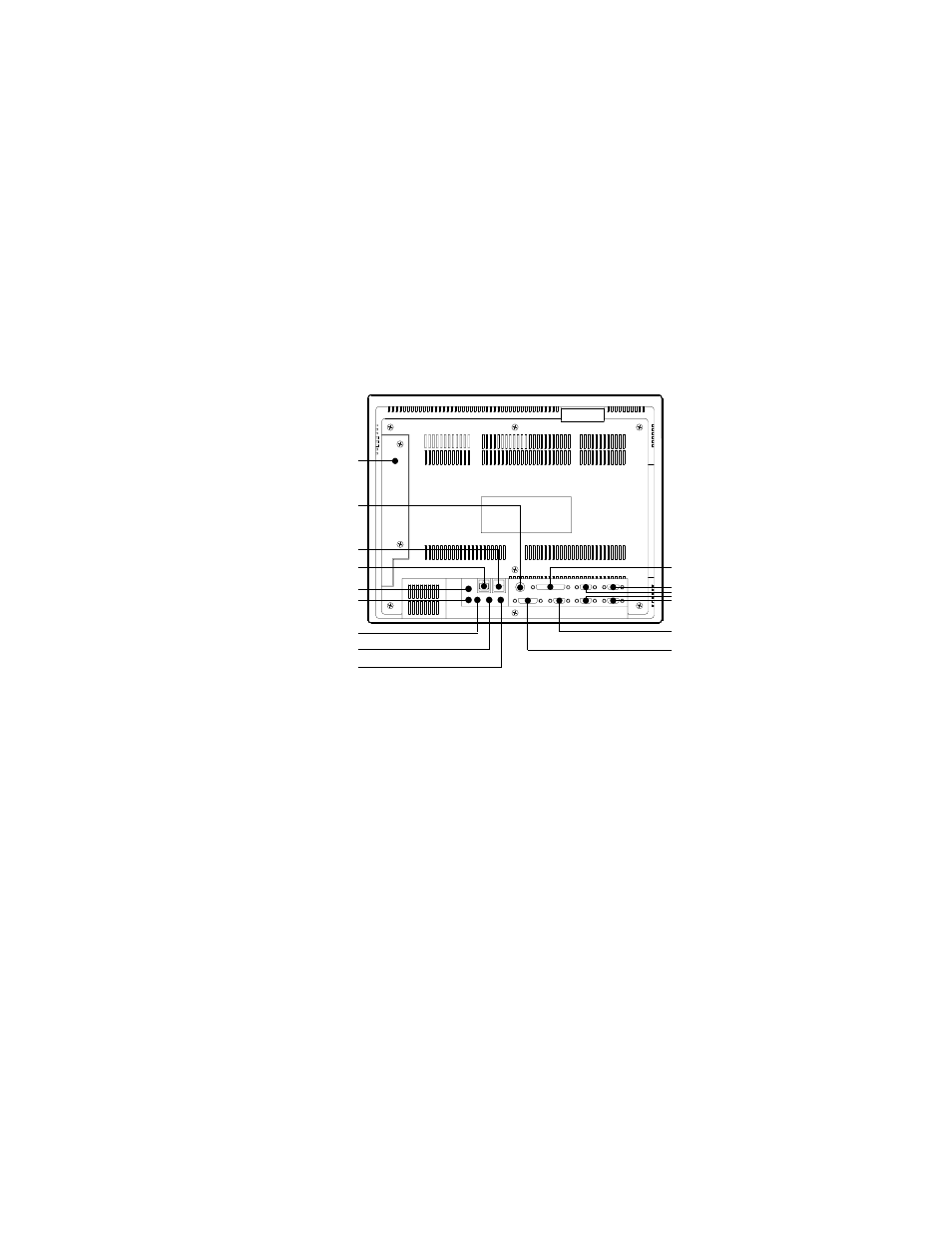

Figure 2-3: Rear view of the panel PC
PCI/ISA expansion
slot cover
PS/2 mouse and
keyboard connector
Ethernet jack
Contrast adjust knob
Lightness adjust knob
Line out jack
Line in jack Game port
Serial ports
Parallel port
VGA port
Microphone in jack
USB ports
