Asus P5AD2-E Deluxe User Manual

Page 51

A S U S P 5 A D 2 - E D e l u x e

2 - 2 9

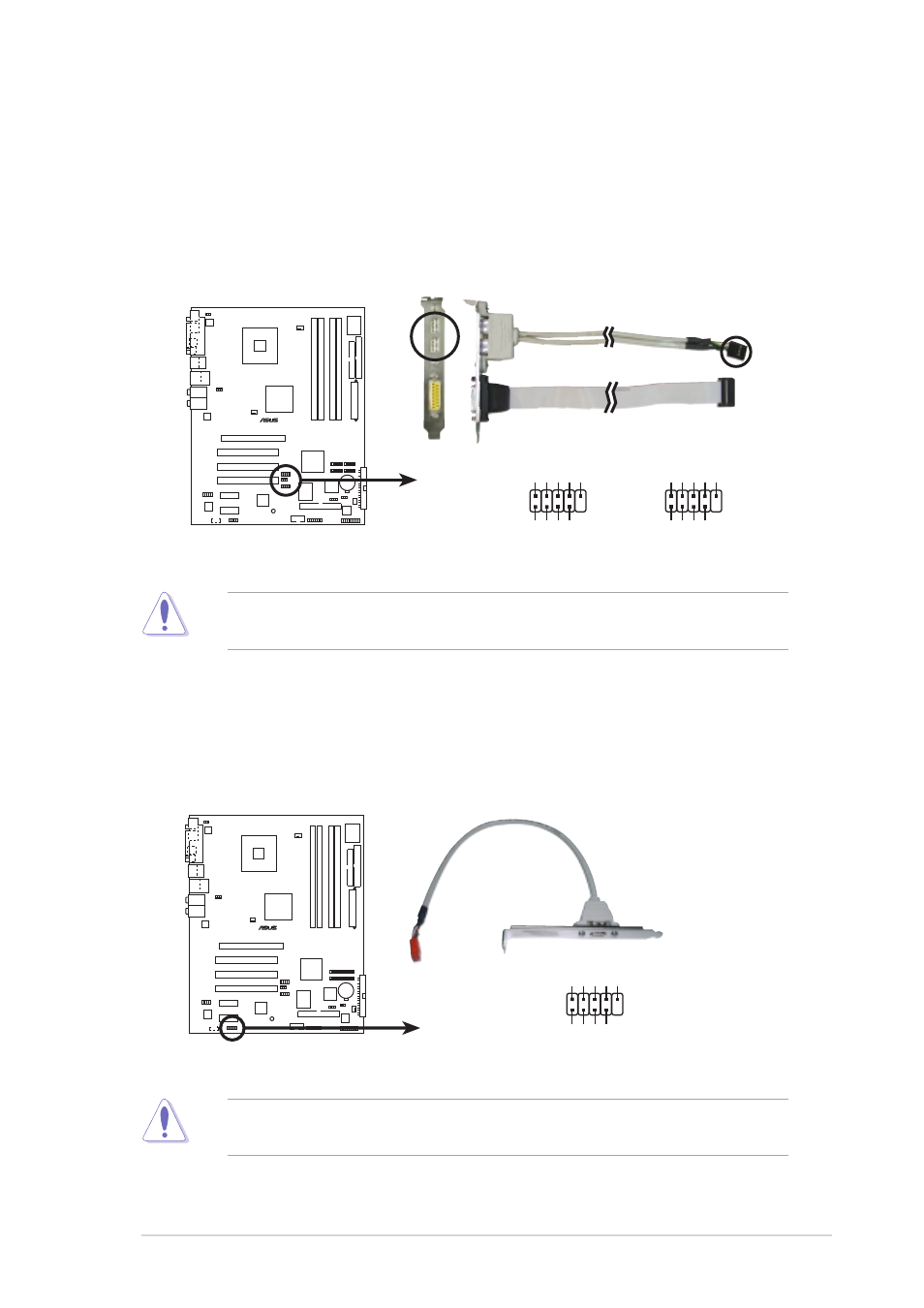

7 .

U S B c o n n e c t o r s ( 1 0 - 1 p i n U S B 5 6 , U S B 7 8 )

These connectors are for USB 2.0 ports. Connect the USB/GAME
module cable to any of these connectors, then install the module to a
slot opening at the back of the system chassis. These USB connectors
comply with USB 2.0 specification that supports up to 480 Mbps
connection speed.

Never connect a 1 3 9 4 c a b l e

1 3 9 4 c a b l e

1 3 9 4 c a b l e to the USB connectors. Doing so will

damage the motherboard!

P5AD2-E

DELUXE

P5AD2-E DELUXE USB 2.0 connectors

USB56

USB+5V

USB_P6-

USB_P6+

GND

USB+5V

USB_P5-

USB_P5+

GND

USB78

USB+5V

USB_P8-

USB_P8+

GND

USB+5V

USB_P7-

USB_P7+

GND

8 .

I E E E 1 3 9 4

I E E E 1 3 9 4a

aa port connector (10-1 pin IE1394_2 [orange])

port connector (10-1 pin IE1394_2 [orange])

This connector is for an additional IEEE 1394 port. Connect the IEEE
1394 module cable (orange) to this connector, then install the
module to a slot opening at the back of the system chassis.

Never connect a U S B p o r t m o d u l e c a b l e

U S B p o r t m o d u l e c a b l e

U S B p o r t m o d u l e c a b l e to the IEEE 1394

connector. Doing so will damage the motherboard!

P5AD2-E

DELUXE

P5AD2-E DELUXE IEEE 1394 connector

IE1394_2

A2-

GND

TPB2-

+12V

GND

A2+

GND

TPB2+

+12V
