CHAPTER 4
Using terminal commands
39

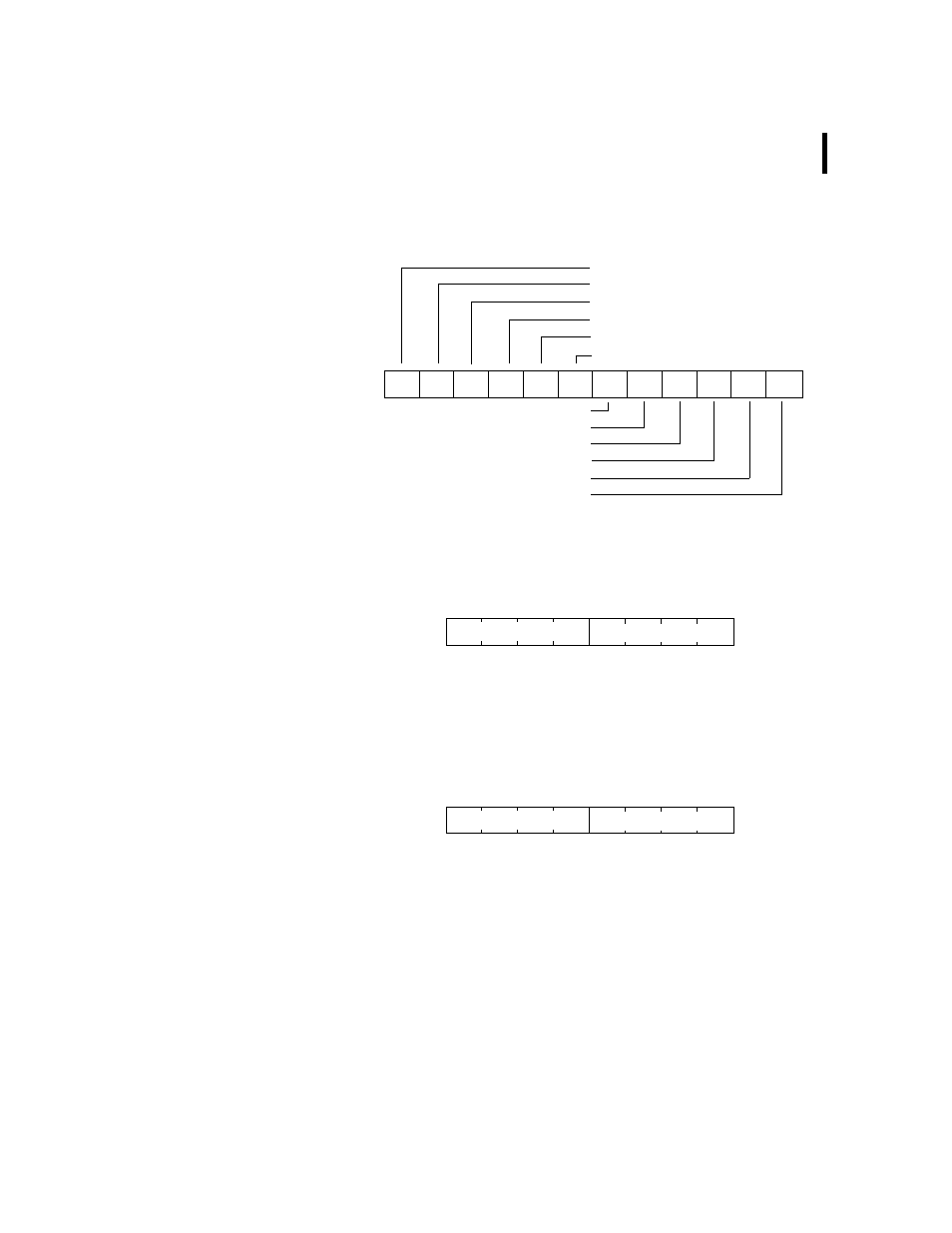

Figure 10. Frame 39 description
Figure 11. The Digibyte for an A720 device
Figure 12. The Digibyte for an A723 device
The remote version is limited to a single frame. An example of
such a command is given below:
6367 DATA 6367 30/4/1999 14:50:00
6367 DATA
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10 D11 D12
RF incoming
RF outgoing
Digibyte
Pulse Counter I/O A
Pulse Counter I/O B
Battery
Cabling 1 I/O A
Cabling 2 I/O A
Cabling 3 I/O A
Cabling 1 I/O B
Cabling 2 I/O B
Cabling 3 I/O B
b7
b0
SC
Res
U
U
Res
Res Dig A Dig B
SC — Battery charge (0–off, 1–on)
Res — Reserved
U — Undefined
Dig A — Digital I/O A
Dig B — Digital I/O B
b7
b0
SC
Dig 6 Dig 5 Dig 4 Dig 3 Dig 2 Dig 1 Dig 0
SC — Battery charge (0–off, 1–on)
Dig n — Digital I/O A...X
Note: Only Dig A and Dig B are wired externally
