ARTURIA – JUPITER-8V – USER’S MANUAL 87
7.5.3 Reverb
The reverb effect creates a very dense series of decaying echoes in the sound, simulating
the sound's performance within a three-dimensional space.
FEEDBACK Knob to set feedback time for the reverb
DAMPING Knob to set the rate at which high frequencies that are rolled off as the
reverb decays
DRY/WET Knob to set the balance between the original signal and the output of the
effect
OUTPUT Knob to set the output volume of the reverb
A visual interface shows the characteristics of the REVERB for convenient editing.
The “BYPASS” button allows deactivating the “REVERB” effect.

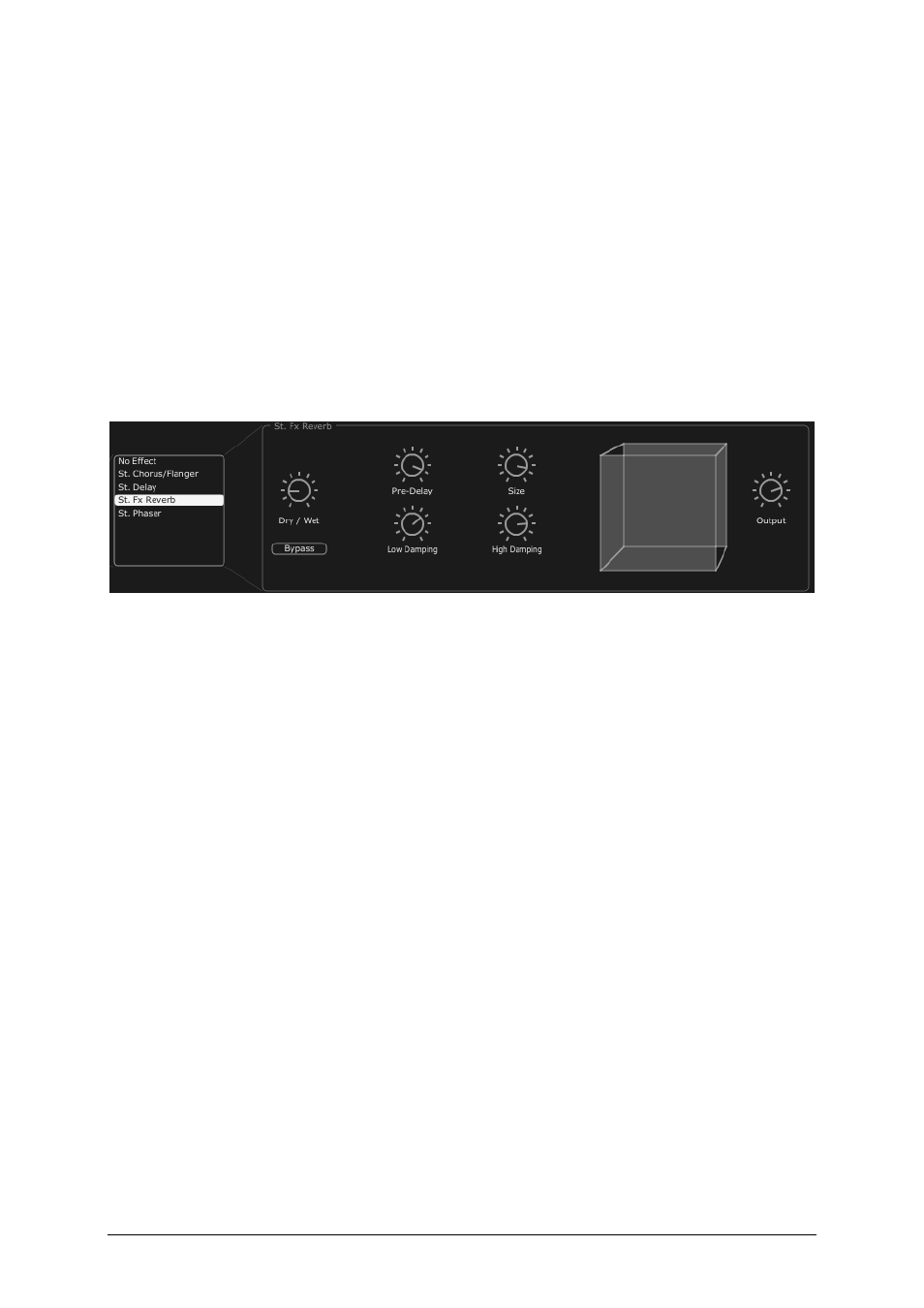

The Reverb effect
7.5.4 Dual Phaser
The Phaser unit provides a classic phasing sound similar to analog effects used in the
70's.
SWEEP
GENERATOR
1/2
Selection of the waveforms for the modulations of phasers 1 and 2:
•
Sin
• Square
• Saw
• Triangle
RATE 1/2 Knob to set the rate for Phaser 1 /2
DEPTH 1/2 Knob to set the depth of the modulation for Phaser 1/2
FEEDBACK 1/2 Knob to set feedback time for Phaser 1/2
DRY/WET Knob to set the balance between the original signal and the output of
the effect
OUTPUT Knob to set the output volume of the DUAL PHASER
SWEEP SYNC Button allows activating the synchronization of the two modulation
frequencies.
INVERT Button allows inverting the phase of the modulation frequencies
BYPASS Button allows deactivating the “DUAL PHASER” effect.
