ARTURIA – JUPITER-8V – USER’S MANUAL
28

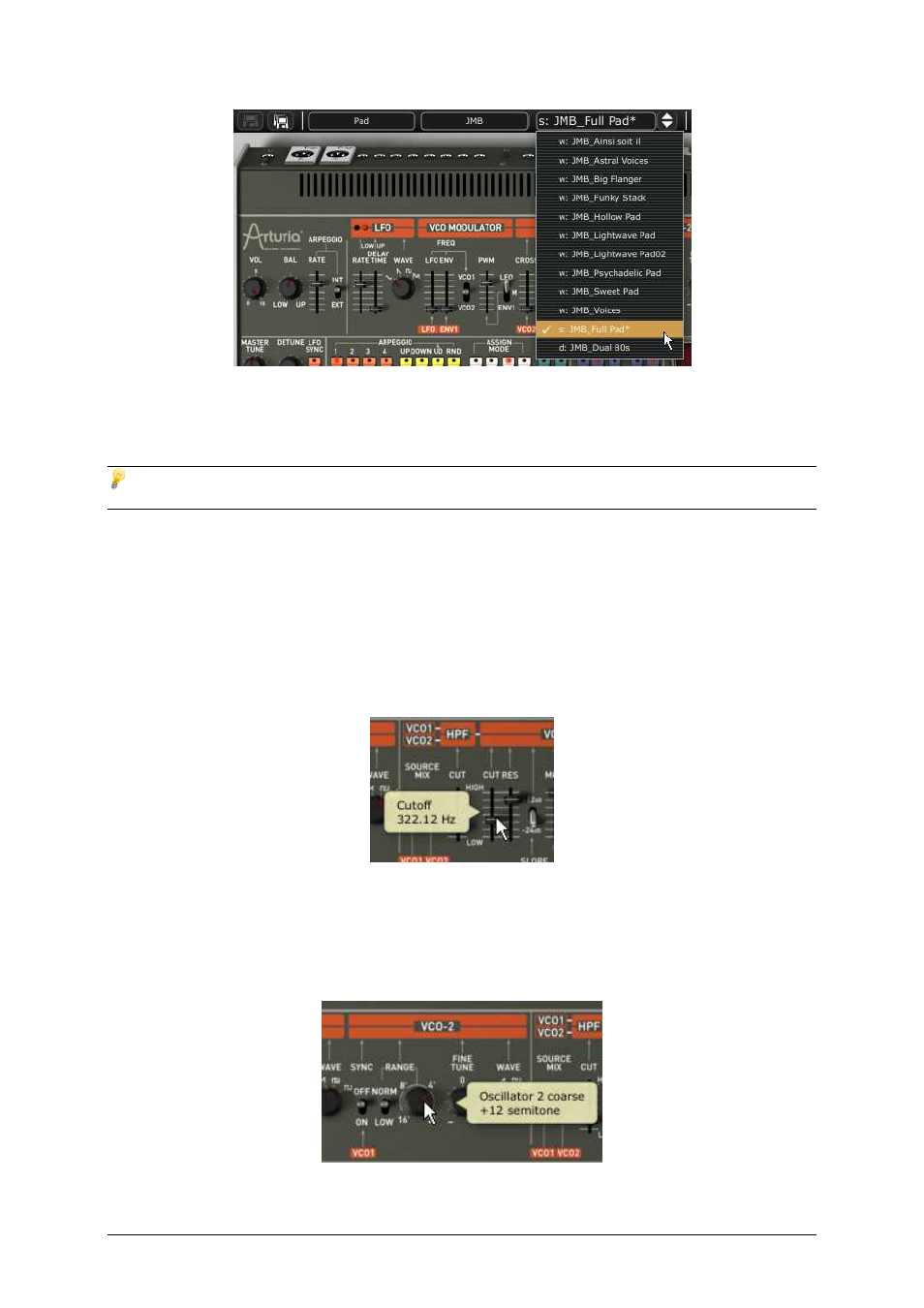

Choose a preset patch from the toolbar
The Jupiter-8V is delivered with 400 factory presets that will allow you to become
familiarized with the tones of the synthesizer.
It is also possible to show all the presets when choosing the option “All” in the bank. For example, to see the
bass presets, click on “All” in the selection of the bank and then click on “Bass”.
4.2.2 Editing the presets
To begin, we will start with a very simple manipulation.
Modify the brightness of the sound “Full_Pad” with the “CUT” slider (VCF for Voltage
Controlled Filter). To do this, push or pull the slider. The timbre of the sound will
become more or less “brilliant”. Tune this slider to your liking.
Change the brightness of the sound
In the same way, you can increase the range of oscillator 2 (VCO2 for Voltage
Controlled Oscillator) by an octave with the knob “RANGE”. Choose a value of “4'”.
Tuning the second oscillator
