ARTURIA – JUPITER-8V – USER’S MANUAL
72
LFO
M
ENV1
Selector to choose either a manual setting (via the fader), LFO or
envelope 1 as a source for the pulse width modulation.

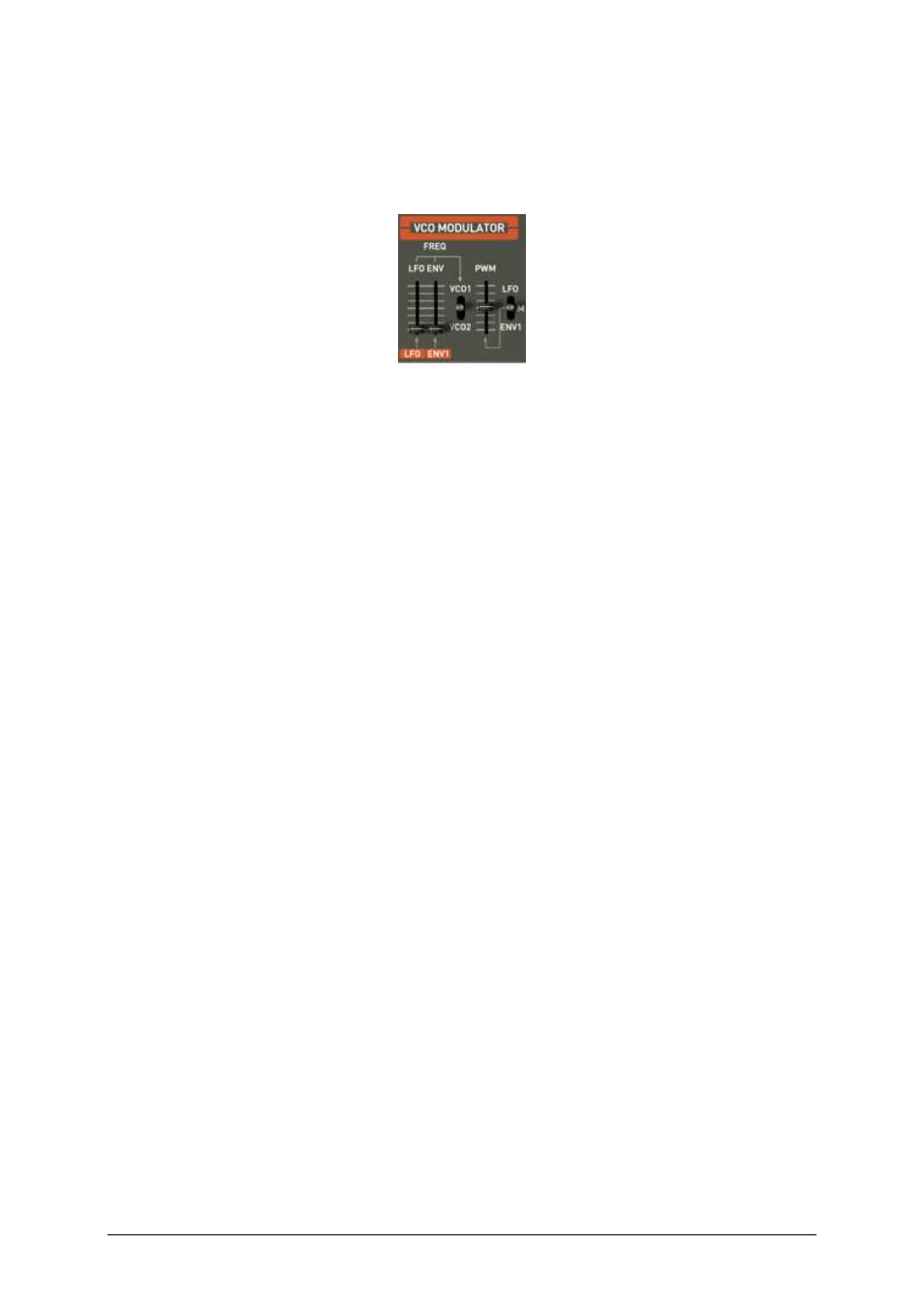

The VCO modulator section
7.1.8 The LFO MODULATION, PORTAMENTO and BEND section
The “LFO MOD” section shows the parameters that can be modulated by the LFO. There
is a white button to activate the LFO. When it is pressed, the modulation is activated.
When it is raised, the modulation stops.
LFO MOD RISE Knob to set the triggering time of the LFO.
LFO MOD Chooses the destinations that can be modulated by the LFO:
•
ON / OFF switch (« VCO »)
•
ON / OFF switch (« VCF »)
VCO level Slider to set the level of modulation from the LFO to the VCO
VCF level Slider to set the level of modulation from LFO to the VCF
BEND Selectors of the destinations that can be modulated by the PITCH
BEND
•
ON / OFF switch (« VCO 1»)
•
ON / OFF switch (« VCO 2»)
•
ON / OFF switch (« VCF »)
VCO level Slider to set the intensity of the BEND modulation affecting the VCO
(From 0 To +24 semi-tones / – 24 semi-tones).
VCF level Slider to set the intensity level of the BEND modulation affecting the
VCF.
BENDER Pitch bender (movement towards the left: the tuning is diminished;
movement towards the right, the tuning of the oscillators is
increased)
PORTAMENTO
level
Slider to set the level of portamento.
PORTAMENTO
select
Switch to use the portamento:
•
Connection Section UPPER (« UPPER ONLY»)
•
Connection PORTAMENTO OFF
•
Connection Sections LOWER et UPPER (« ON »)
