ARTURIA – JUPITER-8V – USER’S MANUAL 85
• ENVELOPE 2
• GALAXY Y
• GALAXY X
• LFO
• SEQUENCER
The “BYPASS” button allows deactivating the RING MOD effect.

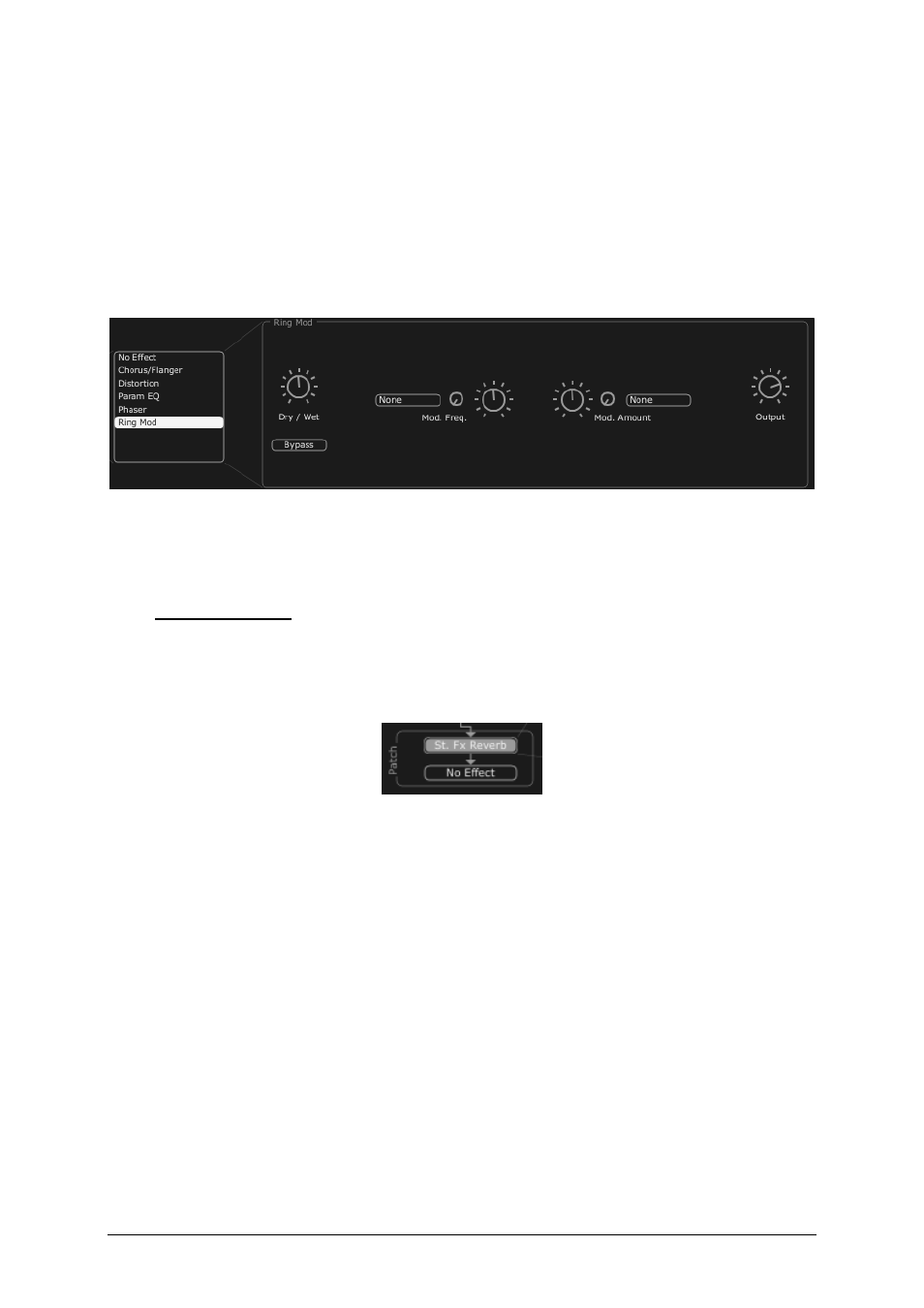

Ring Mod
7.5 P ATCH E FFECTS
Two “PATCH” effect modules are available on the end of the synthesis chain. The two
modules are placed after the output of the VCA, and cannot receive external
modulations.
Patch effect connections
7.5.1 Chorus/Flanger
The stereo Chorus/Flanger module adds thickness and width to the sound. This effect is
often used to create string pads for example (the “Ensemble” effect of old analog
synthesizers)
RATE Knob to set the frequency of the chorus
DEPTH Knob to set the depth of the modulation
FEEDBACK Knob to set the feedback of the modulation, to achieve more of a flanged
effect
AMOUNT Knob to set the depth of the modulation
DRY/WET Knob to set the balance between the original signal and the output of the
effect
OUTPUT Knob to set the output volume of the chorus
