4.

Remove

the

failing

hard

disk

drive

from

the

bracket

by

flexing

the

bracket.

5.

Install

the

new

drive

into

the

bracket,

flex

the

bracket,

and

align

the

pins

1

through

4

on

the

bracket

with

the

holes

in

the

hard

disk

drive.

See

Do

not

touch

the

circuit

board

5

on

the

bottom

of

the

hard

disk

drive.

6.

Install

the

hard

disk

drive

and

bracket

into

the

drive

bay.

7.

Connect

the

signal

and

power

cables

to

the

rear

of

the

new

hard

disk

drive.

8.

Go

to

replacement,”

Figure

20.

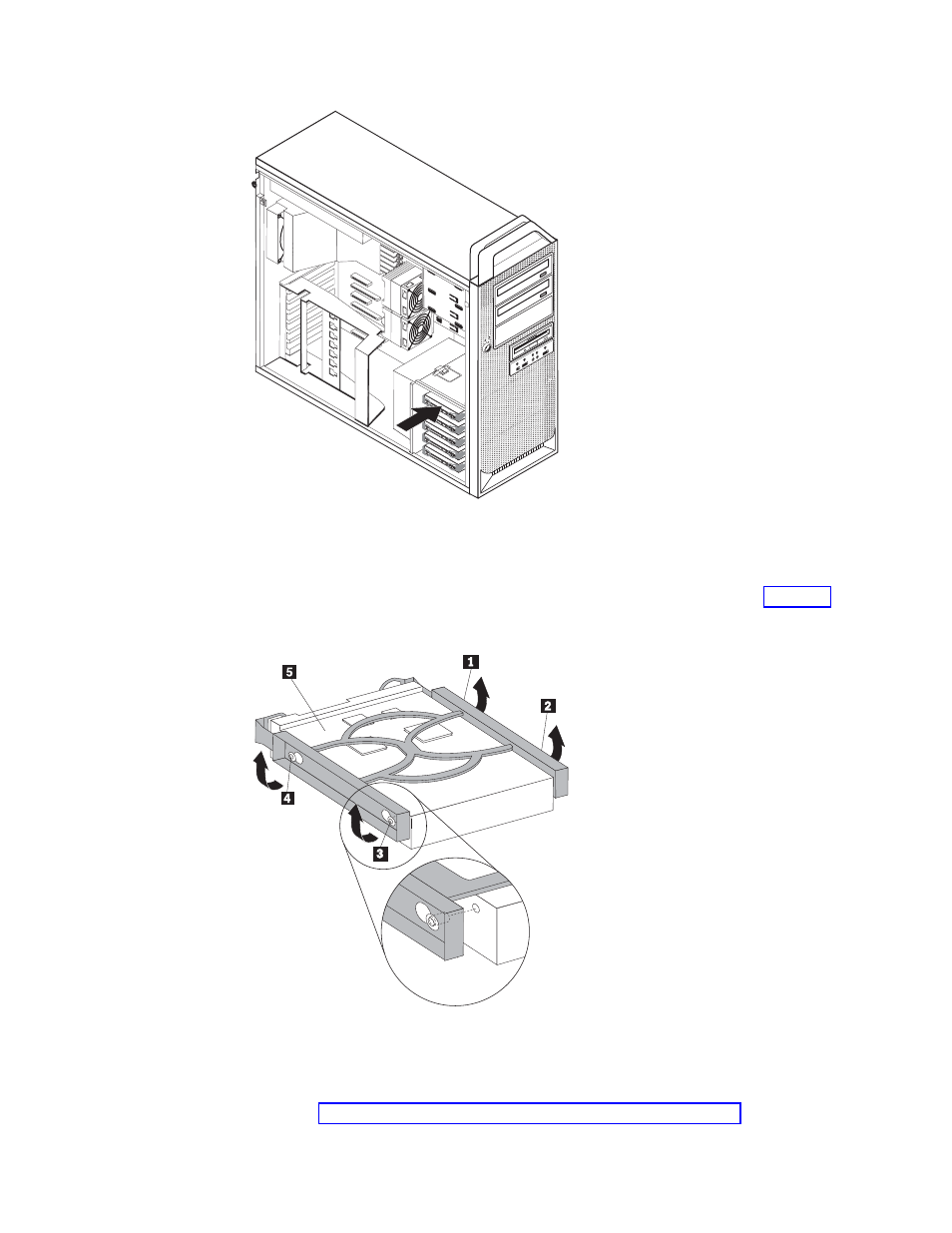

Removing

the

hard

disk

drive

Figure

21.

Removing

the

hard

disk

drive

from

the

bracket
