Replacing

the

power

supply

assembly

Attention

Do

not

open

your

computer

or

attempt

any

repair

before

reading

the

“Important

safety

information”

in

the

Safety

and

Warranty

Guide

that

was

included

with

your

computer.

To

obtain

a

copy

of

the

Safety

and

Warranty

Guide,

go

to

the

Support

Web

site

at

http://www.lenovo.com/support.

To

replace

the

power-supply

assembly:

1.

Open

the

computer

cover.

See

2.

Locate

the

power-supply

assembly.

See

3.

Disconnect

the

power-supply

cables

1 ,

2 and

3

from

the

system-board

connectors,

graphics

cards,

and

from

all

drives.

See

4.

Remove

the

power-supply

cables

from

the

cable

clips

and

ties.

5.

Disconnect

the

heat

sink

fan

cable.

6.

Remove

the

microprocessor

heat

sink

(see

nearest

the

power

supply

before

removing

the

power

supply

from

the

chassis.

7.

Remove

the

four

screws

at

the

rear

of

the

chassis

that

secure

the

power

supply.

See

Figure

14.

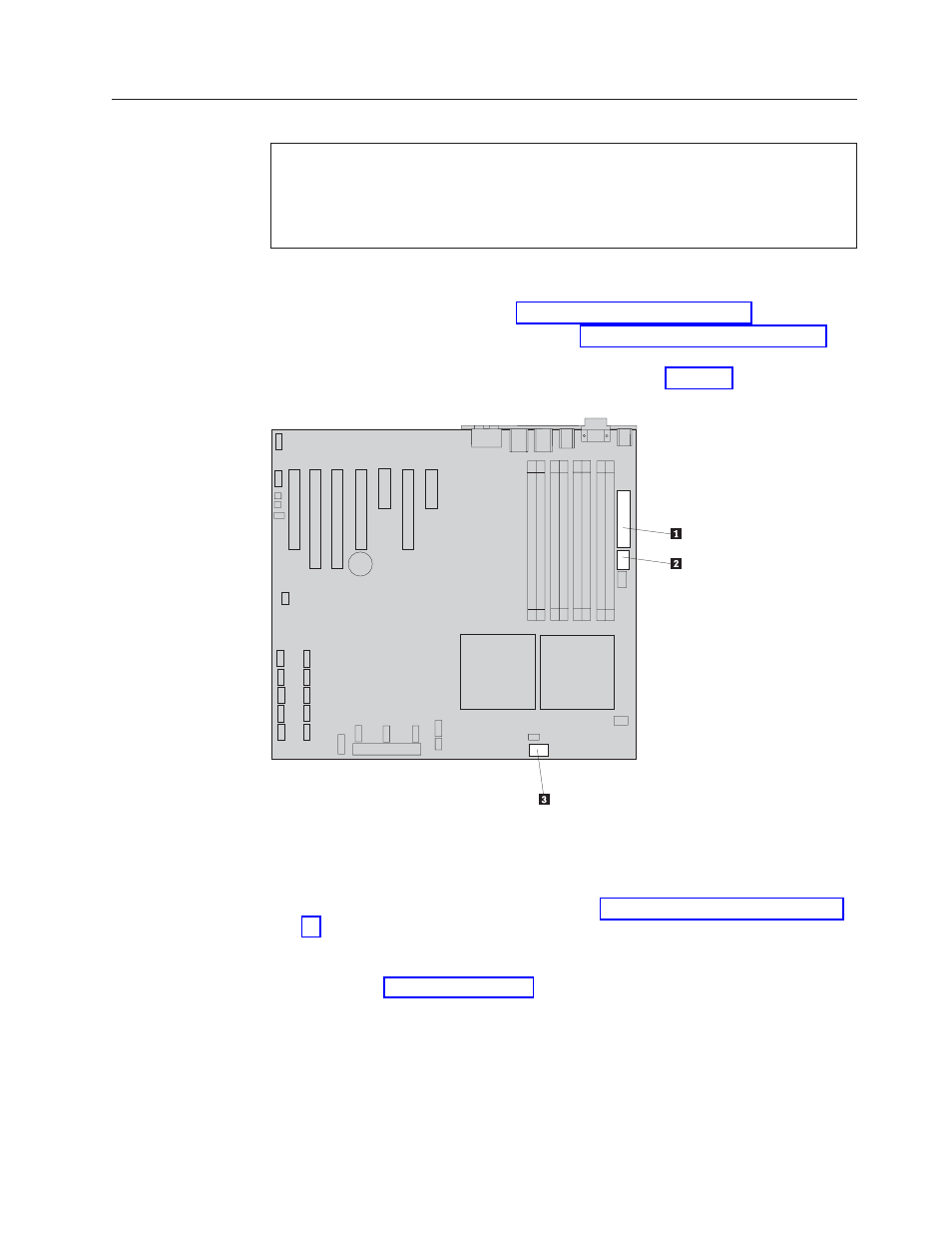

System-board

connectors

Chapter

3.

Installing

options

and

replacing

hardware

23
